Alead BTMIC2 User Manual

Bluetooth wireless microphone
Hide thumbs

Advertisement

Table of Contents

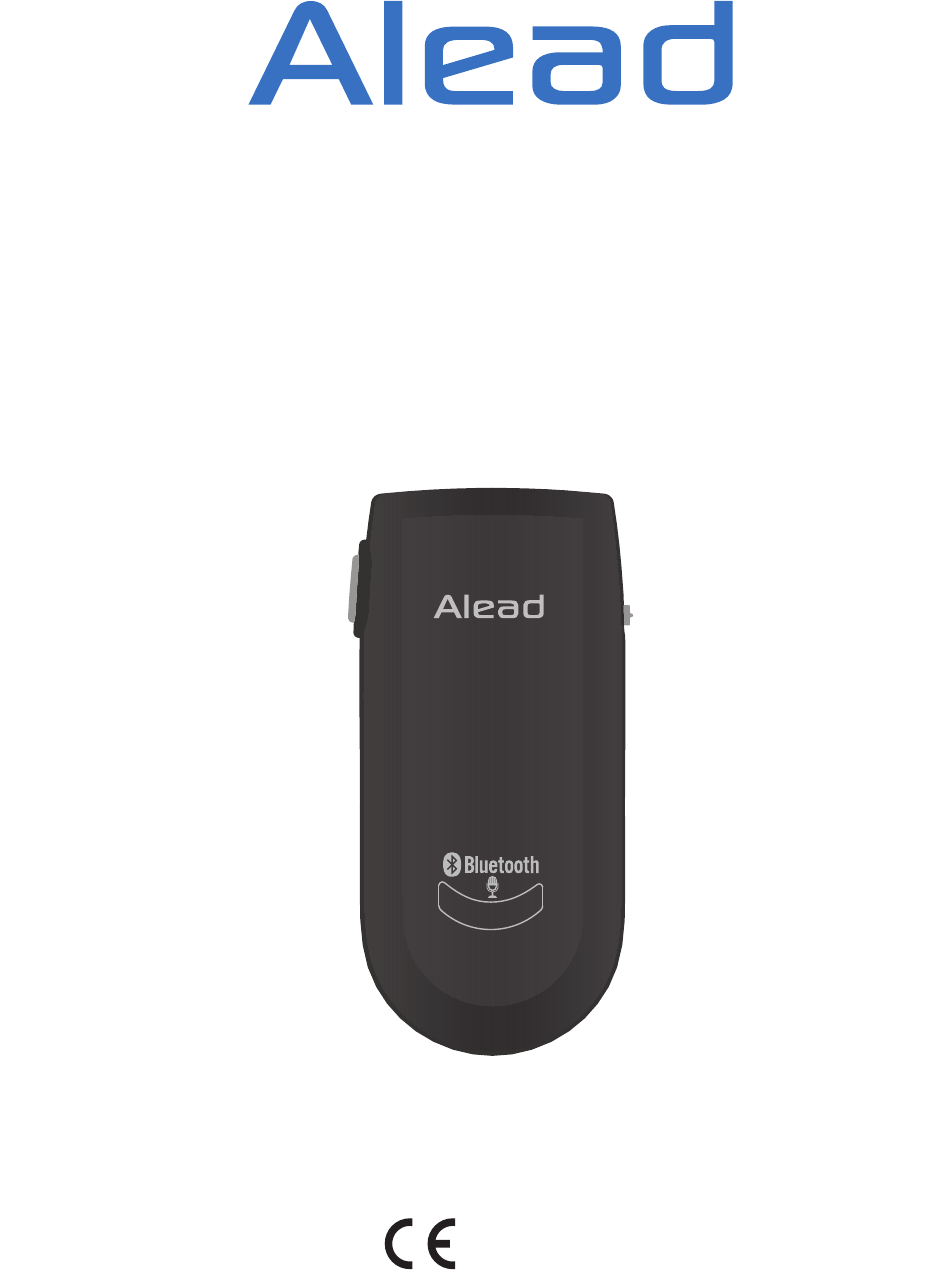

BTMIC2
BLUETOOTH
WIRELESS MICROPHONE
P/N AMBM5C2XXX

USER GUIDE

M I C
R O PH O N E
Declaration
of
Conformity.
We
declare
that
product
AMBM5C2XXX conforms to the R&TTE Directive 1999/5/RC.
FCC ID:TNZNSRX3C2XXX
0678

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTMIC2 and is the answer not in the manual?

Questions and answers

Related Manuals for Alead BTMIC2

Summary of Contents for Alead BTMIC2

  • Page 1: User Guide

    BTMIC2 BLUETOOTH WIRELESS MICROPHONE P/N AMBM5C2XXX USER GUIDE M I C R O PH O N E Declaration Conformity. declare that product AMBM5C2XXX conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRX3C2XXX 0678...

  • Page 2: Getting Started

    INTRODUCTION The Bluetooth Wireless Microphone allows capturing the source of audio wirelessly and freely. Users can listen, capture or record the audio/voice of subject with clarity sound from Bluetooth wireless microphone. ※ Compatible stereo Bluetooth devices must support the Bluetooth profiles known as A2DP, Headset and Handfree profiles.

  • Page 3: Product Overview

    PRODUCT OVERVIEW See image below. Please note some models of microphone will differ slightly in style, colour and the functionality may be vary according to their specifications. A/B Mode Switch USB Charging Connector Clipper On/Off /Volume Button CHARGING Before using the microphone, you must charge it for approximately 2 hours.
  • Page 4 Plug charging cable into microphone mini USB connector. Plug the other side of the USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off or dim.
  • Page 5 TURN ON AND PARING Type A and Type B pairing modes supporting: Microphone can work with 2 different types of devices. Type A: Audio receivers, speakers, PA systems and headphones Type B: iPhones, iPads, android phones, smartphones, tablets, PC, laptop and Mac. Those will indicate with different LED lighting during pairing.
  • Page 6 Turn on your Microphone into pairing mode Press and hold the ON/OFF button about 2 seconds, the blue will solid light for about 1 second, then release the button. Microphone will be turned on and enter current type A or B pairing mode automatically.
  • Page 7 Type A: To pair with an A2DP enabled Bluetooth audio receivers, speakers, PA systems, hearing aid or headphones 1. Turn on the Microphone and into type A pairing mode. 2. After the Microphone is in pairing mode, initiate pairing feature on the audio receiver.
  • Page 8 Mac and PCs…etc Turn on the Microphone and into type B pairing mode. For iPhone/iPad/Smartphone 1. Initiate Bluetooth search feature and find the device name “BTMIC2”. If pin code requested during pairing, please submit the pin code 0000. AT&T 10:08 AM...
  • Page 9 The laptop/PC will install headset/handfree profile during pairing stage automatically. If the bluetooth driver does not have it, please download or get it from your Bluetooth hardware supplier. 2. Select BTMIC2 as your default audio input device at “Sound” under Control Panel.
  • Page 10 Live MIC2(00:15:71:13:b5) Bluetooth Operations Add a Bluetooth device Show Bluetooth devices FRYS BT MIC2 Open Bluetooth settings (This Computer) (Remote Deviec) Open Bluetooth folder View remote device information BT MIC2 Device Type: Audio headset Show file transfer dialog View Device Properties Singal Strength: Audio Services To use remote device’s speaker to listen to Audio from this PC...
  • Page 11 Auto-reconnect to the Microphone Once Microphone is paired with your Bluetooth device, you just need to turn on the Microphone and your Bluetooth device in the later using, and they will connect to each other automatically. If they were failed to connect due to any reason, please repeat the pair/connect procedure again.

  • Page 12: Adjusting Audio Volume

    ADJUSTING AUDIO VOLUME At the type A mode, you can adjust the microphone audio volume by press the button. To increase the audio volume While talking, click the ON/OFF button once to increase the volume by one step. Repeat this procedure until you reach the desired level.

  • Page 13: Visual Indication

    VISUAL INDICATION The POWER/MODE/ LED can also indicate the status of microphone working statues. Statues Indication Charging amber LED is On Low speed flash, approx. every 5 Not Connected seconds Medium speed Connected flash, approx. every 2 seconds blue LED flashes Pairing mode with alone after power on...

  • Page 14: Troubleshooting

    TROUBLESHOOTING Please note that you should also be familiar with the operation of your audio receiver, mobile phone other connecting Bluetooth device. Please read the User Guide for your device carefully. For opera- tion with a PC or laptop please note that these devices should also be Bluetooth enabled with appropriate Bluetooth profiles in order to enable correct operation.
  • Page 15 Cannot pair with Type B pairing mode iPhone, iPad, Mac, with blue and amber PC...etc light flashing CUSTOMER SERVICE INFORMATION For other Alead Bluetooth products or support, please view our website – www.aleadinc.com or email info@aleadinc.com or contact your local representative.
  • Page 16 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. The manufacturer reserves the right to make changes and improvements to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
