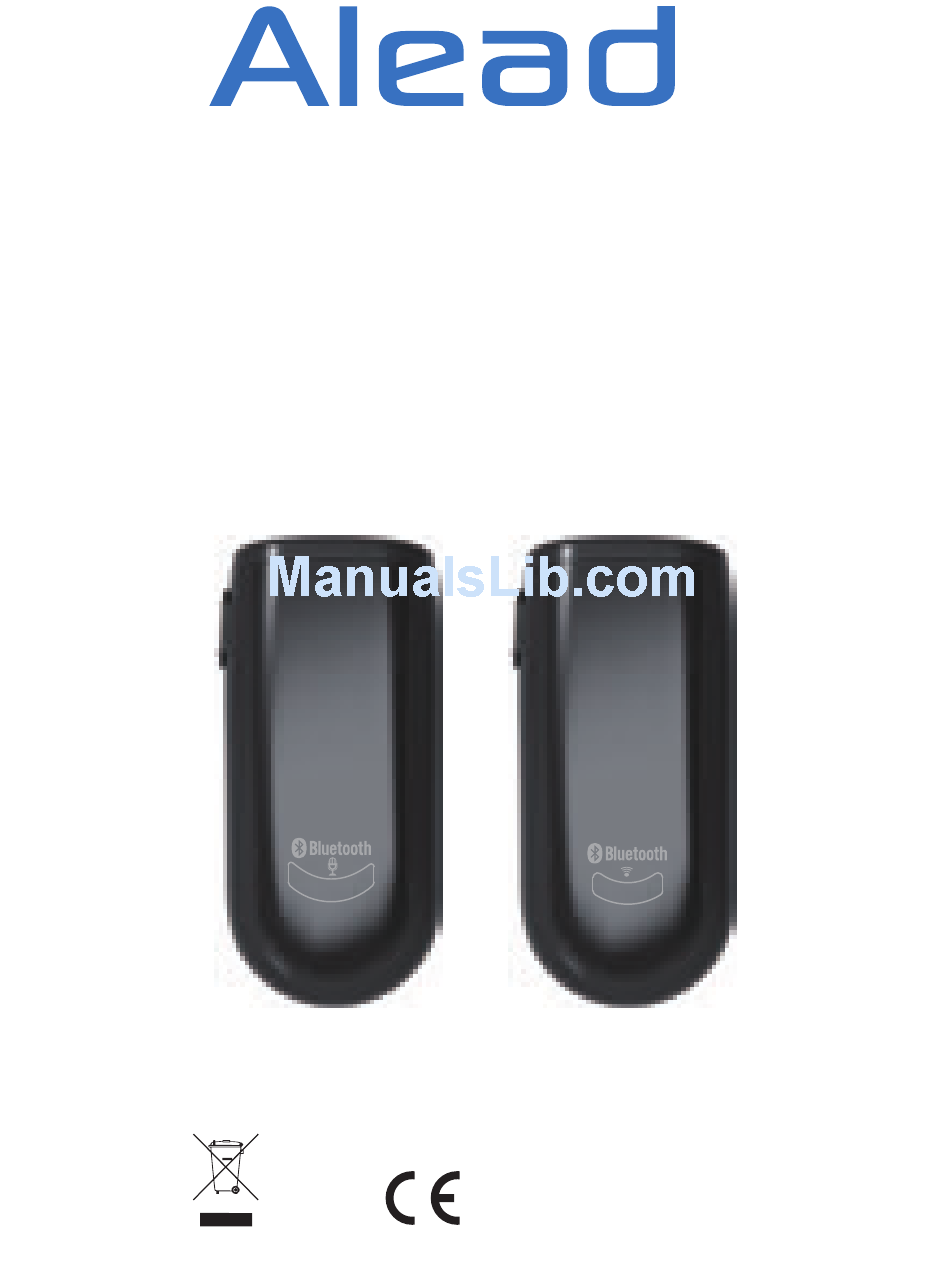

- Page 1 BLUETOOTH WIRELESS Microphone & Receiver Set P/N AMICRX5C2XXX USER GUIDE M I C R O PH O N E R E C EIV E R Declaration Conformity: declare that product AMICRX5C2XXX conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRX3C2XXX 0678...
-
Page 2: Getting Started
INTRODUCTION The Microphone & Receiver Set (MICRX2) allows capturing the source of audio wirelessly and freely with MIC2 wireless microphone. This wireless Microphone & Receiver provides the unique low latency to allow user to have well listening or recording remote voice without delayed. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below. -
Page 3: Product Overview
Please check the contents carefully and contact your local dealer immediately if anything is missing or damaged. PRODUCT OVERVIEW See image below. Please note some models will differ slightly in style, colour and the functionality may vary according to their specifications. USB Charging Connector On/Off... - Page 4 CHARGING Before using the MIC2 and RX2, you must charge both for approximately 2 hours. After fully charged, the battery provides up to 6 hours of vocie talk time and up to 100 hours of standby time . Plug USB charging cable into MIC2 and RX2 mini USB connector.
- Page 5 TURN ON AND PAIRING You need to pair both MIC2 and RX2 when both first time to use together. 1. On MIC2, press and hold the ON/OFF button for about 2 seconds until blue LED blinking quickly. MIC2 type A pairing mode 2.
- Page 6 The MIC2 supports two pairing modes. The type ※ A and type B pairing mode have different LED indication. Please ensure you are using type A pairing mode during pairing with RX2. Switch to desired Type A mode Select the type A mode by slide A/B mode switch before turn on Microphone.
-
Page 7: Operation
OPERATION Using for remote voice and commuicaiton After connected with the MIC2, RX2 will receive the audio or voice wirelessly. Fit 3.5mm plug audio cable to RX2, Plug your 3.5mm audio plug of audio cable into the RX2’s audio jack and another side connects to “Audio In”... - Page 8 Using for listening or recording remote voice Connect to audio output of RX2 to speakers or iPad/iPhone to listen or record remote voice wirelessly. PA systems Tablet iPhone Speaker camcorder audio or voice R E C EIV E R MIC2 “Tansmitter”...
- Page 9 Adjusting the MIC2 microphone gain To increase the microphone gain While speaking, click the ON/OFF button once to increase the microphone gain by one step. Repeat this procedure until you reach the desired level. To decrease the microphone gain While speaking, quick click the ON/OFF button two times continuously to decrease the microphone gain by one step.
- Page 10 Adjusting the RX2 audio volume To increase the audio volume While listening audio, click the ON/OFF button once to increase the volume by one step. Repeat this procedure until you reach the desired level. To decrease the audio volume While listening audio, quick click the ON/OFF button two times continuously to decrease the volume by one step.
-
Page 11: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of MIC2 and RX2 working statues. Statues Indication Charging amber LED is on blue LED low speed flash, approx. every Not Connected 5 seconds blue LED middle Connected speed flash blue LED flash MIC2 and RX2... -
Page 12: Troubleshooting
MIC2 can not pair distance range and with RX2 MIC2 using in type A mode. CUSTOMER SERVICE INFORMATION For other Alead or Nolan Bluetooth products or support, please view our website – www.aleadinc.com, www.nolan-sys.com email info@aleadinc.com, info@nolan-sys.com or contact your local representative. - Page 13 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. manufacturer reserves the right to make changes and improve- ments to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
