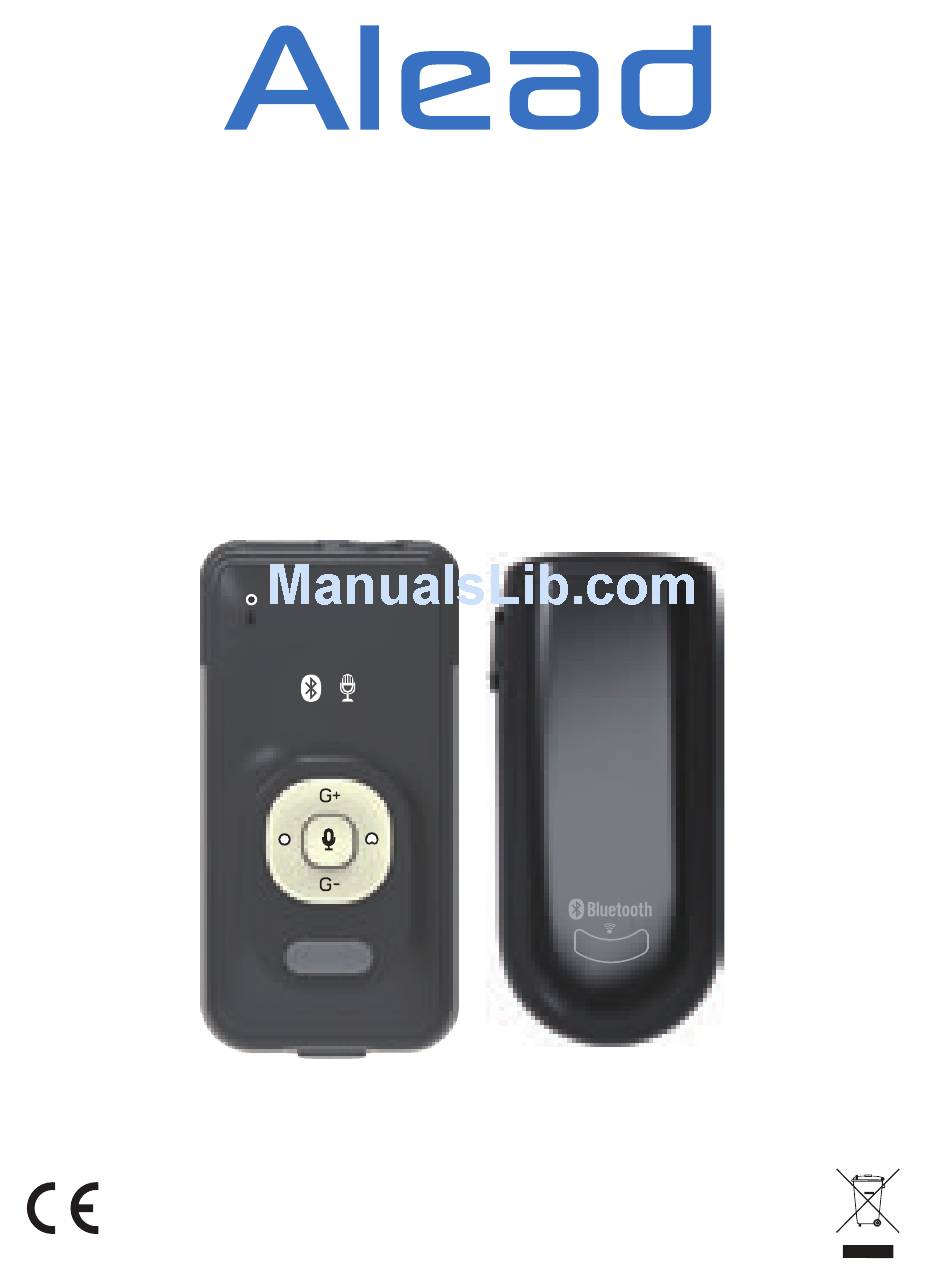

Page 1: User Guide
BLUETOOTH WIRELESS LiveMicrophone & Receiver Set P/N ALMICRX5C2XXX USER GUIDE R E C EIV E R Declaration Conformity: declare that product ALMICRXC2XXX conforms to the R&TTE Directive 1999/5/RC. FCC ID:TNZNSRXRM3C2XXX 0678 FCC ID:TNZNSRX3C2XXX... -
Page 2: Getting Started
INTRODUCTION The LiveMicrophone & Receiver Set(LiveMICRX2) allows capturing the source of audio wirelessly with LiveMIC2 wireless microphone. This wireless microphone & receiver provides the unique low latency to allow users to have well listening or recording remote voice without delayed. GETTING STARTED Unpack the package carefully and confirm that you have all of parts as shown below. -
Page 3: Product Overview
Please check the contents carefully and contact your local dealer immediately if anything is missing or damaged. PRODUCT OVERVIEW See image below. Please note some models will differ slightly in style, colour and the functionality may vary according to their specifications. 3.5’... - Page 4 External Mic Jack USB Charging Uni Mic Connector Omni Mic External Mic Mic Gain Up Switch Omni Mic Uni Mic Switch Switch On/Off Mic Gain Down A/B Mode Switch (LiveMIC2) CHARGING Before using the LiveMIC2 and RX2, you must charge both for approximately 2 hours. After fully charged, the battery provides up to 6 hours of vocie talk time and up to 100 hours of standby time .
- Page 5 Plug USB charging cable into LiveMIC2 and RX2 mini USB connector. Plug the other side of USB charging cable into a powered USB connector. When charging, the amber LED will be lighted. When charging is completed, the amber LED will be turn off or dim.
- Page 6 TURN ON AND PAIRING You need to pair both LiveMIC2 and RX2 when both first time to use together. On LiveMIC2, press and hold the ON/OFF button for about 2 seconds until blue blinking quickly. LiveMIC2 type A pairing mode 2.
- Page 7 The LiveMIC2 supports two pairing modes. The ※ type A and type B pairing mode have different LED indication. Please ensure you are in type A pairing mode during the pairing. Switch to desired Type A mode Select the type A mode by slide A/B mode switch before turn on LiveMIC2.
-
Page 8: Operation
OPERATION Using for remote voice and commuicaiton After connected with the LiveMIC2, RX2 will receive the audio or voice wirelessly. Fit 3.5mm plug audio cable to RX2, Plug your 3.5mm audio plug of audio cable into the RX2’s audio jack and another side connects to “Audio In”... - Page 9 Using for listening or recording remote voice Connect to audio output of RX2 to speakers or iPad/iPhone to listen or record remote voice wirelessly. Tablet iPhone PA systems Speaker camcorder R E C EIV E R audio or voice LiveMIC2 “Tansmitter”...
- Page 10 Using microphone on LIVEMIC2 The LiveMIC2 supports internal and external microphone Using internal Uni and Omni directional microphone Put LiveMIC2 close to the source of the sound within 8 inches to captured the best sound quality. Too far away max. 20cm 8 inches Press the microphone select button, the correspond internal microphone will be used.
- Page 11 Both unidirectional and omnidirectional microphones have their advantages and disadvan- tages. The important thing is to know the applica- tion of the microphone in use to know which would be better for the given situation around. Unidirectional (Cardioid) microphone is used that the target sound source pick up directly in front of the...
- Page 12 Good Weak Good Good Weak Good Omnidirectional Unidirectional Using external microphone Plug the 3.5mm audio plug of external microphone into the LiveMIC2 audio jack and select the external MIC on the select button. LiveMIC2 will disable internal MIC and use the external MIC for sound capturing.
- Page 13 This type of external microphone is suitable for LiveMIC2 Signal retrun Microphone Microphone Groud or empty Adjust microphone gain and mute LiveMIC2 The G+/G- buttons is used to adjust the microphone input gain. Each microphone gain can be adjusted when it is using, and the gain will be stored after setting.
- Page 14 G+ and G- : Single press to increase and decrease the microphone gain. Mute: Press and hold the G- for about a second to mute the microphone, then to press the G+ to unmute. Adjusting the RX2 audio volume To increase the audio volume ...
-
Page 15: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of LiveMIC2 and RX2 working statues. Statues Indication Charging amber LED is on blue LED low speed flash, approx. every Not Connected 5 seconds blue LED middle Connected speed flash blue LED flash RX2 and LiveMIC2... -
Page 16: Troubleshooting
LiveMIC2 can not distance range and pair with RX2 LiveMIC2 using in type A mode. CUSTOMER SERVICE INFORMATION For other Alead or Nolan Bluetooth products or support, please view our website – www.aleadinc.com, www.nolan-sys.com email info@aleadinc.com, info@nolan-sys.com or contact your local representative. - Page 17 DISCLAIMER Whilst every effort has been made to ensure that the information in this manual is accurate and complete, no liability will be accepted for any errors and/or omissions made. manufacturer reserves the right to make changes and improve- ments to the specifications and features of the hardware and firmware of the products described in this document without prior notice.
