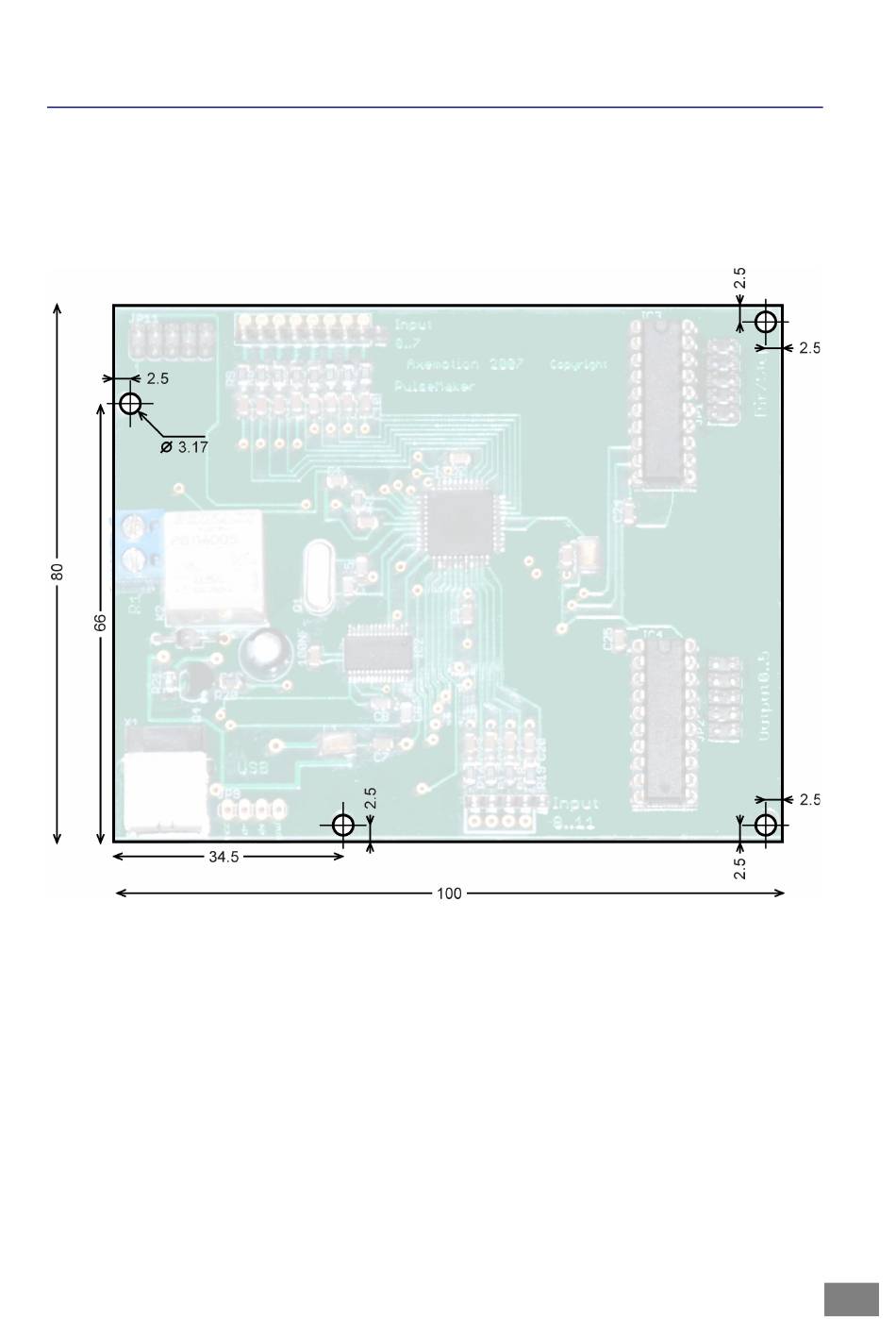

The XY dimensions of the AxeMotion PulseMaker card are 100 x 80 mm and a
thickness of about 25 mm (from solders to power relay).
Unit : mm
It is obvious that the card should not be mounted directly on a met al support
that would shortcut the solders. Use an isolation sheet or, even better, screw
the card at a small distance from the board so the solders do not touch the
surface. Electrical wires and tapes must be soft enough to avoid bending that
can create bad contacts. Also, a USB communication may be working badly if
the cable is too close to a source of electrical noise (motors, power supplies,
neon lights, etc.). Do not place the card itself in the neighbourhood of a poss i-
ble source of electrical noise and, whenever possible, integrate it in an iron box
or rack.
