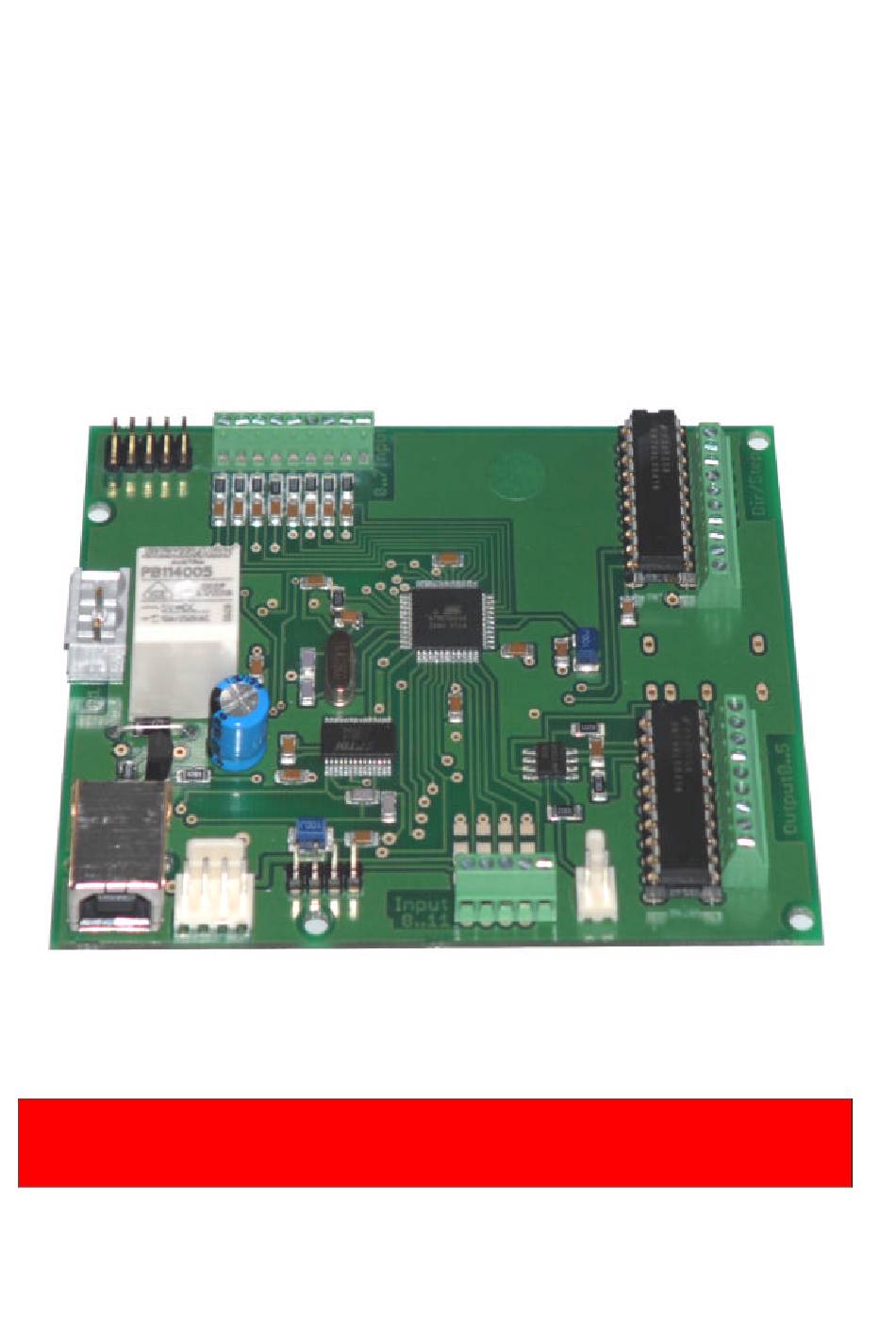

  • Page 2: Safety Instructions

    - Unplug all electrical connections before cleaning the hardware. - Do not install the AxeMotion module or the machine it drives near water or in an moist environment. Do not handle or use the machine if you are wet.
  • Page 3 No liability can be accepted concerning the AxeMotion modules, their manufa c- turer or distributor, for direct or indirect damages caused by a misuse or non...
  • Page 4 Almost all power stages for stepper motors, and many servodrives are co n- trolled by couples of 5V signals Clock (or Pulse, i.e. rotation of an increment) and Direction (rotation sense). AxeMotion CNC modules are able to produce these signals in an intelligent way by receiving and processing high -level commands that are sent by the supervision software.

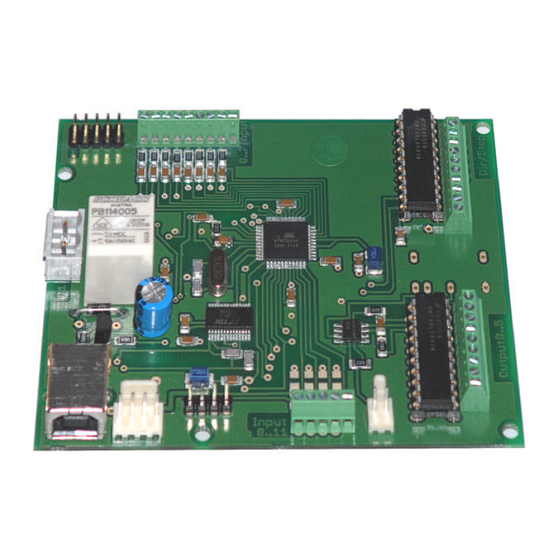

  • Page 5 The XY dimensions of the AxeMotion PulseMaker card are 100 x 80 mm and a thickness of about 25 mm (from solders to power relay). Unit : mm It is obvious that the card should not be mounted directly on a met al support that would shortcut the solders.
  • Page 6 A poor quality wiring is the cause of recurrent errors. Please take great care of the integration and the electrical wiring of your AxeMotion card. The inputs of the PulseMaker card are default "pulled-up" to the +5 V. Conse- quenly, an input is triggered when connected to the ground (GND) of the card.
  • Page 7 --7--...
  • Page 8 Important: connections differ for the AxeMotion PulseMaker version that is fitted with HE10 male connectors with double rows of pins and locator which require female connectors to be clipsed on wire tapes. Warning, the list of numbered signals on a wire tape will not be the same wether you have a HE10 or a screw connector.
  • Page 9 --9--...
  • Page 10 CN1 : USB CN6 : Outputs CN 8 : Inputs 1 - Vcc (+5 V) 1 - Vcc 1 - input # 1 2 - Data – 2 - output # 6 2 - input # 2 3 - Data + 3 - output # 5 3 - input # 3 4 - GND...
  • Page 11 CN1 : USB CN6 : Outputs CN 8 : Inputs 1 - Vcc (+5 V) 1 - output # 2 1/3/5/… /15 - GND 2 - Data – 2 - output # 3 2 - input # 8 3 - Data + 3 - output # 1 4 - input # 7 4 - GND...

  • Page 12: Installing The Driver

    When the AxeMotion PulseMaker module is plugged for the first time on the USB port of a PC under Windows, the system needs to install a driver to allow dialoguing with this new peripheral. A message "New Hardware detected" is followed by a "Wel-...
  • Page 13 Windows version. Once the installation is completed, a last message "The wizard has finished installing the software" ends the process. Click on button "Finish" at bottom. The AxeMotion PulseMaker driver is now installed on your computer. --13--...

  • Page 14: Uninstalling The Driver

    In case you encounter system configuration problems or expe- rience communication failure with the AxeMotion module, you might want to uninstall your PulseMaker driver from your computer. In Windows "Start" menu, click on "Parameters" then on "Control Panel" (also available from the Windows File Explorer).
  • Page 15 Galaad integrated software for CAD-CAM-CNC is compatible with the AxeMo- tion PulseMaker module that it can drive in optimal conditions. In Galaad or one of its related modules, call the menu command "Para- meters / Machine / Full data". The page "Table"...
  • Page 16 Now you must setup the internal data of the PulseMaker card. Still in this "Controller" page of Galaad machine parameters, click on the small button "More… " at top-right aside the controller type. This pops up a sub -window that provides access to all special parameters for your card.
  • Page 17 (N.O.) circuit or switch; while a "Disabled" polarity corresponds to a normally closed (N.C.) circuit. Galaad receives from AxeMotion the eventual corrections or updates of the firmware (the card internal program) for their CNC modules. Consequently, a Galaad update may induce an automatic firmware update if the option is ticked.

  • Page 18: Troubleshooting

    Clock output of the PulseMaker card, and that the ground is also well connected. If other motors turn, try to swap its Clock and Dir signals with another motor that works, to see if the problem comes from the card or from the power stage.
  • Page 19 - A motor always turns in the wrong direction The Dir signal is not carried to the power stage. Please check that this signal is not swapped with one of another axis, and th at the ground is well connected to the Dir input (or Direction, or Sense) of the corresponding power stage.
  • Page 20 AxeMotion 106 rue de la placette 06620 Cipieres France RCS Grasse 411 582 471 SIRET 411 582 471 00024 Copyright © 2007 AxeMotion All rights reserved...
