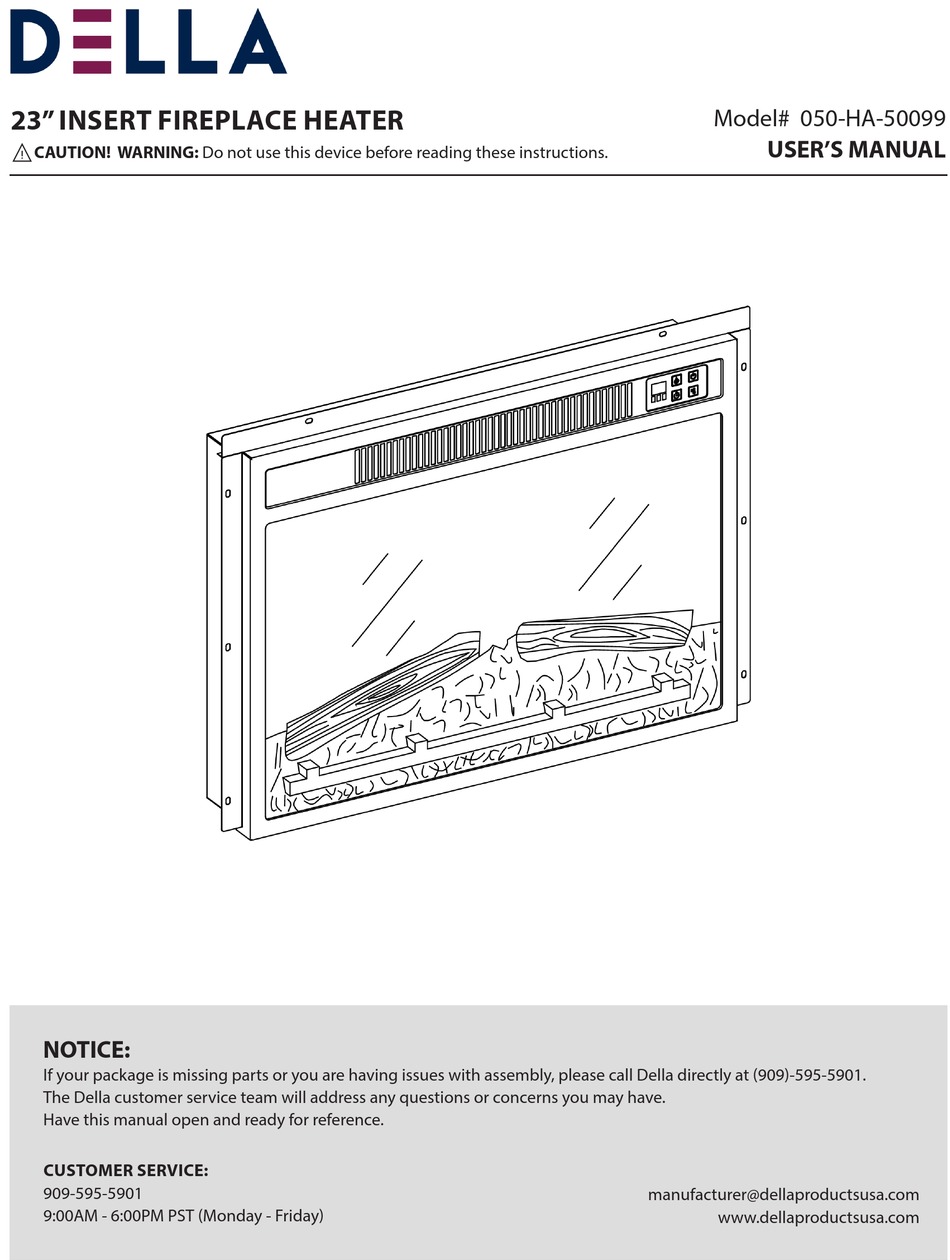

23" INSERT FIREPLACE HEATER
Model# 050-HA-50099
USER'S MANUAL
⚠CAUTION! WARNING: Do not use this device before reading these instructions.
NOTICE:
If your package is missing parts or you are having issues with assembly, please call Della directly at (909)-595-5901.
The Della customer service team will address any questions or concerns you may have.
Have this manual open and ready for reference.
CUSTOMER SERVICE:
909-595-5901
manufacturer@dellaproductsusa.com
9:00AM - 6:00PM PST (Monday - Friday)
www.dellaproductsusa.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DELLA 050-HA-50099
Summary of Contents for DELLA 050-HA-50099
- Page 1 ⚠CAUTION! WARNING: Do not use this device before reading these instructions. NOTICE: If your package is missing parts or you are having issues with assembly, please call Della directly at (909)-595-5901. The Della customer service team will address any questions or concerns you may have.
-
Page 2: Table Of Contents
Table of Contents Warnings & Precautions --------------------------------------------------------------------- Technical Specification ------------------------------------------------------------------------ Package Contents ------------------------------------------------------------------------------ Installation guide ------------------------------------------------------------------------------ Users Instruction ------------------------------------------------------------------------------- Control Panel Remote Control Care and Maintenance --------------------------------------------------------------------------- Troubleshooting -----------------------------------------------------------------------------------... -
Page 3: Warnings & Precautions
When using electrical appliances, basic safety precautions should always be followed including the following: READ ALL INSTRUCTIONS BEFORE USE 1. Read all instructions before using this heater. ⚠ WARNING: There is no user serviceable parts inside fireplace/heater. If the unit appears to malfunction, turn the unit off and unplug from the 2. -
Page 4: Technical Specification
Specifications Model Number 050-HA-50099 Dimensions (W x D x H) 23”x5.04”x18.3” Net Weight 15.8 lb Gross Weight 18.7 lb Power Rating 1400 W Voltage 120 V Frequency 60 Hz Package Contents Top Trim Side Trim (L/R) Fireplace Unit Screw x15... -
Page 5: Installation Guide
Installation Guide STEP 1 Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all small items are not left in packaging materials. STEP 2 Attach the top trim to the top of the unit and secure it by tightening 2 screws. Make sure the right angle side faces toward the front of the unit. - Page 6 STEP 3 Carefully set the unit from the back of the mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the trim to the mantel. NOTE: Do not attempt to install the unit from the front of the mantel.
-
Page 7: Users Instruction
User Instruction Before use Check that the air intake and exhaust is not covered or obstructed in anyway. Keep combustible objects at least 3ft away from the unit. Plug the unit to a grounded power socket. Grounding This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. -
Page 8: Control Panel
User Instruction Flame Control Power Button Display Function Indicator Heater Control Timer Control Control Panel The control panel is located on the top right corner of the unit. Power ON / OFF Press the power button to turn on the unit. Press again to turn off the unit. NOTE: There is a thermostat limiter inside the unit. - Page 9 User Instruction Heater Control Press the heater control to turn on and off the heater. When the heater is turned on, press and hold the heater control button for 5 seconds to enter temperature adjustment mode. The LED indicator is red. In adjustment mode, the display will flashes. There are 22 levels to change Fahrenheit temperature (ON, 62°F - 82°F).
-
Page 10: Remote Control
User Instruction Heater Control Power Button Heater Up Flame Control Heater Down Timer Control Remote Control The operation of the remote control buttons work the same as the button on the control panel. NOTE: The remote control cannot be used to switch between degree Fahrenheit and degree Celsius. Install / Replace Battery The remote control is provided with a CR2025 battery. -
Page 11: Care And Maintenance
User Instruction Care and Maintenance Cleaning the unit: Always turn off the and unplug the unit from power outlet before cleaning. Allow the unit to cool down completely before performing any maintenance or cleaning. Use a vacuum cleaner or duster to regularly remove any accumulated dust on the unit Use a damp soft cloth to clean the surface and buff with a dry cloth.
