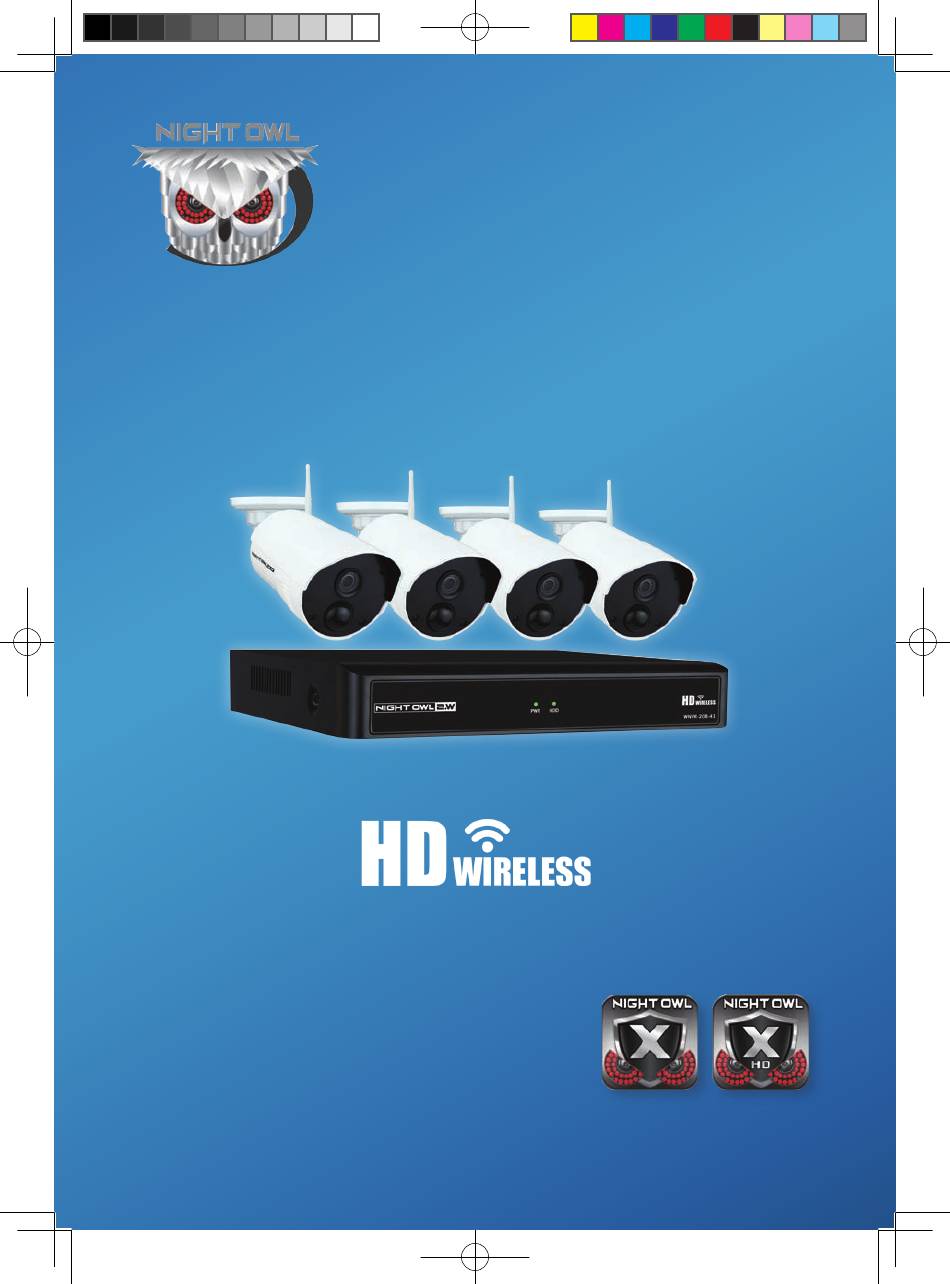

QUICK SETUP GUIDE
WNVR201 SERIES
Specifically
Specifically
Designed for
Designed for
www.NightOwlSP.com
Smart Phones
Tablets
QSG-WNVR-V2.indd 1
2017/8/23 10:25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WNVR201 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Night Owl WNVR201 SERIES

  • Page 1 QUICK SETUP GUIDE WNVR201 SERIES Specifically Specifically Designed for Designed for www.NightOwlSP.com Smart Phones Tablets QSG-WNVR-V2.indd 1 2017/8/23 10:25...
  • Page 2: What's In The Box

    What’s in the Box Package Contents Disclaimer: Images and Quantities may vary by model. Important: For best results use all of the included Night Owl accessories. Third party accessories may not work properly. Camera Antenna (1 per camera) NVR Antenna (x2) 9 ft.
  • Page 3: Product Overview

    Product Overview Wireless NVR Rear View AUDIO HDMI POWER GROUND OUTPUT NOTE: The maximum number of cameras you can connect to your Wireless NVR will be determined by the number of channels. Audio Output – Allows for the connection of an amplified speaker. VGA Output –...
  • Page 4 POSITIONING YOUR WIRELESS NVR Positioning Your Wireless NVR and Cameras Incorrect Placement Your wireless IP cameras will reach up to 300 ft. Therefore, proper placement of the wireless NVR in your home will ensure you achieve maximum coverage. Correct Placement Placing the wireless NVR centrally in your home will help make certain that no matter where you mount your cameras,...
  • Page 5 How Obstacles Affect Your Signal Strength When your wireless signal is transmitted through various materials, such as walls and windows, the signal strength is affected. Though the NVR and wireless camera may be very close in proximity, you could still notice high signal interference if the signal passes through certain obstacles.
  • Page 6: Connecting Your System

    Connecting Your System HDMI Connect the two included antennas Plug one end of the included to your wireless NVR. This will HDMI cable into the HDMI port ensure you achieve the maximum on the back of the Wireless NVR. wireless range for transmission from your wireless cameras.
  • Page 7 Surge Protector not included Connect the Wireless NVR power Plug the Wireless NVR power adapter to the Power Input on adapter into a surge protector or the rear of the Wireless NVR. Uninterruptible Power Supply (UPS). (surge protector and NOTE: Power adapters will be UPS not included) labeled as either NVR or Camera.
  • Page 8: Startup Wizard

    Please ensure you provide a valid email address in case you forget your account information. Remember Your Password Night Owl strongly recommends writing down your password within the Quick Setup Guide. You will need it every time you log into your Wireless NVR and to remotely view on a Smart Device.
  • Page 9 When you reach the Camera / Channel Settings screen, you will want to have installed the cameras in their final position. Please make sure you have mounted cameras at least 7ft. above the ground and angled them slightly down. The infrared sensor works best for ‘side to side’...
  • Page 10 Night Owl X & Night Owl X HD Mobile Apps Night Owl fits right in with your mobile lifestyle by allowing you to remotely monitor your home or business. Our free and exclusive Night Owl X app for and Android™ phones and Night Owl X HD for iOS and Android™...
  • Page 11 (No_Reply@NightOwlSP.com )” . STOP: You MUST complete Step 3 before continuing! Go to your email, open the Confirmation email from Night Owl, and click the “Confirm Email” link. You MUST confirm your email to use the App! QSG-WNVR-V2.indd 11 2017/8/23 10:25...
  • Page 12 Night Owl X App by using the application’s Smart Auto Detection or through a QR Code Setup. With Smart Auto Detection, your NVR will automatically be detected by the Night Owl X software, making connecting easy! To use this preferred method, ensure your Smart Device and NVR are both on the same network.
  • Page 13 On the Device Login screen, enter the login information for the NVR (Remember, the NVR login and Night Owl X app login are different). The NVR username is admin by default. If you are not the admin, login with your username credentials.
  • Page 14 Using Night Owl X App Overview Live View Displays real-time footage of your system. Settings Playback Notifications Display connected devices, View recordings & Manage custom change view layout, view images and save them Push Notifications. favorites, manage accounts to your phone’s album.
  • Page 15 PC or Mac cameras on your network. ® Night Owl X CMS Software The Night Owl X Control Management Software (CMS) allows you to view your Night Owl Security system remotely from a PC or Mac . Additionally, you can ®...
  • Page 16 NVR. NOTE: When pairing a Night Owl add-on camera, refer to “Add-on cameras Quick Setup Guide”. To pair a replacement camera to your NVR, please use the below steps: Power on the replacement camera using the camera power adapter.
  • Page 17 Next, you will need to reset the replacement camera. To do so, press and hold the reset button until you hear a beep, indicating the camera has begun the reset process. NOTE: The reset process may take up to 3 minutes. After 3 minutes have passed or after hearing the camera beep, click on Wireless Add...
  • Page 18 Pairing a Replacement Wireless Camera If you have not exceeded the channel limitation, the new camera will appear in a vacant video field once paired. WooHoo! Your replacement camera has now been paired to the Wireless NVR using the Wireless NVR’s built-in Wi-Fi. QSG-WNVR-V2.indd 18 2017/8/23 10:26...
  • Page 19: Additional Support

    In order to view your wireless system remotely, your NVR will need to be manually connected to a modem/router via the included Ethernet cable. You can view your system via the FREE Night Owl X or Night Owl X HD App by utilizing the FREE CMS software on a PC/Mac ®...
  • Page 20 For system manuals, troubleshooting guides, FAQs, video tutorials and more: Please visit www.NightOwlSP.com. Click the Support tab. CONTACT US Enter your product’s model number in the search bar. Access the support material needed. PHONE (English, Spanish & French) Sales/ Technical Support 1.866.390.1303 Live Chat 24/7, 365 days a year EMAIL...
