3. ASSEMBLY - ENDOSCOPE TO CAMERA
EYEPIECE ENDOSCOPE ASSEMBLY
If you are using the 81025 or 81025A endoscope, reference the following:
Attach the eyepiece endoscope to the camera coupler according to the recommendation of the camera manufacturer.
PRECAUTIONS
CAUTION: Do not use clamps or forceps when handling the Endoscope.
CAUTION: Do not handle the Endoscope at the distal end. Grasp the camera mount end only.
CAUTION: Do not place other items on top of the Endoscope.
VIDEO ENDOSCOPE ASSEMBLY
If you are using the 81020N or 81020 endoscopes*, reference the following:
C-MOUNT THREADS
Assemble the Video Endoscope and Camera with C-Mount Threads. The Video Endoscope screws onto a camera with
C-mount threads, after the C-mount lens coupler has been removed. The ocular lens adapter (C-mount lens coupler) must be
removed before attaching the camera to the Video Endoscope. The lenses in the ocular endoscope adapter may distort viewing if
it is not removed, and it will not mechanically attach.
V-MOUNT THREADS
On camera with V-mount threads, a V-mount adapter needs to be attached to the camera before attaching the Video Endoscope.
Turn the camera lock screw on the Video Endoscope counterclockwise until it stops to ensure that it is unlocked. (Ref: IMAGE 6)
Turn the knurled disc at the end of the Video Endoscope, threading the Endoscope into the camera until it is tight. (Ref: IMAGE 7)
CAUTION: If the O-ring is not compressed, it does not form a moisture-proof seal and fogging may occur at the
camera/Endoscope interface.
NOTE: On cameras where the Endoscope O-ring does not press snugly against a flat surface on the camera face, another
O-ring in addition to the current O-ring must be added to prevent fogging. Position the O-ring over the threads of the Video
Endoscope and push down until the O-ring fits snugly around the base of the Endoscope's threads. When properly placed, the
O-ring assures contact with the camera body threads to create a moisture-proof seal. (Ref: IMAGE 8)
PRECAUTIONS
CAUTION: Do not use clamps or forceps when handling the Endoscope.
CAUTION: Do not handle the Endoscope at the distal end. Grasp the camera mount end only.
CAUTION: Do not place other items on top of the Endoscope.

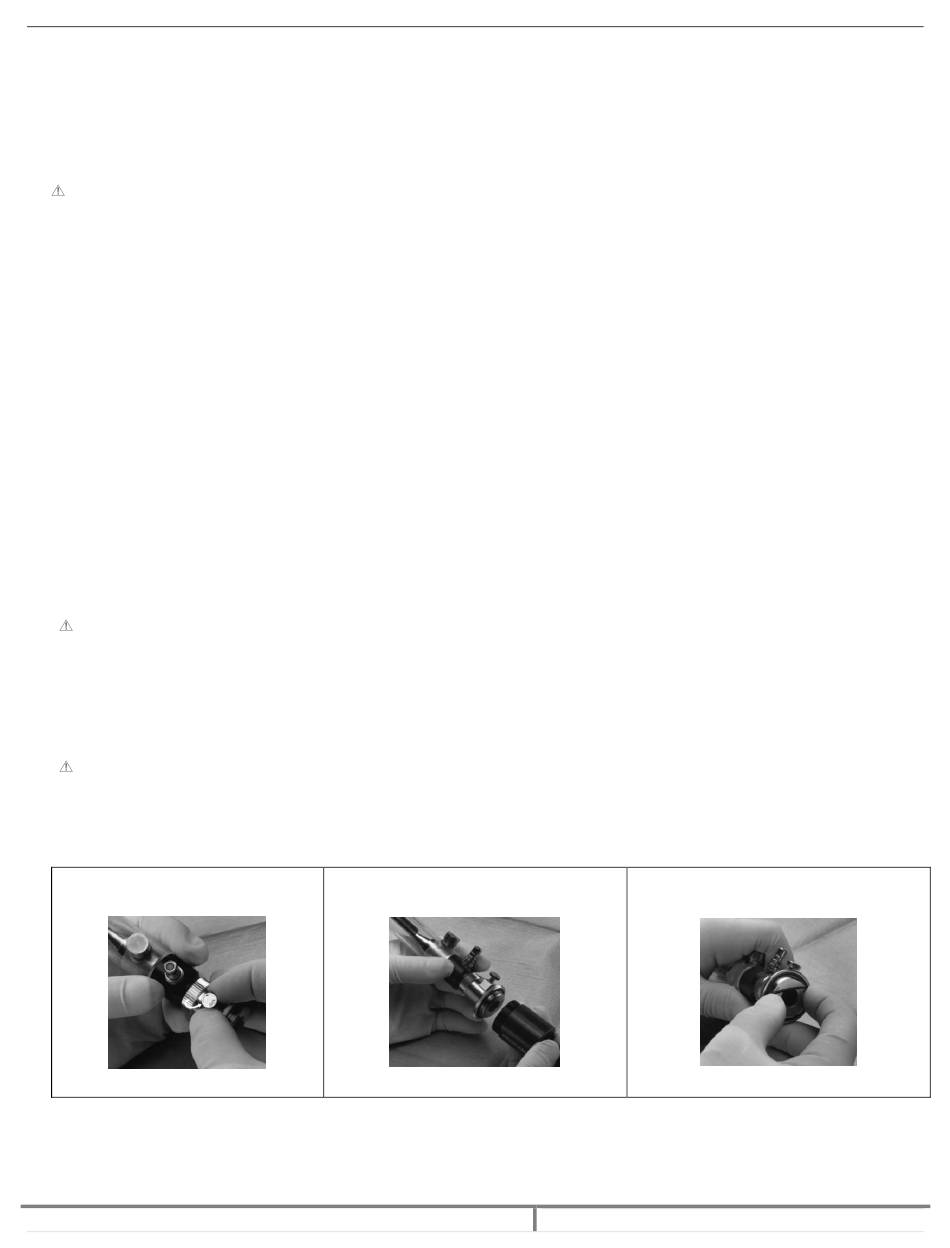

IMAGE 6
™
