TDT1000
Transducer Diagnostic Tester

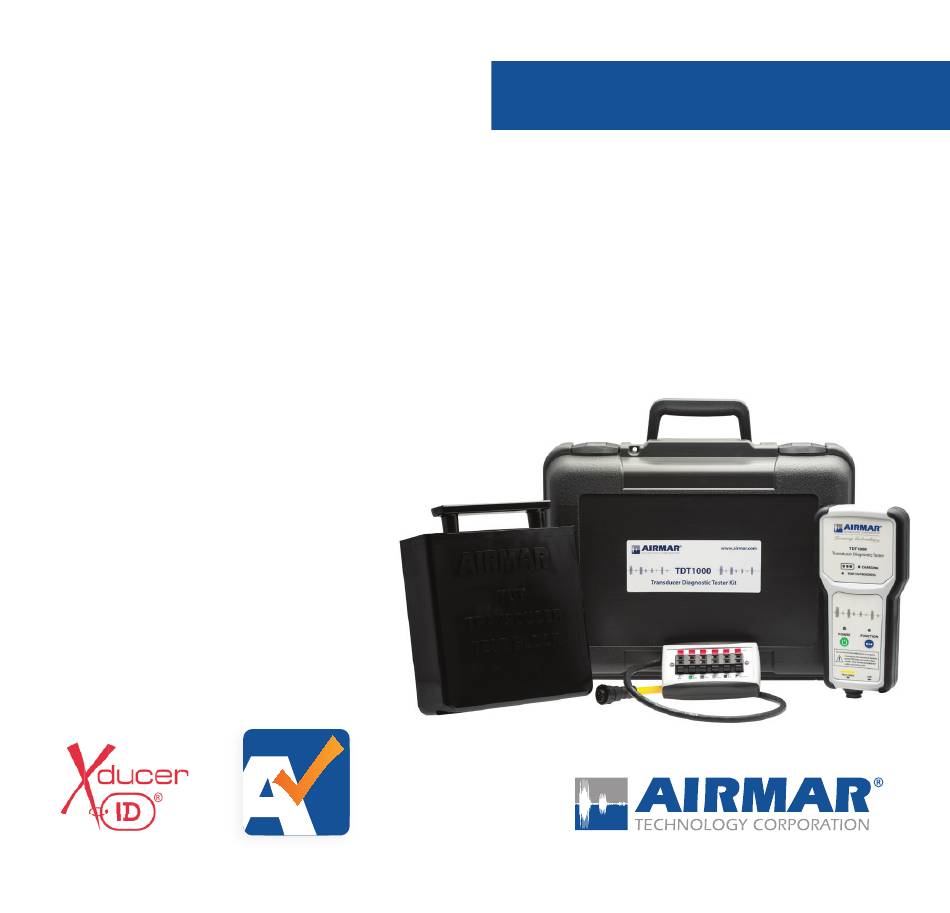

Kit Includes
•
TDT1000
•
Adapter cable with terminal box for transducers with NO connector
•
Power charger with USB to Micro USB adapter
•
Carrying case
•
International wall-plug adapter kit
(UK, Australia, and Europe)
•
OEM adapter cables
(if purchased)
•
TDT Test Block
QUICK START GUIDE
Advertisement
Related Manuals for Airmar TDT1000
Summary of Contents for Airmar TDT1000
- Page 1 QUICK START GUIDE TDT1000 Transducer Diagnostic Tester Kit Includes • TDT1000 • Adapter cable with terminal box for transducers with NO connector • Power charger with USB to Micro USB adapter • Carrying case • International wall-plug adapter kit (UK, Australia, and Europe) •...
-
Page 2: Before You Start
LE-enabled iOS or Android device to connect to the TDT1000. CAUTION: The transducer must be connected to the TDT1000 through an OEM adapter cable. Do not connect the transducer directly to the TDT1000. CAUTION: The transducer and OEM adapter cable must be connected to the TDT1000 before starting a test. - Page 3 • Tested utilizing the TDT tester block. Utilizing the correct OEM adapter cable (sold separately), connect the TDT1000 to the transducer cable (Diagram 1). If the transducer does not have a connector, it must be connected through the terminal box. Follow the color-coded instructions on the terminal box.
-
Page 4: Step 2 Start The Test
Press the Start Test icon on the SensorCheck app to begin the test. NOTE: If the SensorCheck app does not connect to TDT1000, see the back panel of this Quick Start Guide, Troubleshooting. SensorCheck automatically checks for Screen A Screen B Xducer ID®... - Page 5 If the results are In Range, email results to the boat owner, dealer, and/or installer (Screen A). If the results are Out of Range, email test results with your contact information to tdt1000@airmar.com before removing or replacing the transducer (Screen B).
-
Page 6: Troubleshooting
11/01/18 As Airmar constantly improves its products, all specifications are subject to change without notice. All Airmar products are designed to provide high levels of accuracy and reliability, however they should only be used as aids to navigation and not as a replacement for traditional navigation aids and techniques.
