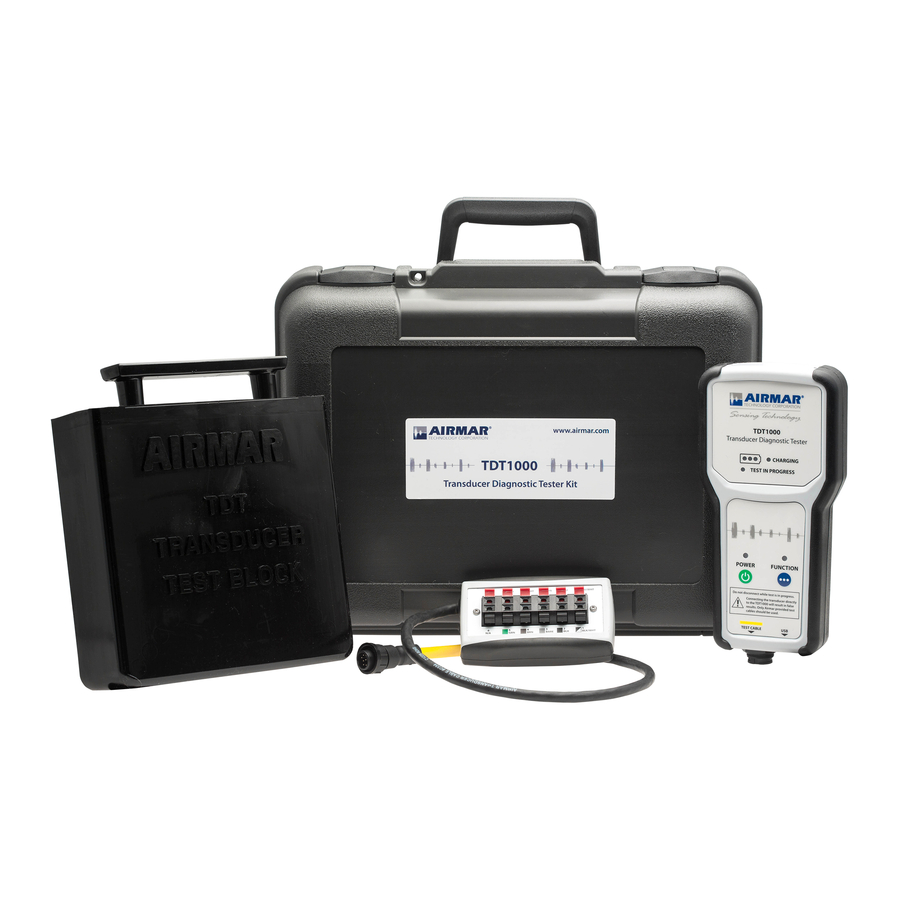

- Page 1 Transducer Diagnostic Tester User Guide TDT1000 terminal box TDT1000 connector adapter cable for transducers with NO connector 17-615-01-rev. 03 09/19/17...
- Page 2 Airmar. Airmar hereby grants permission to download a single copy of this manual and of any revision of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this...
-
Page 3: Table Of Contents
Where to Purchase Parts..................6 Test Set-up: Transducer..................7 Test Set-up: TDT1000..................8 About SensorCheck App................... 12 ™ Download SensorCheck App................. 12 Connecting SensorCheck App to TDT1000............13 SensorCheck Home Screen..................14 SensorCheck App Does NOT Connect............15 Menu Screen......................16 History......................16 Catalog......................17 Settings......................17 Identifying the Transducer: Flowchart..............18... -
Page 4: Important
IMPORTANT Before removing and/or returning an “Out of Range” transducer, please contact your service representative for additional product support. -
Page 5: Cautions
IMPORTANT: Please read the instructions completely before proceeding. Introduction The TDT1000 is a hand-held device used to check that a depth transducer is functioning properly. It works with all Airmar transducers and most others. When combined with the SensorCheck™ app on a Bluetooth LE-enabled iOS or an Android device, ®... -
Page 6: Adapter Cables
Mix & Match Adapter Cable, 600W, 5F - A connector 33-1389-01 Mix & Match Chirp Adapter Cable, 12M - MM connector 33-1390-01 Where to Purchase Parts Obtain adapter cables from the following: Gemeco (USA) Tel: 803-693-0777 email: sales@gemeco.com Airmar EMEA (Europe, Middle East, Africa) Tel: +33.(0)2.23.52.06.48 email: sales@airmar-emea.com... -
Page 7: Test Set-Up: Transducer
- External, Cavity, Pocket, and Barrel mount transducers are best tested on a submerged fixture bridging the sides of the barrel. board hook & loop double sided tape (2) active face Figure 1. Transducer suspended in a 200 liter (55 gal.) barrel Copyright© 2017 Airmar Technology Corporation... -
Page 8: Test Set-Up: Tdt1000
Battery Check Be sure the TDT1000 is charged or connected to a power supply before testing begins. 1. Power the TDT1000 ON by pushing the green Power button (Figure 2). The indicator light will glow green. 2. Check that at least one of the battery-status lights is illuminated green. - Page 9 Connecting All transducers must be connected to the TDT1000 through an adapter cable. If the transducer has a connector, you need a purchased adapter cable. It must match the brand of the instrument and the number of pins in the connector of the transducer. For transducers with NO connector use the supplied adapter cable with terminal box to connect to the TDT.
- Page 10 4. Plug the adapter cable into the test cable port on the TDT1000 (Figure 4) Twist and lock the connector. transducer cable test cable port transducer adapter cable (purchased separately) transducer connector Figure 4. Transducer with connector (not to scale)
- Page 11 2. Visually inspect all the wires. There should be no frayed strands or loose ends to cause shorting. Do NOT include colored insulation inside a terminal. Check to be sure each wire is held firmly within its terminal. 3. Connect the adapter cable to the TDT1000 at the test cable port (Figure 5). transducer cable...
-
Page 12: About Sensorcheck ™ App
1. Go to the App Store or Google Play (Figure 6). 2. Search on the word Airmar. 3. Download the free SensorCheck app. NOTE: The SensorCheck app can be connected to only one TDT1000 at a time. Figure 7. SensorCheck QR Code Figure 6. SensorCheck app icon Copyright©... -
Page 13: Connecting Sensorcheck App To Tdt1000
- The Function light will glow white for a second as the TDT performs a self-check. - The the Power light will glow green. 5. Start the SensorCheck app on your mobile device. 6. The splash screen will appear momentarily when the SensorCheck app connects to the TDT1000 (Figure 8). Figure 8. Splash Screen Copyright©... -
Page 14: Sensorcheck Home Screen
• After the Splash screen, the home screen will appear (Figure 9-A). • “Connecting to TDT1000” will appear on the blue ribbon at the bottom of the screen. • When “TDT1000 is ready to test” appears, you can begin a test (9-B). -
Page 15: Sensorcheck App Does Not Connect
• Your SensorCheck app will say “Searching for TDT1000” (Figure 10-A). • If “No TDT1000 Found” appears, try again by touching the Search for TDT button (Figure 10-B). • If “Check device power” appears, be sure the TDT1000 is powered ON. -
Page 16: Menu Screen
Menu Screen The pull-down menu on the home screen includes the following (Figure 11): pull-down menu Figure 11. Settings screen Copyright© 2017 Airmar Technology Corporation History (Figure 12) • View all past test results. • Delete unwanted test results. Figure 12. History screen... -
Page 17: Catalog
• Version: The firmware version in the TDT1000 • Battery: The percentage of battery charge available • Identify my TDT1000 button: If you are using more than one TDT1000, your mobile device will remember the last TDT used. - Touch the Identify my TDT1000 button to find the current TDT being used. -
Page 18: Identifying The Transducer: Flowchart
Figure 14. Flowchart: Identifying a transducer Copyright© 2017 Airmar Technology Corporation Getting Started 1. Power the TDT1000 ON by pushing the Power button (Figure 2). Wait until the indicator light glows green. 2. Check that at least one of the battery-status lights is glowing green. -
Page 19: Searching For Xducerid Feature
: The transducer being tested is an Airmar transducer with the XducerID feature. Actual ® Factory Data for this serial number will be retrieved from Airmar’s database. The blue plot line/ curve represents the actual factory test data for that specific transducer. -
Page 20: Airmar Transducer With No Xducerid Feature
Airmar Transducer with NO XducerID Feature NOTE: The part number of an Airmar transducer is printed on the cable tag. • Enter either the model number or the part number of the transducer in the empty field (Figure 16). • If the model number and the part number are unknown, scroll through the Cross Reference table. -
Page 21: Searching For Transducer By Original Equipment Manufacturer
• Touch to highlight the correct transducer. It will populate the field and the Start button will appear. • Touch the Start button to begin testing. Start test button scroll Figure 17. Search by OEM Copyright© 2017 Airmar Technology Corporation... -
Page 22: Unknown Transducer
Default Test. • Touch the appropriate Default Test to begin testing (Figure 18). Figure 18. Testing using a Default Test Copyright© 2017 Airmar Technology Corporation Accessing Database “Accessing database” will momentarily flash on the blue ribbon when the SensorCheck app is... -
Page 23: Sensorcheck Test Screens
• The screen will display the following information: - Test Name: The default test name will be TDT1000 with the date and time of the test. The test name can be changed at any time the “Test Name” field is visible. -
Page 24: Measuring
• “Measuring” will appear on the blue ribbon at the bottom of the screen (Figure 20). • The Test in Progress light on TDT1000 will flash amber while it is testing. • Graph: As the measuring proceeds, a plot line in grey will be drawn. The plot line represents the data points of the current test. -
Page 25: Test Results
• An “In Range” or “Out of Range” pop-up window will appear when the test is finished (Figure 21). • Touch OK to view the “Done” screen. Figure 21. “In Range” and “Out of Range” pop-up windows Copyright© 2017 Airmar Technology Corporation... - Page 26 - The inflection point of the grey plot line will be outside the dotted lines. NOTE: An “Out of Range” finding can be caused by factors other than the transducer inflection point Figure 22. Completed 50kHz test Copyright© 2017 Airmar Technology Corporation...
-
Page 27: Test Summary
• The SensorCheck app will automatically identify the transducer and display the available information: - Test Name: The default test name will be TDT1000 with the date and time of the test. The test name can be changed at any time the “Test Name” field is visible. -
Page 28: Vessel Information
• The user can add information about the vessel and the test. - Test Name: The default test name will be TDT1000 with the date and time of the test. The test name can be changed at any time the “Test Name” field is visible. -
Page 29: Chirp Transducer
Chirp Transducer The TDT1000 will test the range of frequencies at which a Chirp transducer works best. Calibrating & Measuring • The “Frequency” range being tested will appear above the graph (Figure 25). • The “Maximum Temperature” of the ceramic will appear near the top of the graph. -
Page 30: Done Screen
Factory Data curve (Figure 26). The impedance data will fall within the acceptable range for the transducer’s specified frequency range. • “Done” will appear on the blue ribbon at the bottom of the screen when the test is finished. Figure 26. Done screen and Test Summary screen Copyright© 2017 Airmar Technology Corporation... -
Page 31: Sharing Test Results
Sharing Test Results IMPORTANT: If your test results say “Out of Range”, email the Transducer Results to Airmar or your service representative. Do NOT remove the transducer at this time. • Transducer Results can be sent to a boat owner, dealer, installer, an Airmar technician, or others. -
Page 32: Interpreting Test Results
• The inflection points of the Transducer Results plot line and the Factory Data curve do not need to meet acceptable minimum impedance range inflection points acceptable frequency range Figure 28. Understanding the graph Copyright© 2017 Airmar Technology Corporation... -
Page 33: Testing In Small Bucket Of Water
• Transducer Results produced from a small bucket will have more minimum and maximum data points. • Data may cross the Factory Data plot line many times. examples of data points Figure 29. False “Out of Range” results taken in a small bucket of water Copyright© 2017 Airmar Technology Corporation... -
Page 34: In Range" Transducer Results
• The inflection points of the Transducer Results plot line and the Factory Data curve do not need to meet Figure 30. Conventional transducer: Example of “In Range” Transducer Results Copyright© 2017 Airmar Technology Corporation Figure 31. Chirp transducer: Example of “In Range” Transducer Results Copyright© 2017 Airmar Technology Corporation... -
Page 35: Out Of Range" Transducer Results
• The inflection point of the Transducer Results plot line will be outside the dotted lines. Figure 32. Conventional transducer: Example of “Out of Range” Transducer Results Copyright© 2017 Airmar Technology Corporation Transducer Results plot line Figure 33. Chirp transducer: Example of “Out of Range” Transducer Results... -
Page 36: Corrupt Data
• The transducer has reached the end of its working life. Software Revisions Airmar may release updated versions of the SensorCheck software. These revisions will be automatically updated on your device through the App Store or Google Play Store. Customer Service Contact Airmar Technical Support at tdt1000@airmar.com. - Page 37 35 Meadowbrook Drive, Milford, New Hampshire 03055-4613, USA www.airmar.com...
