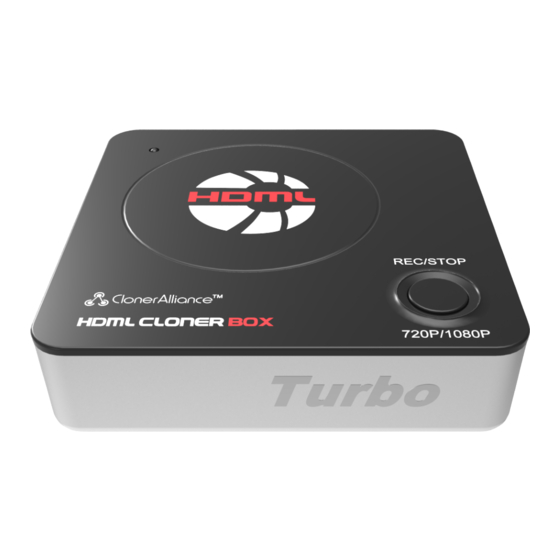

ClonerAlliance HDML-Cloner Box Turbo User Manual
  1. Manuals
  2. Brands
  3. ClonerAlliance Manuals
  4. DVR
  5. HDML-Cloner Box Turbo
  6. User manual

ClonerAlliance HDML-Cloner Box Turbo User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

HDML-Cloner Box Turbo User Manual
Record Videos For Colorful Life
Keep all Videos in your hands via HDMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDML-Cloner Box Turbo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClonerAlliance HDML-Cloner Box Turbo

Summary of Contents for ClonerAlliance HDML-Cloner Box Turbo

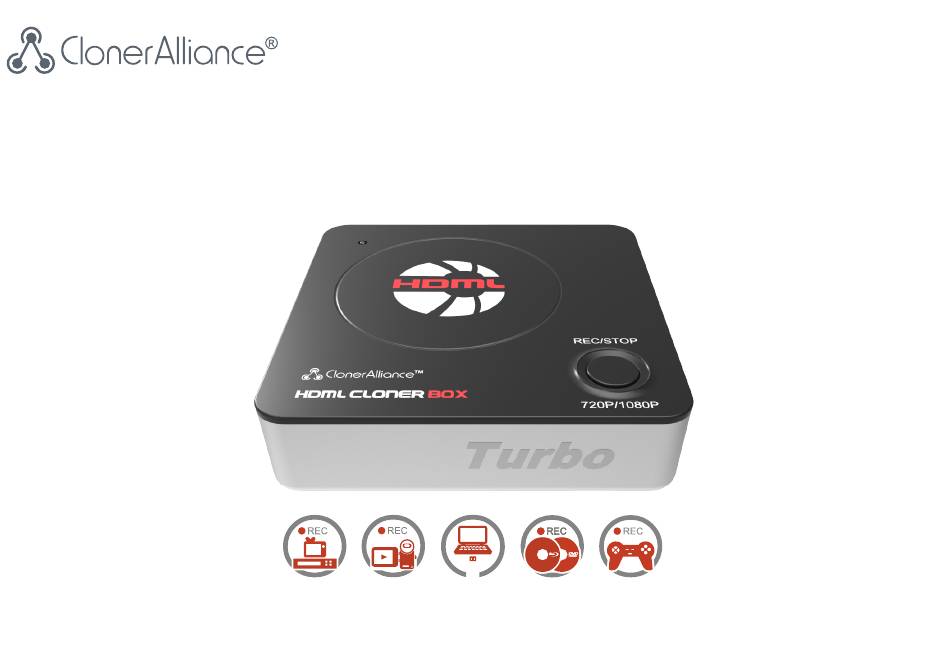

  • Page 1 HDML-Cloner Box Turbo User Manual Record Videos For Colorful Life Keep all Videos in your hands via HDMI...
  • Page 2 HDML-Cloner Box Turbo User Manual This documentation describes how to use HDML-Cloner Box Turbo (Model: HCB-988BT) device. Copyright Notice Copyright © ClonerAlliance® Inc. All rights reserved. Documentation Version 2.5.1 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance™...
  • Page 3 Before using HDML-Cloner Box Turbo, please ensure that you read and under- stand the safety precautions below: 1. Do not attempt to open the case of HDML-Cloner Box Turbo or modify it in any way, as this will void the warranty.

  • Page 4: Table Of Contents

    ................14 How to preview video in OBS Studio with HDML-Cloner Box Turbo? Connection Guide of HDML-Cloner Box Turbo .

  • Page 5: Getting Started

    GETTING STARTED 1.1 Box Contents • a. HDML-Cloner Box Turbo • d. Power Adapter • b. HDMI Cable • e. User Manual • c. Micro-USB to USB Cable • f. USB Flash Drive...

  • Page 6: Product Diagram

    1.2. Product Diagram 1.2 Product Diagram...
  • Page 7 7. MIC: Insert the microphone plug into this jack to input voice. 8. TO PC: Connect the Micro-USB to USB cable between PC and HDML-Cloner Box Turbo for recording videos to PC. This function must be realized together with HDML-Cloner Pro Helper.

  • Page 8: How To Record Videos To Usb Storage Device

    HDML-Cloner Box Turbo 1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Turbo. 2. Connect HD video output devices to “IN”port on HDML-Cloner Box Turbo via an HDMI cable.

  • Page 9: Record/Capture

    2.2 Record/Capture 1. After all devices are connected properly, please press the“ON/OFF”button to switch on the power of HDML-Cloner Box Turbo. After turning on HDML-Cloner Box Turbo. The LED light will be solid Blue or Green. Then turn on other devices.
  • Page 10 Tips 1. When the storage space of the USB flash drive or mobile hard disk is full, HDML-Cloner Box Turbo will stop recording. 2. If you press and hold the REC/STOP button for a few seconds, it will work as a switch between 720p and 1080p. You...

  • Page 11: How To Record Videos To Pc

    HOW TO RECORD VIDEOS TO PC 1. Install HDML-Cloner Pro Helper Note Prior to installing HDML-Cloner Pro Helper, please make sure you are using Windows 7 or later versions and your PC is equipped with USB 2.0 or 3.0 port. •...

  • Page 12: Connect

    1. Connect the video player to the “IN”port on HDML-Cloner Box Turbo via an HDMI cable. 2. Connect the Micro-USB to USB cable between the “To PC”port and the USB port of PC. 3. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Turbo.
  • Page 13 Player STORAGE POWER HDML-Cloner Box Turbo After all devices have been connected properly, please power on all connected devices. The Windows operating system will prompt “Found a new hardware”and install the driver automatically. Please make sure “Full HD Capture Device”is installed successfully and appears in the Device Manager (Right click My Computer –...
  • Page 14 3.1. Connect...

  • Page 15: Register Hdml-Cloner Pro Helper

    3. How to record videos to PC 3.2 Register HDML-Cloner Pro Helper Please register HDML-Cloner Pro Helper first before using, otherwise it can only be used for 7 days. Launch HDML-Cloner Pro Helper. Click ”Input registration code” button in the auto pop-up Register window. Fill in your proper Email address, real name and code.
  • Page 16 3.2. Register HDML-Cloner Pro Helper Scan the QR code below to get the code directly. Or visit https://www.cloner-alliance.com/register, fill in your product S/N. You will get a registration code directly. It is advised that you input your correct email address to receive the registration code at the same time.
  • Page 17 3. How to record videos to PC For more details about recording videos to PC, please scan the QR code below to visit the Frequently Asked Questions. Or click here...

  • Page 18: Record/Capture

    3.3. Record/Capture 3.3 Record/Capture 1. After all devices are connected properly, insert the video disc into the drive of the video player and run HDML-Cloner Pro Helper.
  • Page 19 3. How to record videos to PC 2. Click to start recording.
  • Page 20 3.3. Record/Capture 3. Click to stop recording. Tip: During recording, you can also click to pause at any- time. When you want to resume, please click to continue recording. Besides, you can Click to take screenshots, click to capture GIF animation function by clicking Software interfaces may vary depending on the version.
  • Page 21 3. How to record videos to PC 4. After recording, click to view the recorded video. Then you can click to play back the video directly.
  • Page 22 3.3. Record/Capture HDML-Cloner Pro Helper also supports recording videos at the scheduled time. Click to enter the ”Setup” window. Then click the ”Schedule Recording” button.
  • Page 23 3. How to record videos to PC Please enable schedule recording first, and set the Start time and duration for schedule recording. Then click “OK”. Then videos will be recorded automatically at the scheduled time.

  • Page 24: How To Preview Video In Obs Studio With Hdml-Cloner Box Turbo

    2. Connect the Micro-USB to USB cable between the “TO PC”port and the USB port of PC. 3. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of HDML-Cloner Box Turbo. 4.2 Install HDML-Cloner Pro Helper and OBS Studio If you want to use OBS to preview/record/livestream videos via HDML-Cloner Box Turbo, you need to install both HDML- Cloner Pro Helper and OBS Studio first.

  • Page 25: Setting For Preview Video In Obs Studio

    4. How to preview video in OBS Studio with HDML-Cloner Box Turbo? 4.3 Setting for preview video in OBS studio 1. Run Open Broadcaster Software (OBS Studio).
  • Page 26 4.3. Setting for preview video in OBS studio 2. Please click “+”below “Sources”and select “Video Capture Device”from the pop-up menu, then click “OK”.
  • Page 27 4. How to preview video in OBS Studio with HDML-Cloner Box Turbo? 3. In the “Properties for Video Capture Device”window, select “HDML-Cloner Box Device”in the dropdown list of “Device”, and then scroll down to the “Audio Output Mode”option. Please select “Output desktop audio...
  • Page 28 4.3. Setting for preview video in OBS studio...
  • Page 29 4. How to preview video in OBS Studio with HDML-Cloner Box Turbo? 4. Now you can preview the video. Note: Please do NOT run HDML-Cloner Pro Helper and any Third-Party Live Streaming Software like OBS Studio at the same time. You need to run each of them separately.

  • Page 30: Supported Resolutions

    SUPPORTED RESOLUTIONS 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p) Input 1280x720 (60p), 1280x768 (60p), 1280x800 (60p) Output 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) Recording 1920x1080 (30p), 1280x720 (60p), 1280x720 (30p) 640x480 (60p), 720x480 (60p), 720x576 (50p)

  • Page 31: Product Specifications

    Max: 10Mbps Note: HDML-Cloner Box Turbo will record several 2GB files if the USB is in FAT32 format. If in NTFS format, HDML-Cloner Box Turbo will record only 1 file with greater size. Maximum storage capacity 2TB Power supply DC 5V/2A Weight 5.3 oz...

  • Page 32: Frequently Asked Questions

    My TV Has A Black Screen When Using HDML-Cloner Box Turbo, what should I do? Don’t worry, it’s very easy to solve this problem. Please scan the QR code below to find the answer.
  • Page 33 7. Frequently Asked Questions Please format your USB stick or unplug the USB stick from the USB port and plug it into HDML-Cloner Box Turbo again. If the solutions don’t work, please send an email to support@cloner-alliance.com for direct help.

  • Page 34: Contact Us

    CONTACT US If you encounter any problem when using our products, please contact us by support@cloner-alliance.com or call 1-844-9-CLONER (toll free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by market@cloner-alliance.com.

  • Page 35: After Sales Warranty

    AFTER SALES WARRANTY ClonerAlliance Inc. provides 30-Day No Hassle Return(No Additional Fee) and 2-Year Replacement Warranty Service for all hardware. Please rest assure to use ClonerAl- liance products.

  • Page 36: Disclaimer

    DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade- mark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies.
  • Page 37 Toll free: 1-844-9-CLONER Support Email: support@cloner-alliance.com Market Email: market@cloner-alliance.com www.cloner-alliance.com Copyright ClonerAlliance Inc. All rights reserved.
