MKH 8070
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKH 8070 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennheiser MKH 8070

Summary of Contents for Sennheiser MKH 8070

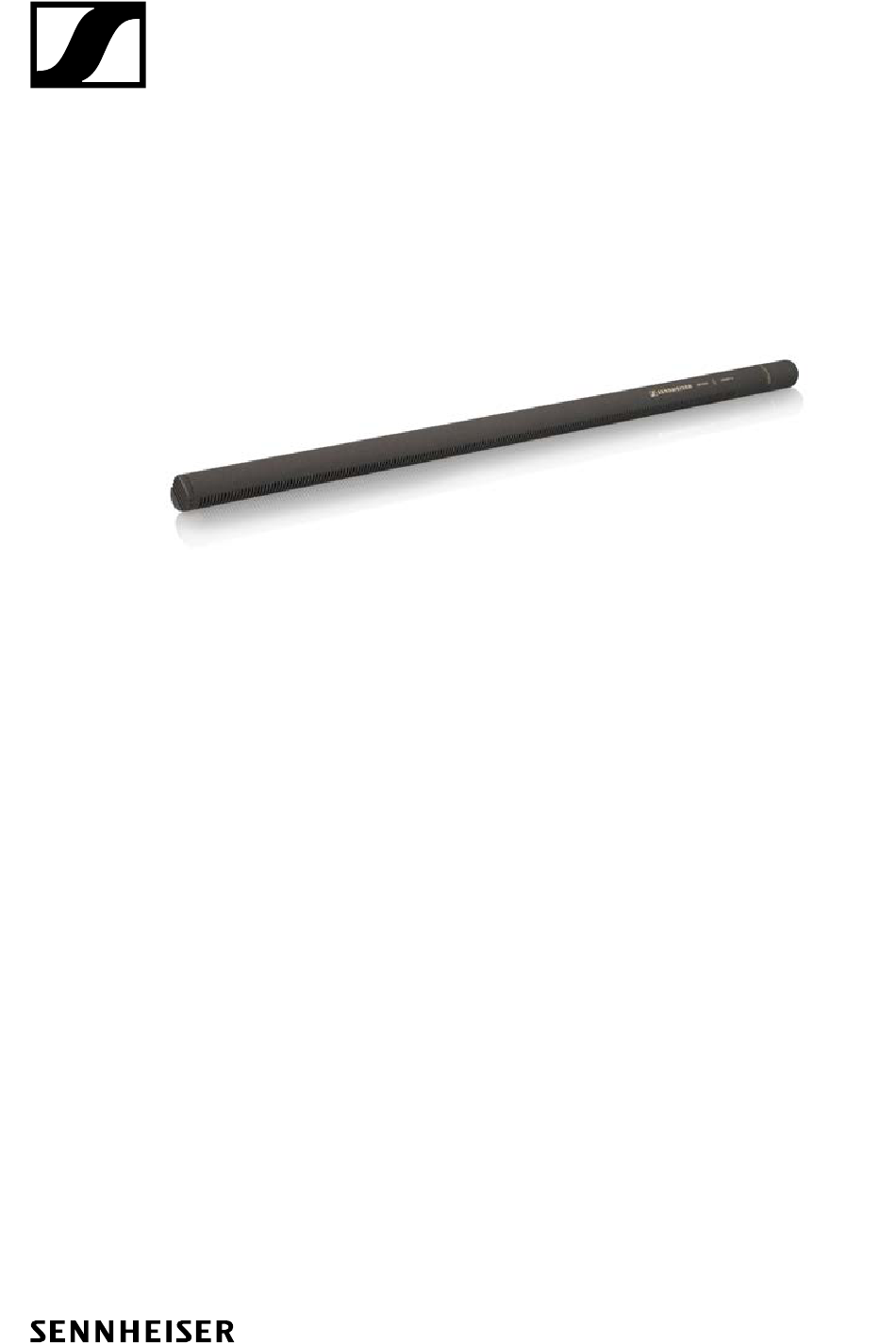

  • Page 1 MKH 8070 Instruction manual...

  • Page 2: Important Safety Instructions

    It is considered improper use when the product is used for any application not named in the corresponding instruction manual. Sennheiser does not accept liability for damage arising from improper use or misuse of this product and its attachments/accessories. Before putting the products into operation, please observe the respective...

  • Page 3: Delivery Includes

    Delivery includes Delivery includes • Microphone, consisting of the MKH 8070 microphone head and the MZX   8 000 XLR module • MZQ 8070 microphone clamp • MZW 8070 foam windshield • Instruction manual • Frequency response sheet • Threaded transport tube...

  • Page 4: Connecting The Microphone

    • XLR-3 connector, balanced To connect the MKH 8070 to a mixing console or recording device: f Connect the socket of the microphone cable to the microphone. f Connect the connector of the microphone cable to the mixing console or recording device.

  • Page 5: Using The Windshield

    Alternative windshields are available as accessories and can be found on the MKH 8070 product page at www.sennheiser.com. Using optional modules You can retrofit and extend the microphones of the modular MKH 8000 micro- phone series by using optional modules.
  • Page 6 Transporting the microphone f Let the microphone dry if you used it under extreme climatic conditions. f If necessary, remove the windshield or take the microphone out of the basket windshield. f Slide the microphone into the transport tube. MKH 8070...

  • Page 7: Specifications

    48 V ± 4 V (P48, IEC 61938) Current consumption 3,3 mA Diameter 19 mm Length 432 mm with MZX 8000 XLR module 465 m Weight 300 g with MZX 8000 XLR module 332 g Operating temperature -10 °C to +60 °C MKH 8070...

  • Page 8: Polar Pattern

    Specifications Polar pattern 0° 30° 30° 60° 60° 90° 90° 120° 120° 125 Hz 2,000 Hz 150° 250 Hz 4,000 Hz 150° 180° 500 Hz 8,000 Hz 1,000 Hz 16,000 Hz Frequency response 90° 0° MKH 8070...

  • Page 9: Manufacturer Declarations

    Manufacturer declarations Manufacturer declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on these products. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. Warranty FOR AUSTRALIA and NEW ZEALAND ONLY: Sennheiser Australia Pty Ltd provides a warranty of 24 months on these prod- ucts.
  • Page 10 Further information on the recycling of these products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner. You may also be able to return electrical or electronic equipment to your distributor, if they are legally required to do so. By dispos- ing of your batteries properly, you are helping to protect public health and the environment.
  • Page 11 Compliance Compliance Europe EN 55032 EN 55035 FCC 47 CFR 15 subpart B Canada Industry Canada ICES_003 China Australia/New Zealand MKH 8070...
  • Page 12 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com Printed in Germany, Publ. 07/23, 581395/A04...
