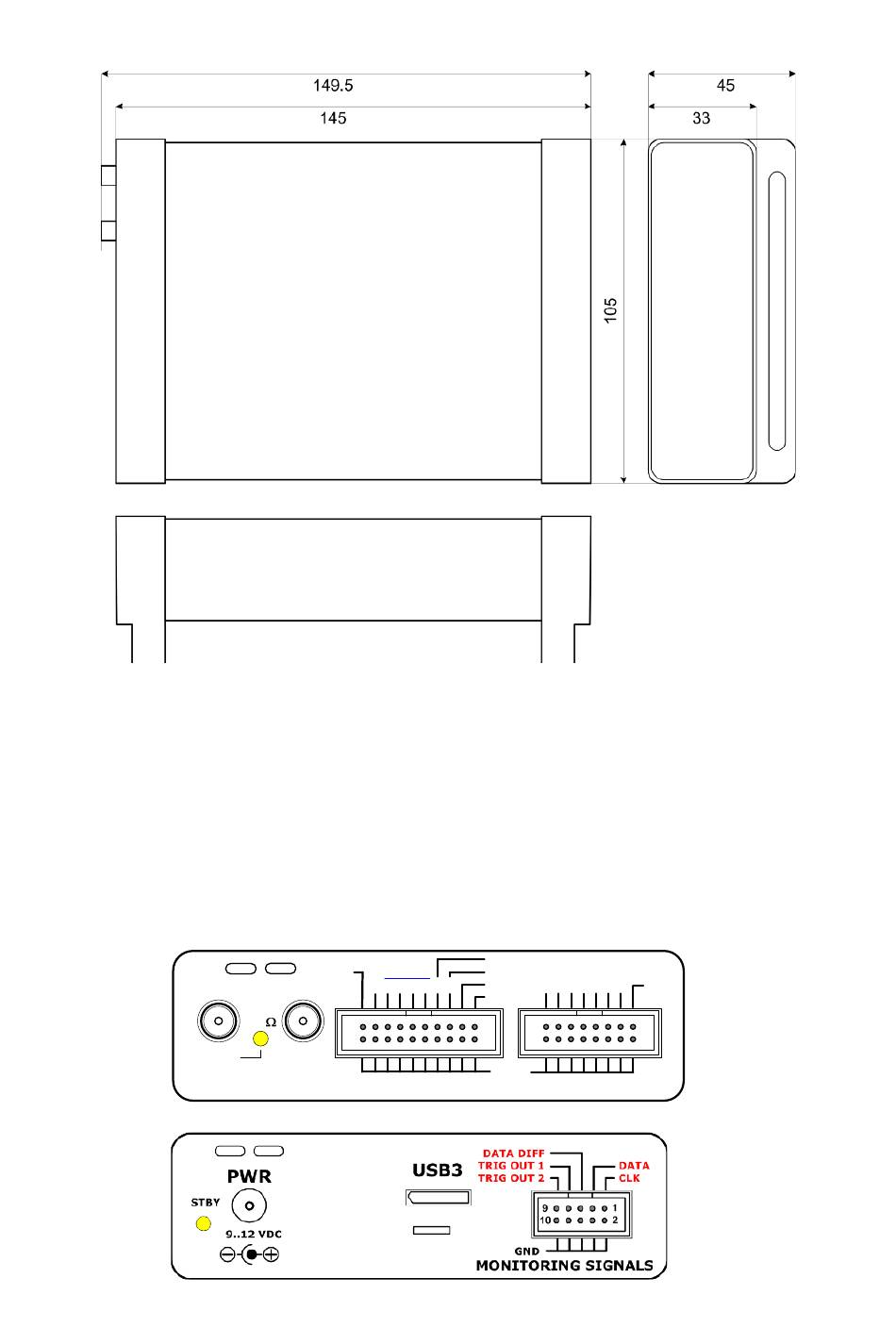

1.1. Hardware dimension

All dimensions are in millimetres.
Unit weight : 490 g.
Body material: anodised aluminium.

1.2. User Interface

All the hardware controllable features are accessible through the 4.3" colour touch screen of the
unit.

1.3. Connectivity

The unit has multiple connectors located on the left side and on the right side.
INPUT
STBY
SoundWire Protocol Analyzer
TRIG IN DATA
GPI
0 1 2 3 4 5 6
50
19
20
OUTPUT
CLOCKS GPI / PDM
PWR
9..12 VDC
User Manual V1.0
PDM BCKO
BCKI
SCL
6 5
SDA
1 15
2 16
GND
SOUNDWIRE
DATA DIFF
USB3 TRIG OUT 1
TRIG OUT 2
9
10
GND
MONITORING SIGNALS
DATA
CLK
4 3 2 1 0
1
2
(left)
DATA
CLK
1
2
(right)
