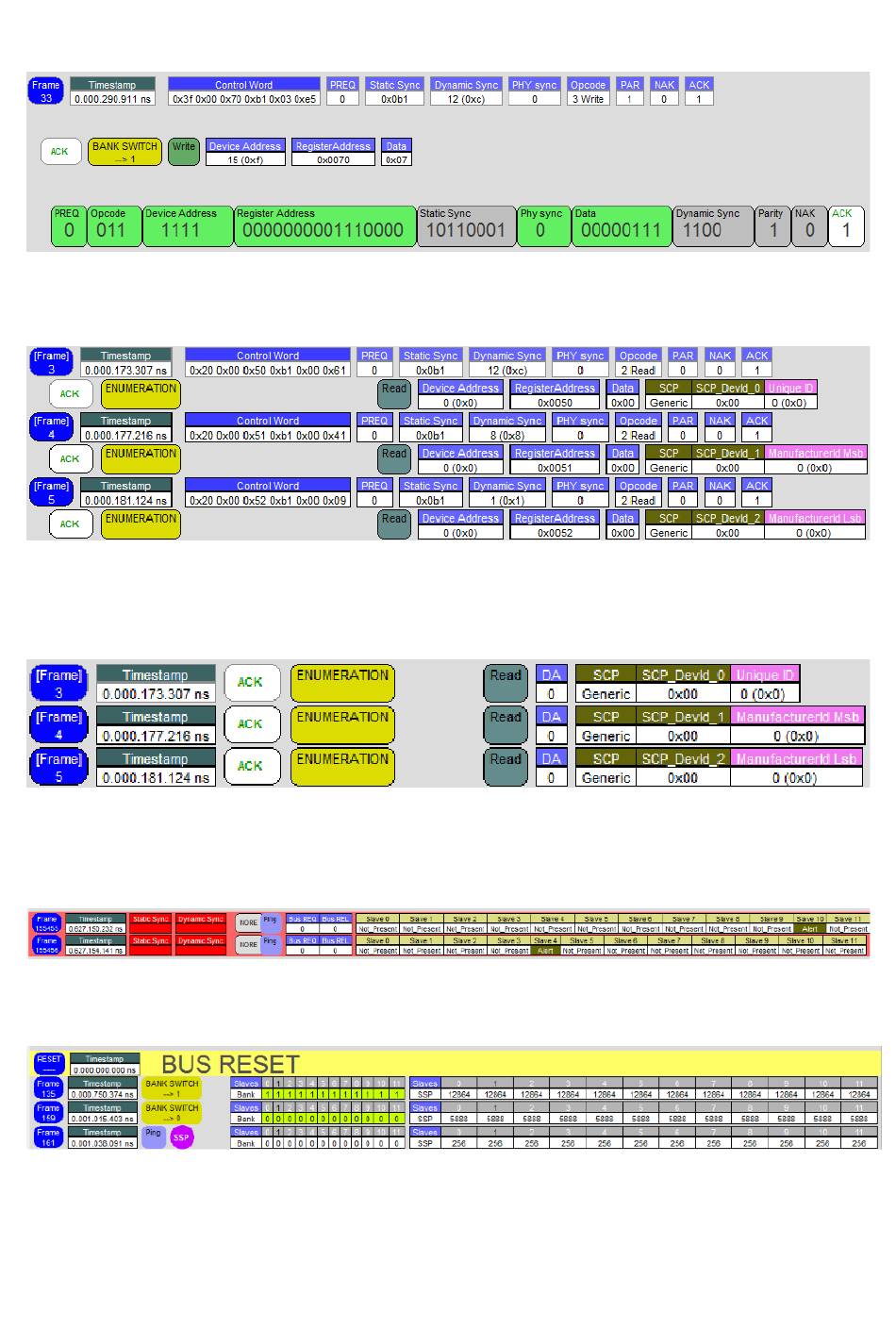

Exploded. Each message is decoded at the bit level and displayed as such.
-
Synthetic. The messages are decoded and shown in a list.
-
Application. The frame information is hidden and messages only show the relevant information
to understand the message flow.
-
Errors. All frames that are obtaining errors are listed here. That is easy to navigate to a certain
error and then switch back to a more generic view such as Application view.
-
Enumeration. Here all enumeration related events are shown.
SoundWire Protocol Analyzer
User Manual V1.0
21
of
29
