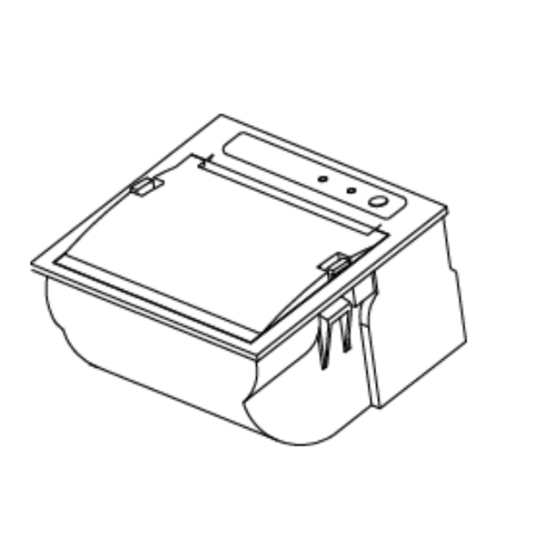

- Page 1 PORTI-P40 MODEL (PANEL PRINTER) WOOSIM SYSTEMS Inc. #501, Daerung Technotown 3th, 448, Gasan-Dong, GeumChun-Ku, Seoul, Korea Tel : +82-2-2107-3700 Fax : +82-2-2107-3707 URL: http://www.woosim.com All specifications are subjected to change without notice...
- Page 2 PORTI-P40 panel printer operator’s manual. Copyright 2007 by Woosim Systems Inc. All rights reserved. The information contained in this manual is the property of Woosim Systems Inc. And may not be reproduced in whole or in part without the prior written permission of...
-
Page 3: Installation
Introduction The PORTI-P40 is an extremely simple and functional panel printer. It is the ideal solution for applications which require the immediate printing of data on a paper, whether they be of an industrial, professional or laboratory nature. Medical analyzer, Industrial instrument, Recorder, Geological analyzer, Underground analyzer, Chemical analyzer, Metallic analyzer, etc. - Page 4 Please follow the precautions below to enjoy and maintain the full performance of the printer. Using the Printer Be careful not to drop or bump the printer on a hard surface. Do not install the printer in direct sunlight or such areas. Suitable environment for the use of the printer is as follows : Operating temperature : -10°C to 40 °C Relative humidity : 10% to 90% (no condensation)
- Page 5 CONTENTS 1. Outline ............................6 1.1. Model classifications .........................6 1.2. Product Part Number System.....................7 1.3. Specifications ..........................8 2. Setting up the printer ........................9 2.1. Printer & Accessories ........................9 2.2. Printer Features........................10 2.3. Installation ..........................11 2.4. Replacing the paper roll......................12 2.5. Setting operation mode......................14 2.6.
- Page 6 PORTI–P Model name Interface None : Serial(UART or TTL) Size of roll paper 40 : 57mm wide, 40 Ø Power None : DC 9V...
- Page 7 Model name Interface Spec. Wired Wireless RS-232C Bluetooth SC30 IrDA HPIR RS-485 None Parallel None Example) 1. Porti-S40 Serial/Bluetooth Part No. S40/A1 2. Porti-SC30 Bluetooth Only Part No. SC30/Z1...
- Page 8 Item Specification Direct thermal line printing Printing method Characters per line 42cpl Eng. : 9*24dots, 12*24dots Kor. : 16*24dots, [24*24dots] Character size 203dpi, 8dots/mm Resolution 2-inch (48mm, 384dots) Print width 50mm/sec Printing speed Dimensions 80 * 75 * 40 mm (include PCB ) Weight 153g...
- Page 9 When unpacking your printer box make sure it contains the printer and all accessories. If any accessories are missing or damage, please contact your dealer for assistance Porti-P40 Roll paper...
- Page 12 Note : Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly. 1. Make sure that the printer is not receiving data; otherwise, data may be lost. 2.
- Page 13 5. Be sure to note the correct direction that the paper comes off the roll. 6. Pull out a small amount of paper and then close the cover as shown. 7. Tear off the paper as shown.
- Page 14 1. Press the MODE Button until the Error Lamp twinkles 5 times. 2. Change the mode and option using the MODE Button according to the MODE (Table1). MODE button : use for changing OPTION status. (Error Lamp) FEED button : use for changing MODE status. (Power Lamp) Ex) The defaults of the printer are : UART/ 9600 bps/ 8 data bit / No parity...
- Page 15 Press FEED button one time, Power Lamp twinkles twice and Error Lamp twinkles one time. Press the MODE Button two times, and the Error Lamp twinkles three times. (The baud rate has set to 38,400 bps) Press FEED Button one time, Power Lamp twinkles 3 times and Error Lamp...
- Page 16 POWER Lamp ERROR Lamp Option (Green) (Red) UART Communication Port Protocol UART 9600 bps 19200 bps Baud Rate 38400 bps 57600 bps 115200 bps 7 Data bit Data Bit 8 Data bit No Parity Parity Bit Even Parity Odd Parity 1 Stop Bit Stop Bit 2 Stop Bit...
-
Page 17: Power Supply
The following specifications are requested for Power supply. INPUT : DC 9V / Max 3A Avoid using power supply which its power capacity of power current is extremely high. -
Page 18: Interface
<CN2> The Porti-P40 printer has a serial(UART or TTL) serial interface and power connector is connected by 6 pin female connector. In the following table, the signals present on the connector are listed: Pin no. Signal name Direction Function INPUT... -
Page 19: The Self Test
Button - FEED : When the printer is on, paper can be feed manually by pressing and holding the FEED button for more than one second. Panel Lamp - POWER(Green) : Printer is ON and ready to receive data. - ERROR (Red) : Indicates a fault condition or a printer error. (i.e : no paper, paper cover opened. - Page 20 Type : Thermal Paper Paper width : 57mm Paper thickness : 60±5 Outer diameter : Ø40mm Recording side : Outside of roll Cautions 1. Do not paste the paper to the core. And the roll paper which has near end mark printing on its near end is recommended. 2.
