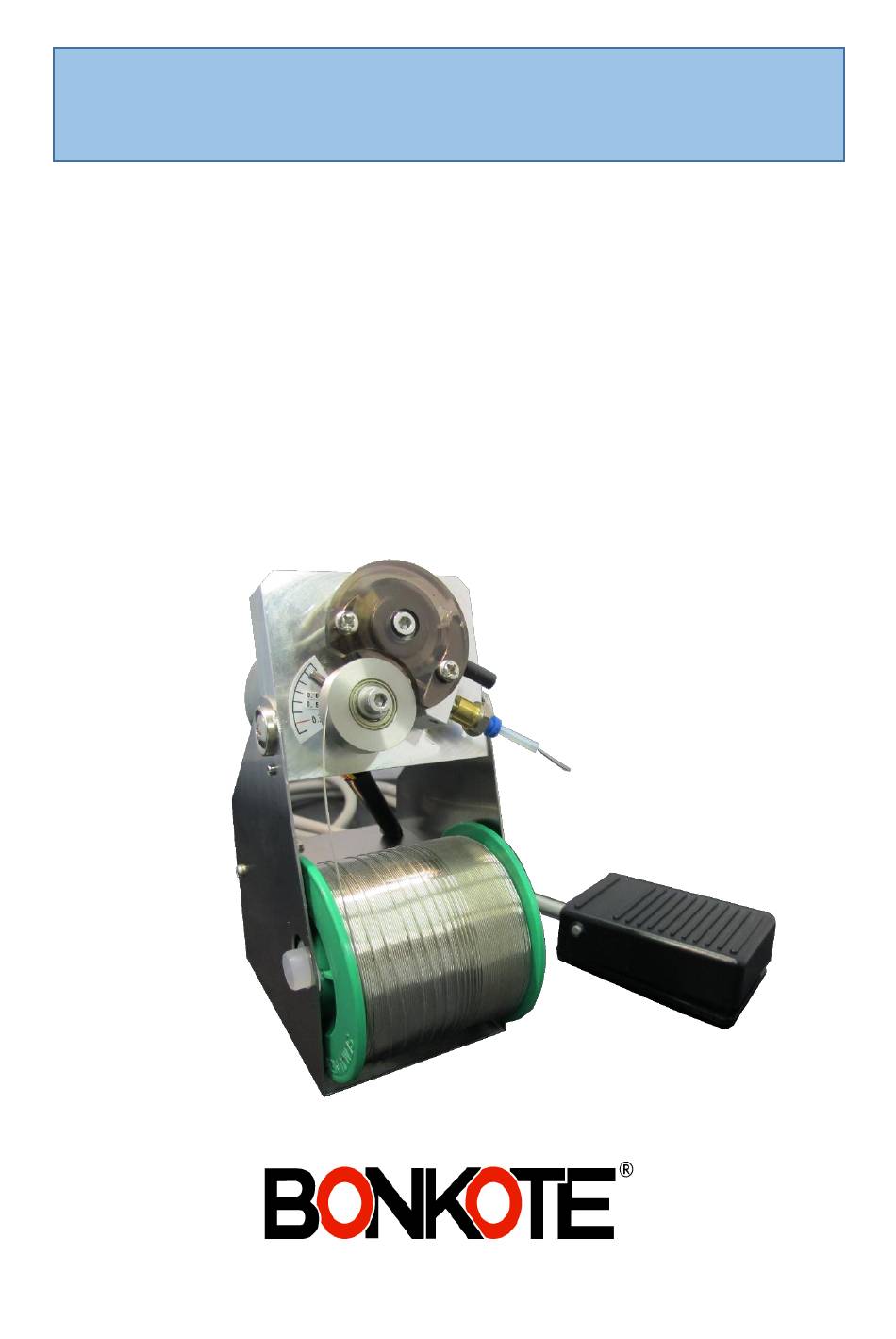

- Page 1 V-SOLDER BON-8103／8203 V-cut solder machine Applicable solder wire diameter 0.3 ~ 0.8 mm User’s manual Preparation in June 2017 The 2 edition JAPAN BONKOTE CO., LTD.
-
Page 2: Table Of Contents
Contents page 1. Preface ·························································································· 1 2. Notes for safety ··············································································· 1 3. Notes for installation and use ··························································· 2 4. How to use V-cut solder machine (A) Contents and name ····································································· 3 (B) How to set solder wire ································································· 4 (C) Depth of V-groove and adjustment ················································... -
Page 3: Preface
1. Preface Thank you very much for purchasing the V-cut solder machine. The V-cut solder machine is effective to prevent solder balls & flux scattering by making V-groove onto a solder wire. If your solder wire originally have solder ball prevention effect, this machine may not provide you with a sufficient effect. -
Page 4: Notes For Installation And Use
3. Notes for installation and use For safety, make sure to observe the following matters. This machine is designed with ground specification. For safety, be sure to use a grounded electrical outlet. If you do not have such outlet, install it separately. ... -
Page 5: (A) Contents And Name
4. How to use (A) Contents and Name Body 3 mm Hexangular wrench Power switch (back side) Reel shaft 3P power cable BS1363 plug for 220VAC Footswitch V-blade Protection cover 3 mm Hexangular wrench Guide pulley Adjustment lever Cleaner pin Wire guide nozzle... -
Page 6: (B) How To Set Solder Wire
(B) How to set up and adjust solder wire diameter 1) Loosen the screw of Guide pulley with a 3 mm hexangular wrench. 2) Set the adjustment lever to your desired positon manually. ※ Applicable solder wire diameter: DIA. 0.3 ~ 0.8 mm 3) Tighten the screw of Guide pulley with a 3 mm hexangular wrench. - Page 7 4) Insert the reel shaft into the solder wire reel and set it to the reel holder at the bottom. Refer to the right photo. Make sure that each diameter you set up and the solder wire is the same. ※...
-
Page 8: (C) Depth Of V-Groove And Adjustment
(C ) Depth of V-groove and adjustment 1) Cut a V-grooved solder wire vertically into 4 pieces by 2 cm intervals. When cutting, place the V-grooved section to topside so that it will be easier to observe it.. 2) Observe each cut section with a lupe whether it looks almost the same as below fig. -
Page 9: (D) Cleaning
(D) Cleaning Make sure to turn off the power switch and pull out the plug when cleaning. (A) V-blade Remove the protection cover from the machine. Remove solder residues or flux residues sticking to the blade In order not to damage the blade, we suggest to use a cotton swab soaked with flux solvent like alcohol. -
Page 10: Specifications
5. Specifications Input voltage 100 VAC (BON-8103) / 220 VAC (BON-8203) Frequency 50 Hz 60 Hz Feeding amount 37 mm/sec. 44 mm/sec. Feeding method Footswitch Applicable solder diameter DIA. 0.3 ~ DIA. 0.8 mm Dimension 70W x 104D x 160H mm Weight 1175 g (body + power cable + footswitch) Power consumption... -
Page 11: Guarantee And After Sales Service
7. Guarantee and After sales service (A) Guarantee We will ship our products after severe factory tests and inspections. However, if you find any malfunctions or defects due to problem in workmanship or transportation, please contact your dealer or us. The guarantee period of your machine is in one year after purchased, except for replacement parts. - Page 12 JAPAN BONKOTE CO., LTD. 600-14 Kasahara-cho, Mito-shi, Ibaraki 310-0852 JAPAN TEL: +81 29-241-2725 FAX: +81 29-241-2726 URL: http://bonkote.co.jp E-mail: info@bonkote.co.jp...
