Bticino 346812 Manual

PIVOT 4 key
handset accessory
Description
4 key accessory for handsets 344032, and video handsets 344102, 344122, .
It must be installed inside the handset, in the preset location.
It can be used to perform the listed functions, based on the type of configuration set:
- Intercom call among various system devices and apartments (max. 5)
- control of actuators for additional door locks
- control of actuators for general uses and auto-switching on of the entrance panel
- mixed activations
- paging function through the 2 WIRE sound system
- enabling/disabling of home automation scenarios
- apartment intercom in two-family system
Configuration
The device must be configured fisicamente per stabilirne la operating mode:
M - Operating mode
It sets the operating mode allocated to the individual keys of the accessory block.
The mode changes depending on whether the apartment interface, 346850, has been
installed or not.
Configuration
Selection of MOD configurators
MODE FUNCTION OF KEYS WITHOUT 346850
MOD= Direct switching on of the EPs
Direct switching on of the EPs configured with P+1
1
Direct switching on of the EPs configured with P+2
2
Direct switching on of the EPs configured with P+3
3
Direct switching on of the EPs configured with P+4
4
Control of the actuator for generic loads (346200)
346200 configured with MOD=9 and P=P+1
1
346200 configured with MOD=9 and P=P+2
2
346200 configured with MOD=9 and P=P+3
3
346200 configured with MOD=9 and P=P+4
4
MOD= 1 Intercom among the apartment with N-1-5
MOD= 2 Intercom among apartments with interface 346850 – N=1-4
2 WIRE Video Door Entry system

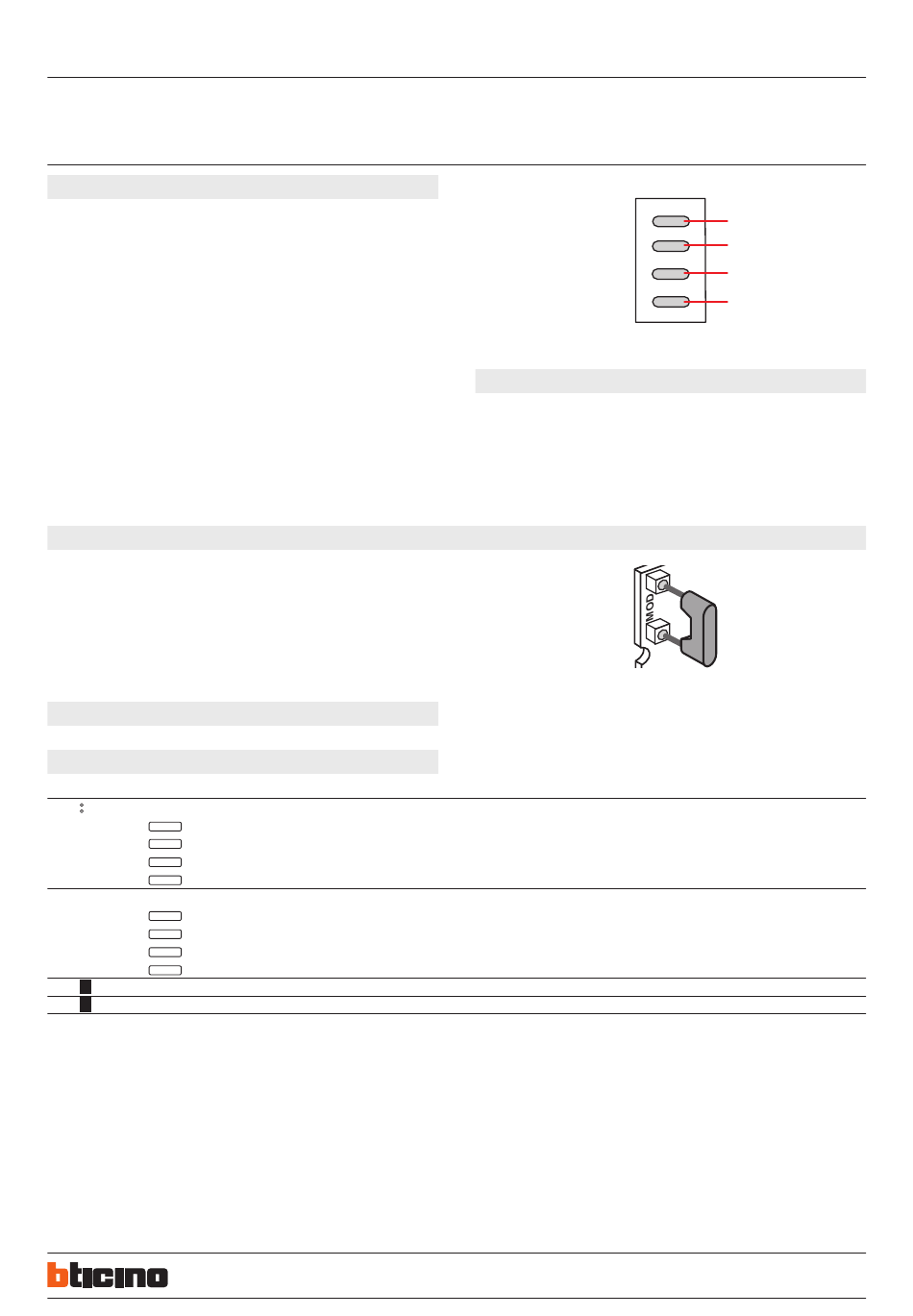

Legend
1 - Key 1
2 - Key 2
3 - Key 3
4 - Key 4
BT00653-a- EN 15/10/2013
1
2
3
4
FOR MULTI-FAMILY SYSTEMS WITHIN THE APARTMENT WITH 346850
Intercom among Handsets with N=1-5
Intercom among apartments configured with N=1-4
346812
1
2
3
4
1
1
2
3
4
