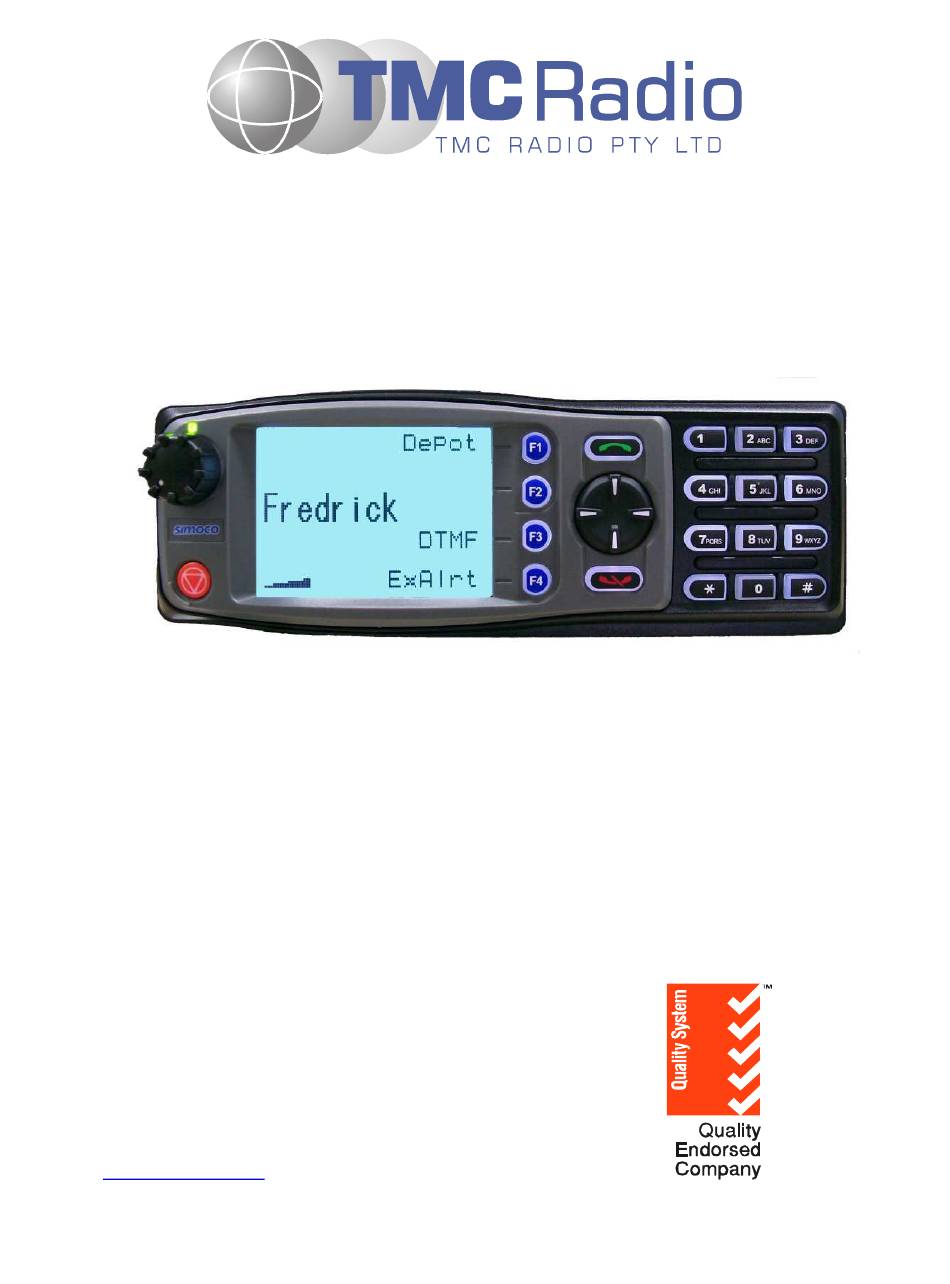

- Page 1 SRM9030plus Mobile Radio Transceiver MPT1327 - Trunked Operating Instructions TNM-U-E-0093 Issue 1.1 July 2008 TMC Radio Pty. Ltd. 1270 Ferntree Gully Road Scoresby Victoria, 3179 Australia www.tmcradio.com ISO9001 Lic.QEC20848 SAI Global...
- Page 2 SRM9030plus ~ Trunked Mobile Radio User Guide Associated Documentation The following documentation is available for use with the SRM9000 series of products: TNM-I-E-0005 SRM9000 Series Installation Instructions TNM-M-E-0001 SRM9000 Service Manual TNM-U-E-0012 SRM9020 Trunked Operating Instructions TNM-U-E-0013 SRM9020 PMR Operating Instructions...
- Page 3 SRM9030plus ~ Trunked Mobile Radio User Guide Safety Do NOT operate your radio, without a handsfree kit, whilst driving a vehicle. Do NOT operate your radio in an explosive atmosphere. Obey the 'Turn Off Two-way Radios' signs where these are posted, e.g. on a petrol station forecourt.
-
Page 4: Table Of Contents
SRM9030plus ~ Trunked Mobile Radio User Guide CONTENTS 1. INTRODUCTION...................... 5 1.1 Overview ......................5 1.2 Installation ....................... 5 2. FRONT PANEL CONTROLS................... 6 3. MENU SYSTEM....................... 7 3.1 Menu navigation ....................7 4. MAIN MENU SCREENS ..................9 4.1 Phonebook Screen ..................9 4.2 Stored Calls Screen .................. - Page 5 SRM9030plus ~ Trunked Mobile Radio User Guide 8. FUNCTION BUTTONS ..................27 8.1 Alarm ......................27 8.2 Auxiliary ......................27 8.3 Call ......................... 27 8.4 Call Short Form Dial 1 – 4 ................27 8.5 Clear ....................... 27 8.6 DTMF Mode....................27 8.7 External Alert ....................
-
Page 6: Introduction
SRM9030plus. NSTALLATION As the installation of your SRM9030plus Radio is a technical and possibly hazardous operation, we recommend that it is installed and set up for use by your dealer or an authorised installer. However, if you need information regarding the correct procedures for installation, please refer to the SRM9000 Series Installation Instructions supplied with the radio. -
Page 7: Front Panel Controls
SRM9030plus ~ Trunked Mobile Radio User Guide 2. FRONT PANEL CONTROLS Power/Volume FunctionButtons Keypad Green (Call) Label 1 Label 2 Phonebook Label 3 Label 4 Red (Clear) Function Button 5 Labels Menu Scroll Channel Scroll Figure 1 – SRM9030plus Control Head... -
Page 8: Menu System
SRM9030plus ~ Trunked Mobile Radio User Guide 3. MENU SYSTEM The SRM9030 plus radio software uses a programmed Menu structure to enable the operator to access all of the radio options. The structure of the menu (comprising up to fourteen screens) can be programmed to meet the specific needs of individual customers. - Page 9 SRM9030plus ~ Trunked Mobile Radio User Guide Menu System = Up/Down Scroll Press the Red Phone Button buttons to return to the Main Menu = Left/Right Scroll from any other menu buttons Setup SubMenus Main Menu Lists Users Phone Book...
-
Page 10: Main Menu Screens
SRM9030plus ~ Trunked Mobile Radio User Guide 4. MAIN MENU SCREENS HONEBOOK CREEN The Phonebook allows calls to be made to entries from the Phonebook list. • The Name Field shows the current selected entry from the Phonebook. • Press the Left/Right Arrow buttons to scroll through the Name Field entries. -
Page 11: Stored Calls Screen
SRM9030plus ~ Trunked Mobile Radio User Guide TORED ALLS CREEN This screen allows missed Voice calls (and received Status and Data messages) to be reviewed. icon will show in the Main Phonebook Screen when there is an entry in this Screen. - Page 12 SRM9030plus ~ Trunked Mobile Radio User Guide • When a Data call is stored the first 14 characters of the data Message are displayed. Press More to display the full message (up to 100 characters). © TMC Radio 2008 Page 11...
-
Page 13: Recall Screen
SRM9030plus ~ Trunked Mobile Radio User Guide ECALL CREEN Use this Screen to review any of the last eight recently placed calls. • Press the Left/Right Arrow buttons to scroll through the Recall list. • Press the Green Handset to Voice call the originator •... -
Page 14: Call Types Screen
SRM9030plus ~ Trunked Mobile Radio User Guide YPES CREEN Use this Screen to make different types of calls. • Press the Left/Right Arrow buttons to scroll through the available call types. • Press the Green Handset to make the special call to the current Phonebook identity. -
Page 15: Common Functions And Facilities
SRM9030plus ~ Trunked Mobile Radio User Guide 5. COMMON FUNCTIONS AND FACILITIES WITCH WITCH • Momentarily press the On/Off/Volume Knob to switch the radio ON . • The display will illuminate and show a ‘Welcome Message’ and the Trunk Identity of the radio. -
Page 16: Call Types
SRM9030plus ~ Trunked Mobile Radio User Guide 6. CALL TYPES The Trunking System allows the user to make a number of different types of call. The SRM9030plus supports most of the call types that can be accessed through the Trunk Network, including: •... -
Page 17: Making A Voice Call
SRM9030plus ~ Trunked Mobile Radio User Guide AKING A OICE Voice Calls may be made in several different ways: Using the Phonebook : • From the Phonebook Screen, scroll through the entries using the Left/Right Arrow buttons until the desired name is shown; then press the Green Handset button. -
Page 18: During A Voice Call
SRM9030plus ~ Trunked Mobile Radio User Guide During a Voice Call • When a call is placed, a Call Progress Message is displayed on the Message Line and the speaker emits Call Progress tones (See Appendix A for more details). -
Page 19: Making A Status Call
SRM9030plus ~ Trunked Mobile Radio User Guide AKING A TATUS Status Calls allow a Status Number to be sent between users. This “status number” can have a meaning that the user assigns to it. e.g. may mean : “On the Job”... -
Page 20: Receiving A Call
Stored Calls Screen, refer to Section 4.2. Notes: 1. The SRM9030plus responds in the same manner as above for Priority and Emergency calls. Emergency Calls show Emergency on the display. 2. Some Trunking Networks provide a different Call-Set-Up method which allows the radios to automatically answer incoming Voice Calls or allows the Caller to speak to the called person while the radio is ringing. -
Page 21: Receiving A Group Voice Call
SRM9030plus ~ Trunked Mobile Radio User Guide 6.3.2 Receiving a Group Voice Call A Group Voice Call differs from an individual call in that the operators do not answer the call. All radios that are members of the Group automatically connect to the group call. -
Page 22: Call Diversion
SRM9030plus ~ Trunked Mobile Radio User Guide IVERSION Incoming calls can be diverted to another radio, telephone, or PABX extension, using the Call Diversion facility provided by the Trunk Network. In many instances Call Diversion is only available after prior arrangement with the Network Operator. -
Page 23: Dtmf Operation
SRM9030plus ~ Trunked Mobile Radio User Guide DTMF O PERATION When the DTMF facility is enabled, (refer to Section 7.1.1), the keypad is automatically switched to DTMF mode whenever a Voice Call occurs. In this mode you can send DTMF tones for activating functions via a Voice Call or telephone connection. -
Page 24: Setup
SRM9030plus ~ Trunked Mobile Radio User Guide 7. SETUP The Setup sub-menus allow the operator to edit/modify the operation of some of the general functions of the radio. The programmer can restructure or restrict access to any or all of these menu screens and may rearrange them according to specific requirements. -
Page 25: Group
SRM9030plus ~ Trunked Mobile Radio User Guide 7.1.2 Group Use the Group menu to view groups of which you are a member. The lowest numbered Group ID will be displayed. Use the Left/Right Arrow buttons to scroll the available Groups. - Page 26 SRM9030plus ~ Trunked Mobile Radio User Guide 7.1.3.3 EDIT AN EXISTING ENTRY • Use the Left/Right Arrow buttons to scroll to the phonebook entry to be edited. • Press (Edit) to select the entry and present the number for editing.
-
Page 27: Contrast
SRM9030plus ~ Trunked Mobile Radio User Guide 7.1.4 Contrast The Contrast menu allows you to set the contrast level of the Display in the range from 0 to 15. • Use the Left/Right Arrow buttons to select the required level. - Page 28 SRM9030plus ~ Trunked Mobile Radio User Guide 8. FUNCTION BUTTONS LARM This function puts the mobile into Alarm mode. UXILIARY Toggle the external output. Call the currently selected entry on the screen. 1 – 4 HORT Calls the addresses defined in the address book short form dial entries.
- Page 29 SRM9030plus ~ Trunked Mobile Radio User Guide 8.10 S DTMF 1 This function sends a predefined sequence of up to 16 DTMF tones. 8.11 M This function changes the radio mode. Press and hold the button and it shows the current radio mode.
- Page 30 SRM9030plus ~ Trunked Mobile Radio User Guide 9. OPTIONS The following options are available, contact your dealer for further information. UICK ELEASE RANSCEIVER This kit provides a mounting cradle to allow the Transceiver to be quickly removed without having to undo unnecessary screws.
- Page 31 SRM9030plus ~ Trunked Mobile Radio User Guide TROUBLESHOOTING If, after reading this guide, you are unable to switch the radio on, check the following: • A fuse has not blown. Your installer should advise you of the location of the two fuses, •...
- Page 32 SRM9030plus ~ Trunked Mobile Radio User Guide Appendix A - Alert Tones and Messages 0.05 Key Press Call Setup in Progress Incoming Call or Called Radio is Telephone Ring Tone ringing Call Queued 0.3 .1 Number Unobtainable 5 Seconds Transmit Confirmed...
- Page 33 SRM9030plus ~ Trunked Mobile Radio User Guide These messages are displayed to give the user an indication of Call Progress. Incoming Call Accompanied by a ringing tone - indicates you need to answer the call. Indicates the radio is passing your request to the Trunk Network and Calling the Network is attempting to locate the Called party.
- Page 34 SRM9030plus ~ Trunked Mobile Radio User Guide Appendix B - Dial Strings and Numbering Conventions The following conventions and dial strings apply on the SRM9030 plus radio. Dial Strings DESCRIPTION CALL MODIFIER Abbreviated PSTN Codes **nn nn = 1 to 45...
- Page 35 SRM9030plus ~ Trunked Mobile Radio User Guide NUMBERING CONVENTIONS NUMBERING DESCRIPTION CONVENTION 0-19 Quick-Dialling (index must be in Phonebook) 20-89 Small fleet Unit number 90-99 Small fleet Group number 200-899 Large fleet Unit number 900-998 Large fleet Group number Emergency operator...
- Page 36 SRM9030plus ~ Trunked Mobile Radio User Guide Appendix C - Glossary A summary of common radio terms and some other terms used in this document, and their meanings, are given below. Alert tones The transceiver emits these tones to indicate an invalid operator or error.
- Page 37 SRM9030plus ~ Trunked Mobile Radio User Guide Appendix C – Compliance with RF Energy Exposure Guidelines (United States and Canada) RF ENERGY EXPOSURE AWARENESS AND CONTROL INFORMATION AND OPERATIONAL INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS. Before using your TMC Radio mobile two-way radio, read this important RF energy awareness and control information and operational instructions to ensure compliance with the FCC’s RF exposure guidelines.
- Page 38 SRM9030plus ~ Trunked Mobile Radio User Guide ICNIRP exposure limits for Occupational/ Controlled RF exposure environment at duty factors of up to 50% talk 50% listen and is authorised by the FCC for occupational use. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode.
