Minarik VFDP4X04-D230-PCM Quick Start Manual

VFDP4X04-D230-PCM

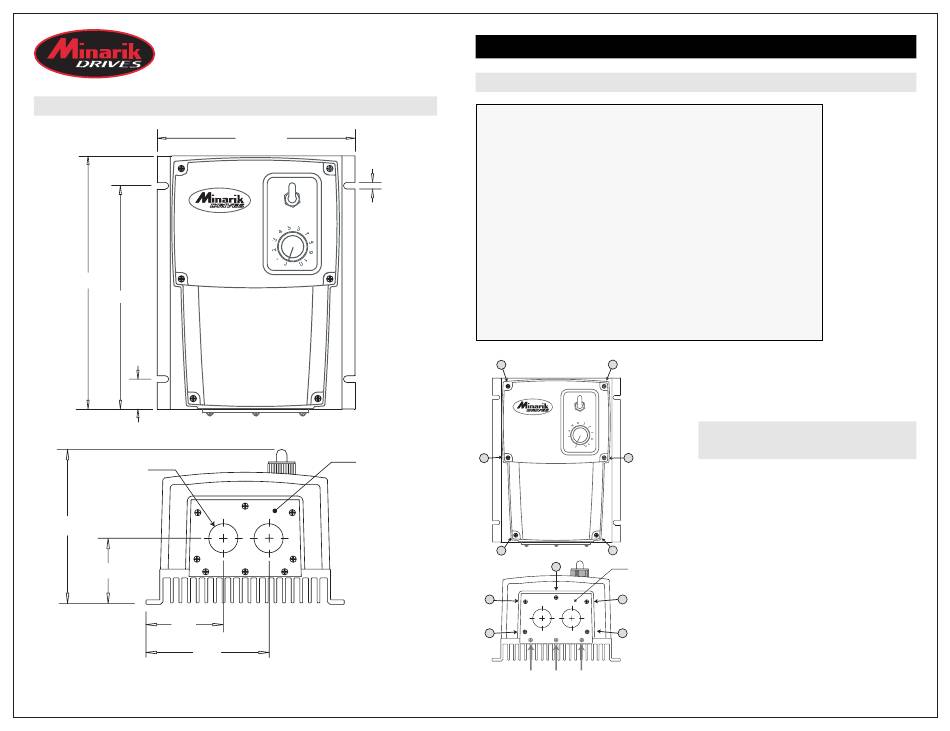

D I M E N S I O N S
7.200 [183]
6.350 [161]
ADJUSTABLE SPEED
AC MOTOR CONTROL
0.850
[22]
0.73 [18.5]
CONDUIT HOLES
2 PLACES
4.56 [116]
2.12 [53.8]
2.20
[55.9]
3.40
[86.4]
ALL DIMENSIONS IN INCHES [MILLIMETERS]

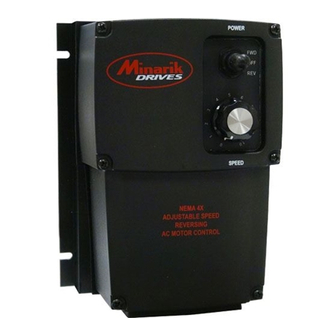

Variable Frequency Drive for
3-phase & single phase AC motors
5.625 [143]
POWER
FWD
OFF
REV
0.188
[5]
SPEED
REVERSING
BOTTOM PLATE
Q U I C K S T A R T
S P E C I F I C A T I O N S
1-Phase Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .* 115/230 VAC
1 or 3 -Phase Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230 VAC
Maximum Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 HP
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0 AC
AC Amps In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 / 10 amps
AC Voltage Input Range . . . . . . . . . . . . . .115/230 VAC ± 10%, 50/60 Hz single phase
Standard Carrier Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 KHz
Adjustable Braking Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 4 ADC
Adjustable Braking Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 10 Sec.
Adjustable Minimum Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 30 Hz
Output Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 120 Hz
Adjustable Maximum Output Frequency Range . . . . . . . . . . . . . . . . . . . . .30 - 120 Hz
Acceleration Time Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 12 secs
Deceleration Time Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 12 secs
Analog Input Voltage Range (S1 [-] to S2 [+]) . . . . . 0 - 5 VDC, 0 - 10 VDC, 4 - 20 mA
Input Impedance, S1 to S2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .~ 100K ohms
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5G max (20 - 50 Hz)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2 lbs
Ambient Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . .10° - 40° C
2
1
POWER
FWD
OFF
REV
3 4
SPEED
ADJUSTABLE SPEED
REVERSING
AC MOTOR CONTROL
5 6
1
BOTTOM PLATE
2 3
4 5
DO NOT REMOVE
THE THREE (3) SCREWS SECURING
THE BOTTOM PLATE TO THE HEATSINK
G U I D E
* Jumper settings MUST
match input line voltage.
Application of 230 VAC
line input when jumpers
are set for 115 VAC will
result in severe damage
to the drive.
0.1G max (> 50 Hz)
R E M O V I N G T H E
C A S E C O V E R
1. Remove the six (6) phillips screws on the
front case.
NOTE: The two shorter screws (#6 - 32 x 2
1/2) on the front case are used at hole
locations 5 & 6.
2. Remove the five (5) phillips screws on the
bottom plate.
NOTE: DO NOT REMOVE the three (3)
screws securing the bottom plate to the
heatsink.
