VP Keypad Access Device

Installation

Introduction

The VP Access Device (VP) controls entry to or exit from a secured
area. It works in conjunction with a controller and control software.
The VP can be used to control gate access, building access, room
access, elevator access, etc. and is designed for ease of use and
flexibility. Both the keypad and the large LCD are backlit for easy
visibility day and night. Mounting height for devices will vary with
local code regarding handicap access, emergency and fire access,
and other regulations.
Before installing the VP determine where and how the device will
be installed, since the mounting location is determined by how the
device will be used. For drive up access, install the device where it
can be reached from a vehicle's driver door. If the VP is used for walk
up access, install it where it can be accessed by a person on foot.

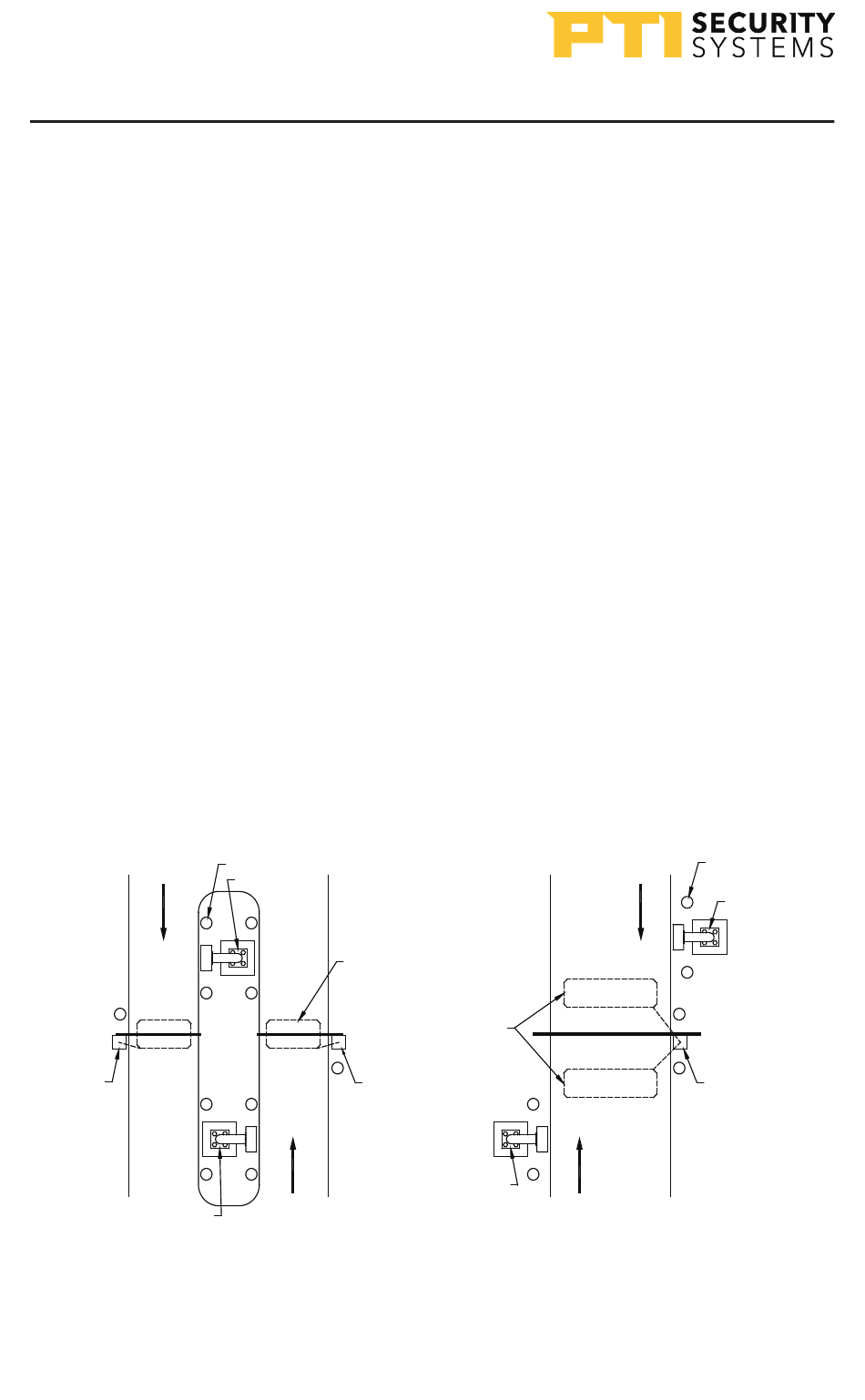

Drawing 1: Drive up accessability
Inside of property
BARRIER
OR PAD
ENTRY KEYPAD
Outside of property
2
DETECTOR
LOOP
DETECTOR
LOOPS
BARRIER
OR PAD
ENTRY KEYPAD
Inside of property
Outside of property
114A3868.E rev. 7-2017
BOLLARD
EXIT KEYPAD
SLIDE GATE
OR PAD
