nLight ECLYPSE Enclosure

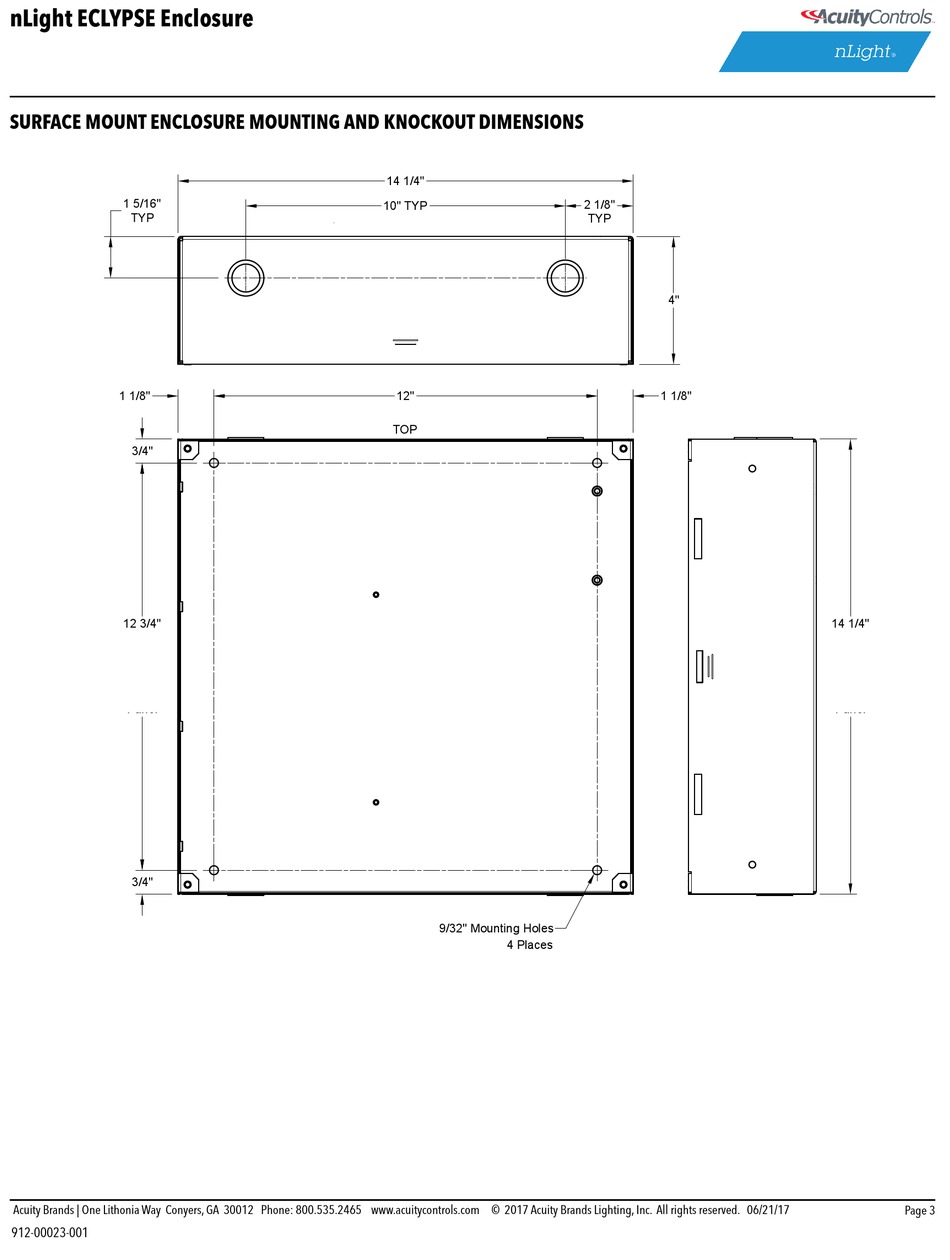

SURFACE MOUNT ENCLOSURE MOUNTING AND KNOCKOUT DIMENSIONS

8-RELAY SIZED PANEL SHOWN, BUT APPLIES TO 16-RELAY VERSION
Box Dimensions & Installation Application Notes
1 5/16"
TYP
1 1/8"
3/4"
12 3/4"
8-Relay
Panel
20 3/4"
16-Relay
Panel
3/4"
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2017 Acuity Brands Lighting, Inc. All rights reserved. 06/21/17
912-00023-001
14 1/4"
10" TYP
12"
TOP
n9/32" Mounting Holes
3/4" 5/8"
align marks with wall stud surface
All knockouts are dual
concentric style for 1/2"
& 3/4" trade size fittings
2 1/8"
TYP
4 Places
Flush
for flush mount installs
For Flush Mount Installations:
Alignment markings on all sides for 5/8" & 3/4" thick wallboards.
Align with stud surfaces for proper protrusion of box edge to be
flush finished wall surface. Verify with actual wall material
thicknesses to ensure a proper finished installation.
4"
1 1/8"
wall board
Flush Mount
Install example
wall
stud
14 1/4"
8-Relay
Panel
22 1/4"
16-Relay
Panel
