C-Dax Pasture Meter Assembly Instructions page 2

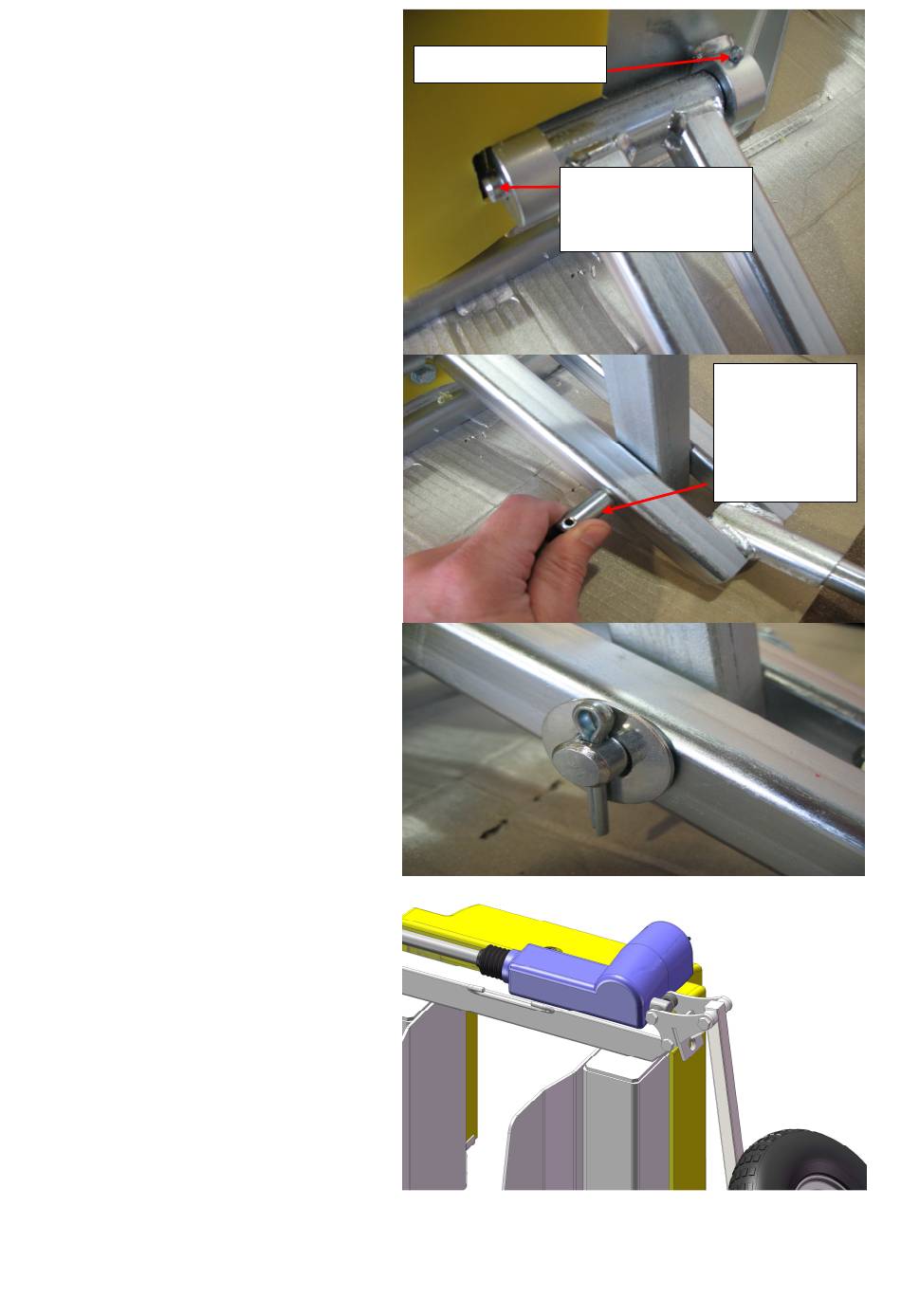

Attach the stub arm pivots to each side of
•
the frame. Mount these to the frame using
the 132mm Pin through the stub arm pivot
and insert the 5x50mm split pin through the
axle bush.
Insert the 95mm Pin through the stub axle
•
arm and the strut (ensure the pin goes
through the bottom most hole). Place a flat
M12 washer on each end of the pin and a
4x25mm Split Pin through the holes in
either end of the pin.
Note: Do not attach wheels at this stage
•
Assemble the top of the strut as shown in
•
the picture to the right (See last page for a
more detailed diagram).
Tighten all nuts
•
5 x 50mm Split Pin
Rotate the pin to
line up the split pin
holes
2
Attach strut to
stub axle
before
attaching to
top linkage
