5450 NW 33rd Ave, Suite 104
Fort Lauderdale, FL 33309
3211 Fruitland Ave
Los Angeles, CA 90058

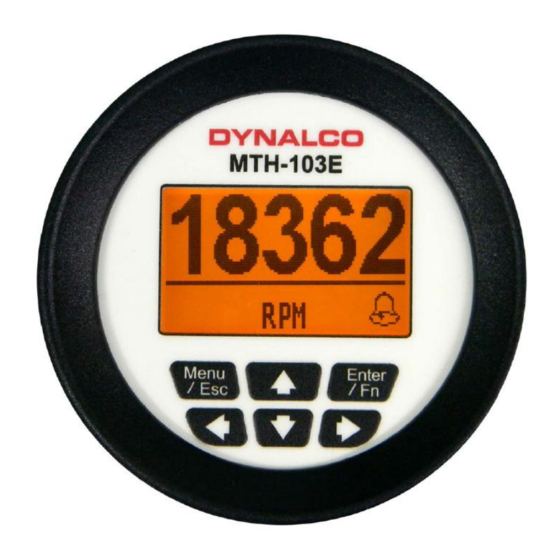

MTH-103E
Tachometer/Hourmeter/Trip
Installation and Operation Manual
Rev. E
P/N145F-13048
(c) Copyright 2014, Dynalco Controls
All Rights Reserved
Published: March 18, 2014
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynalco MTH-103E
Summary of Contents for Dynalco MTH-103E

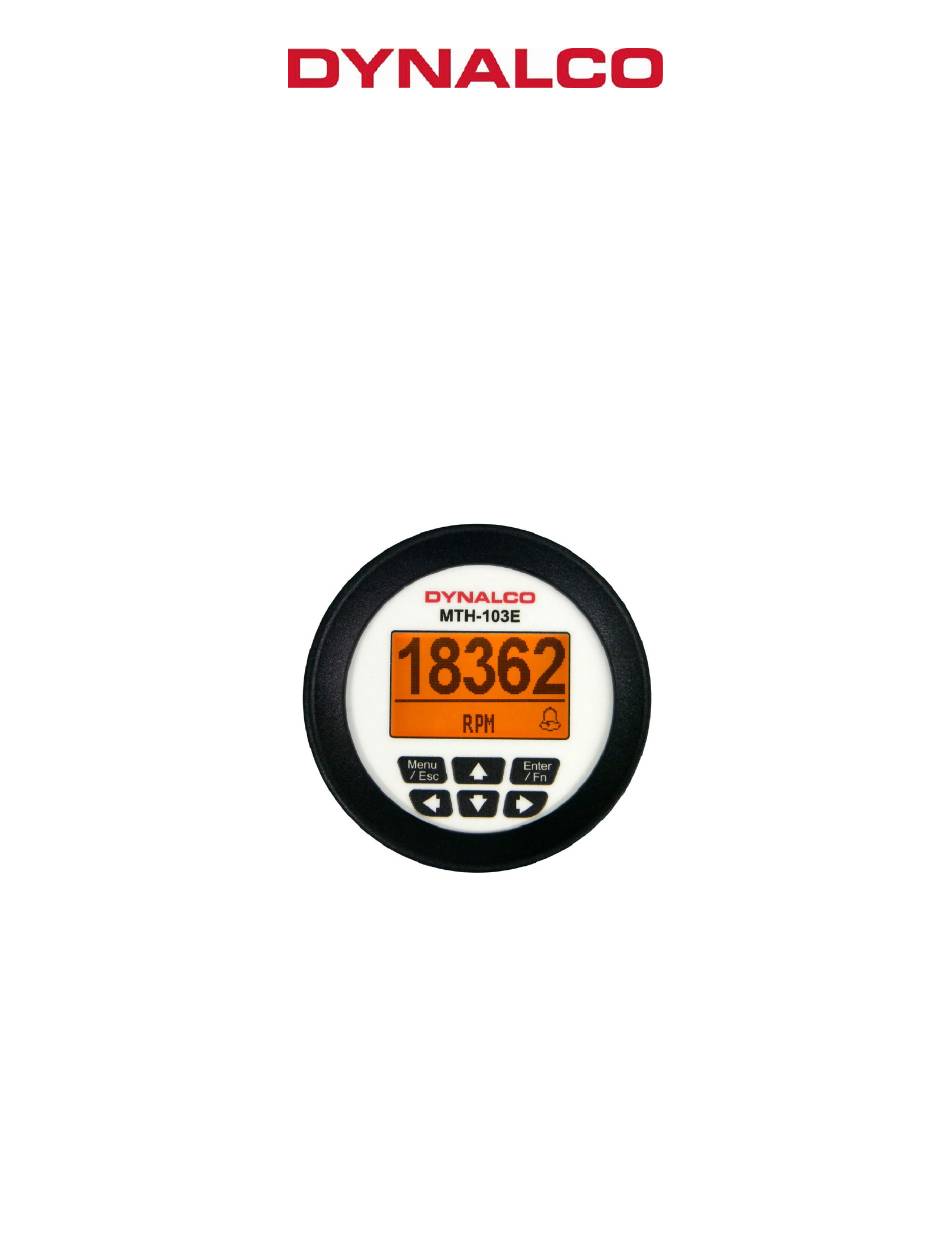

- Page 1 Fort Lauderdale, FL 33309 3211 Fruitland Ave Los Angeles, CA 90058 MTH-103E Tachometer/Hourmeter/Trip Installation and Operation Manual Rev. E P/N145F-13048 (c) Copyright 2014, Dynalco Controls All Rights Reserved Published: March 18, 2014 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 2 For clarification of instructions in this manual or assistance with your • application, contact Dynalco at (800) 368-6666 or (954) 739-4300 or send email to customerservice@dynalco.com Additional manuals and CSA certificates are available at www.dynalco.com •...
- Page 3 (Class C), or hours. The unit may be magnetic pickup or DC powered. The MTH-103E is CSA approved for Class I, Division 2, Groups A, B, C & D hazardous locations. When pickup powered the MTH103E is rated Class I, Division 1, Groups A, B, C &...
- Page 4 Installation: The MTH-103E is designed to be panel mounted. The dimensions are shown below. The MTH-103E includes a bracket for securing into the panel. To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 5 Terminal Connections All connections are made to terminals on the back of the unit. Terminal screws to be tightened to 8 inch-pounds torque. See pages 9 &10 for complete wiring information. Programming Overview To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 6 All programming is accomplished through the front keypad. Below is a brief description of each key. Press to enter or exit the configuration screens Press to enter or accept values Select up Select down Go back one screen Select and advance to next screen Initial configuration consists of the following steps: 1) Programming the # gear teeth 2) Selecting over / under speed setpoints (if required)
- Page 7 Using the arrows on the keypad, select the “Gear Teeth Settings” icon and press enter. Here, you will need to set the number of gear teeth for proper RPM display. The MTH-103E will allow any number from 1 to 360 teeth.
- Page 8 Pressing at any time during configuration will prompt you to save the changes. Select “Yes” to save any changes made. Selecting “No” will not save changes. Configuration of “Hourmeter Settings” Using the arrows on the keypad, select the “Hourmeter Settings” icon. The first screen will allow you to configure the hourmeter to either count up or count down by pressing the up / down arrows to select, then pressing the right arrow to navigate to the...
- Page 9 The software revision number will display for one second when power is initially applied. Alarm / Shutdown Output The MTH-103E will alarm or shutdown when the RPM is above or below limits as specified. If an alarm condition is met, an alarm indication on the display will blink and the digital output will trip.
- Page 10 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
- Page 11 To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com...
