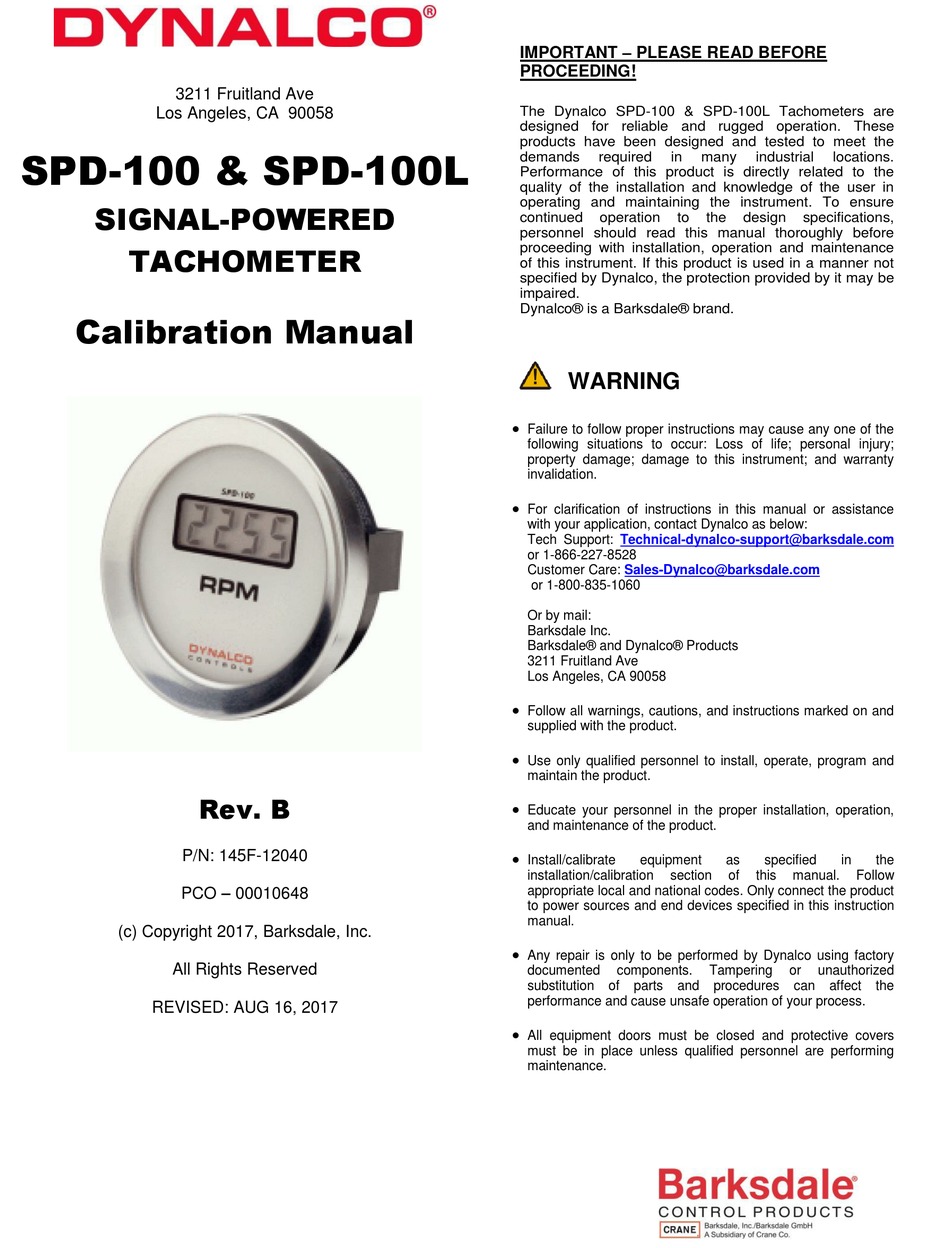

Dynalco SPD-100 Calibration Manual

3211 Fruitland Ave
Los Angeles, CA 90058

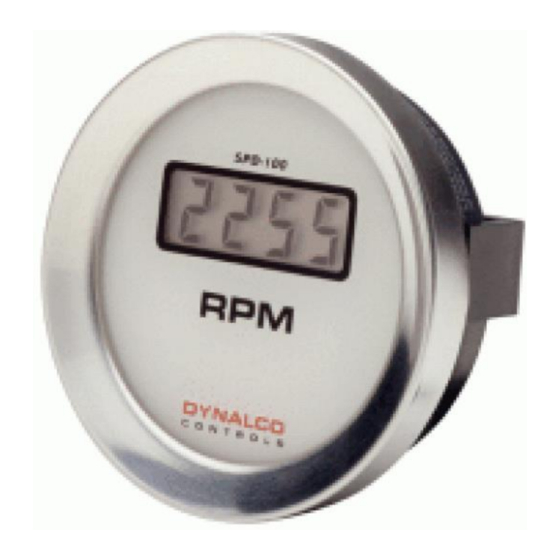

SPD-100 & SPD-100L
SIGNAL-POWERED
TACHOMETER
Calibration Manual
Rev. B
P/N: 145F-12040
PCO – 00010648
(c) Copyright 2017, Barksdale, Inc.
All Rights Reserved
REVISED: AUG 16, 2017
IMPORTANT – PLEASE READ BEFORE
PROCEEDING!
The Dynalco SPD-100 & SPD-100L Tachometers are
designed for reliable and rugged operation. These
products have been designed and tested to meet the
demands required in
Performance of this product is directly related to the
quality of the installation and knowledge of the user in
operating and maintaining the instrument. To ensure
continued operation to
personnel should read this manual thoroughly before
proceeding with installation, operation and maintenance
of this instrument. If this product is used in a manner not
specified by Dynalco, the protection provided by it may be
impaired.
Dynalco® is a Barksdale® brand.
WARNING

Failure to follow proper instructions may cause any one of the
following situations to occur: Loss of life; personal injury;
property damage; damage to this instrument; and warranty
invalidation.

For clarification of instructions in this manual or assistance
with your application, contact Dynalco as below:
Tech Support: Technical-dynalco-support@barksdale.com
or 1-866-227-8528
Customer Care: Sales-Dynalco@barksdale.com
or 1-800-835-1060
Or by mail:
Barksdale Inc.
Barksdale® and Dynalco® Products
3211 Fruitland Ave
Los Angeles, CA 90058

Follow all warnings, cautions, and instructions marked on and
supplied with the product.

Use only qualified personnel to install, operate, program and
maintain the product.

Educate your personnel in the proper installation, operation,
and maintenance of the product.

Install/calibrate equipment
installation/calibration section
appropriate local and national codes. Only connect the product
to power sources and end devices specified in this instruction
manual.

Any repair is only to be performed by Dynalco using factory
documented components.
substitution of parts and
performance and cause unsafe operation of your process.

All equipment doors must be closed and protective covers
must be in place unless qualified personnel are performing
maintenance.
many industrial locations.
the design specifications,
as specified in the
of this manual. Follow
Tampering or unauthorized
procedures can affect the
