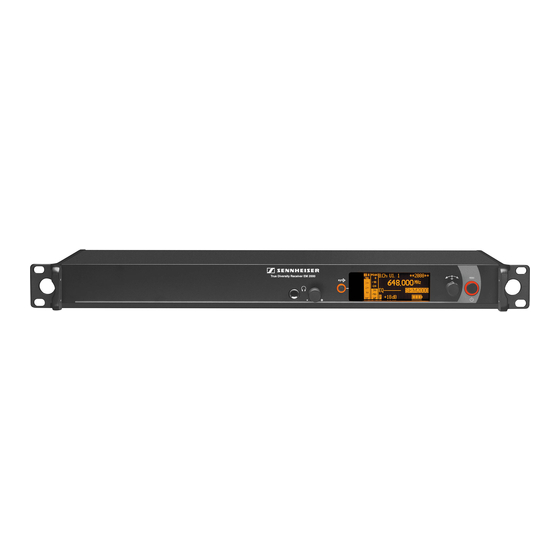

Summary of Contents for Sennheiser EM 2000

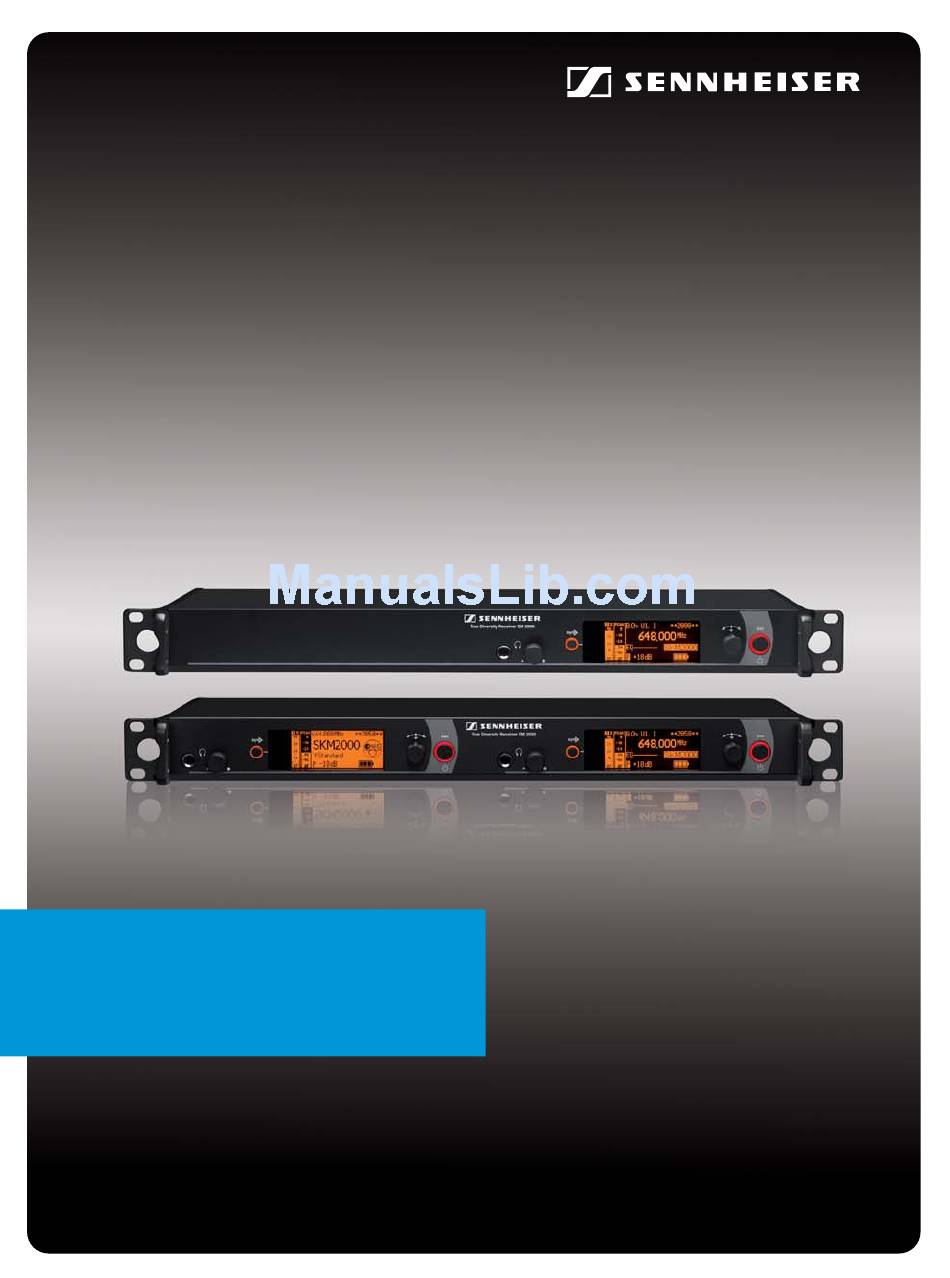

  • Page 1 EM 2000 EM 2050 Instruction manual...

  • Page 3: Table Of Contents

    Contents Important safety instructions ... 2 The EM 2000 and EM 2050 rack-mount receivers ... 4 Areas of application ... 4 The frequency bank system ... 4 Delivery includes ... 5 Product overview ... 6 Overview of the displays ... 7 Putting the receiver into operation ...

  • Page 4: Important Safety Instructions

    Important safety instructions Important safety instructions 1. Read these instructions. 2. Keep these instructions. Always include these instructions when passing the receiver on to third parties. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
  • Page 5 Replacement parts When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Safety check Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the device is in safe operating order.

  • Page 6: The Em 2000 And Em 2050 Rack-Mount Receivers

    The EM 2000 and EM 2050 rack-mount receivers The EM 2000 and EM 2050 rack-mount receivers This rack-mount receiver is part of the 2000 series. With this series, Sennheiser offers high- quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use.

  • Page 7: Delivery Includes

    For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the corresponding product page on our website at www.sennheiser.com. The frequency banks “U1” to “U6” allow you to freely select and store receiving frequencies.

  • Page 8: Product Overview

    Product overview Product overview Overview of the EM 2000/EM 2050 receiver The EM 2050 twin receiver has the same operating elements as the EM 2000 receiver. All information contained in this instruction manual refers to both receivers. EM 2050 100 - 240V 50/60Hz 0.25A...

  • Page 9: Overview Of The Displays

    Overview of the displays After switch-on, the receiver displays the standard display illustrations and examples of the different standard displays, please refer to page 15. This standard display displays the operating states of the receiver and provides the most important information on the received transmitter – provided the linked transmitter supports this function.
  • Page 10 Product overview Display Transmitter type Battery status Lock mode icon (see page 22) Device Meaning Transmitter Product name of the linked 2000 series transmitter The product name is displayed only if the linked transmitter supports this function. Transmitter Charge status: approx.

  • Page 11: Putting The Receiver Into Operation

    • You can use the optional AM 2 antenna front mount kit (see page 10). • For professional use, we recommend connecting remote antennas and, if necessary, using Sennheiser antenna accessories (see page 11). Putting the receiver into operation to the rack using four screws (not included in the...
  • Page 12 Putting the receiver into operation Connecting the rod antennas to the rear of the receiver Connect the rod antennas Align the antennas in a V-shape. Mounting the antennas to the front of the rack To mount the antenna connections to the front of the rack when rack mounting the receiver, you require the AM 2 antenna front mount kit (optional accessory).

  • Page 13: Daisy-Chaining Up To Ten Receivers

    Connect the rod antennas Align the antennas upwards in a V-shape. Connecting remote antennas (optional accessories) CAUTION! Danger of damage to the antennas To supply an active direction antenna (e.g. A 3700 for the UHF range) or an antenna booster (e.g.

  • Page 14: Connecting An Amplifier/Mixing Console

    Connecting receivers in a network You can connect several receivers in a network. The receivers are remote controlled via a PC True Diversity Receiver EM 2000 PEAK B.Ch: 20.64 **2000** PEAK B.Ch: 20.64...

  • Page 15: Using The Receiver

    Using the receiver To establish a transmission link, proceed as follows: 1. Switch the receiver on (see below). 2. Switch the transmitter on (see the instruction manual of the transmitter). The transmission link is established and the display backlighting of the receiver changes from red to orange.

  • Page 16: Synchronizing A Transmitter With The Receiver

    Set the headphone volume control B.Ch: PEAK True Diversity Receiver EM 2000 Connect headphones with a ¼” (6.3 mm) stereo jack plug to the headphone output Gradually increase the volume and monitor the audio signal with the lowest possible volume.

  • Page 17: Muting The Audio Signal

    The lock mode icon B.Ch: 20.64 **2000** PEAK 543.200 SKM2000 + 12dB MUTE Muting the audio signal mute the audio signal: unmute Selecting a standard display Contents of the display B.CH: 20.64 PEAK 543.200 + 12dB 543.200 MHz PEAK SKM2000 Standard –...

  • Page 18: Using The Operating Menu

    Using the operating menu Using the operating menu The buttons Button Press the STANDBY button Press the jog dial Turn the jog dial Overview of the operating menu Main menu “Menu” Squelch Easy Setup Frequency Preset Name AF Out Equalizer AutoLock Advanced Exit...
  • Page 19 Display Function of the menu item Main menu “Menu” Squelch Adjusts the squelch threshold Easy Setup Scans for unused frequency presets, releases and selects frequency presets Frequency Preset Changes the frequency bank and the channel Name Enters a freely selectable name AF Out Adjusts the audio output level Equalizer...

  • Page 20: Working With The Operating Menu

    Using the operating menu Display Function of the menu item Submenu “SK Settings” / “SKM Settings” / “SKP Settings” Sensitivity Adjusts the input sensitivity Low Cut Actives/deactivates the low cut filter (“SKM Settings” only) Auto Lock Activates/deactivates the automatic lock mode Mute Mode Sets the mode for the RF Power...
  • Page 21 Changing and storing settings Menu PEAK Easy Setup Frequency Preset Name B.Ch: 5.14 Call up “Frequency Preset” Press the jog dial to call up the menu item. Turn the jog dial to set the frequency bank. Press the jog dial to confirm your selection. Turn the jog dial to set the channel.

  • Page 22: Adjusting Settings Via The Operating Menu

    Adjusting settings via the operating menu Adjusting settings via the operating menu The main menu “Menu” Adjusting the squelch threshold Menu Squelch Menu PEAK Easy Setup Exit Squelch Frequency Preset Frequency Preset Name AF Out Call up „Squelch” Equalizer Auto Lock Advanced Exit The squelch eliminates annoying noise when the transmitter is switched off or when there is...
  • Page 23 Scanning for, releasing and selecting frequency presets Menu Squelch Menu item Function of the menu item Easy Setup Reset List Releases all locked frequency presets and selects an unused frequency Frequency Preset Name preset AF Out Current List Selects an unused frequency preset Equalizer Auto Lock Scan New List Automatically scans for unused receiving frequencies (frequency preset scan)
  • Page 24 Adjusting settings via the operating menu To enter a name, proceed as follows: Adjusting the audio output level Menu Adjustment range: –24 dB to +24 dB, adjustable in 1-dB steps. Squelch Easy Setup Setup Via the “AF Frequency Preset receiver to the input of the connected device. The following figures are a guide to the best Name settings: AF Out...

  • Page 25: The Extended Menu "Advanced Menu

    Getting into the extended menu “Advanced Menu“ Menu Squelch To get into the extended menu Easy Setup Setup From the main menu, select “Advanced”. Frequency Preset Name AF Out Equalizer Auto Lock Advanced Exit The extended menu Setting the receiving frequencies and the frequency banks “U1” to “U6 Advanced Menu Tune When you have selected one of the system banks and then select the “Tune”...
  • Page 26 Adjusting settings via the operating menu Advanced Menu PEAK Exit Tune Sync Settings Select “Tune” (special function) Set the desired frequency bank. Set the desired channel. Set the desired frequency. Changing the settings of the guitar tuner Advanced Menu Tune The following settings are available: Guitar Tuner Setting...
  • Page 27 Getting into the “Warnings” submenu Advanced Menu Tune To get into the “Warnings” submenu (see page 27): Guitar Tuner From the extended menu Sync Settings Pilot Tone Warnings LCD Contrast Reset IP-Address Software Revision Exit Adjusting the contrast of the display panel Advanced Menu Tune Advanced Menu...

  • Page 28: The "Sync-Settings" Submenu

    Advanced Menu Tune You can display the current software revision of the receiver. Guitar Tuner For information on software updates, visit the corresponding product page on our website Sync Settings at www.sennheiser.com. Pilot Tone Warnings LCD Contrast Reset IP-Address Software Revision Exit The “Sync-Settings”...

  • Page 29: The "Warnings" Submenu

    Display PhantomPower48V (SKP only) Cable Emulation The “Warnings” submenu Activating/deactivating warning messages Warnings AF Peak Warning message with Low RF Signal color change on the RF Mute Setting standard display TX Mute RX Mute AF-PEAK “AF-PEAK” Low Battery Low RF-Signal “Low Exit RF-Mute...
  • Page 30 Adjusting settings via the operating menu Doing a soundcheck By doing a soundcheck, you can check the reception area for field strength gaps (“dropouts”) which cannot be compensated for by the receiver’s diversity circuitry. You can do the sound- check without the help of another person. Switch the transmitter on.

  • Page 31: Synchronizing A Transmitter With The Receiver

    Synchronizing transmitters with receivers – multi-channel operation Network operation In multi-channel operation, the receivers are remote controlled via a PC running the Systems Manager” (WSM) software. Advantages of controlling the receivers via the True Diversity Receiver EM 2000 PEAK B.Ch: 20.64 **2000** PEAK B.Ch: 20.64...
  • Page 32 Synchronizing a transmitter with the receiver Operation without Switch off all transmitters of your system that are to be automatically configured. network Channels used by switched-on transmitters are displayed as “used”. With one of the receivers, perform a frequency preset scan to scan the frequency banks for unused channels Select a channel on this receiver The receiving frequency of the channel must be approved and legal in your country...

  • Page 33: Cleaning The Receiver

    Cleaning the receiver CAUTION! Liquids can damage the electronics of the receiver! Liquids entering the housing of the device can cause a short-circuit and damage the electronics. Keep all liquids away from the receiver. Before cleaning, disconnect the device from the mains. Use a slightly damp cloth to clean the receiver from time to time.

  • Page 34: Accessories

    If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance. To find a Sennheiser partner in your country, search at www.sennheiser.com under “Service & Support”. Accessories Cat.

  • Page 35: Specifications

    49 dB (in steps of 1 dB), +6 dB gain reserve –10°C to +55°C 100–240 V~ EM 2000: 0.2 A EM 2050: 0.25 A approx. 217 x 483 x 43 mm EM 2000: approx. 2600 g EM 2050: approx. 2900 g Accessories +18 dBu...

  • Page 36: Manufacturer Declarations

    Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •...
  • Page 37 • Consult the dealer or an experienced radio/TV technician for help. This class B digital device complies with the Canadian ICES-003. Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.
  • Page 38 Sennheiser electronic GmbH & Co. KG Printed in Germany Am Labor 1, 30900 Wedemark, Germany Publ. 01/09 www.sennheiser.com 529666/A01...
