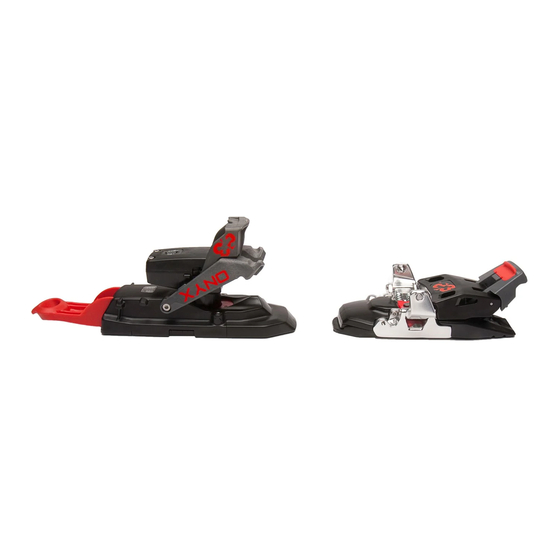

G3 Onyx Installation And User Instructions

Warning: When using the Onyx Crampon with the Bellowed-boot Shim the low climbing
height should always be used
3. Maintenance and Storage
•
After every use the binding and shim should be cleaned with a damp rag to remove any dirt or dust.
Do not use any other kind of lubricants, grease, solvents, cleaning products or pressurized devices.
4. Warranty
•
Please visit www.genuineguidegear.com/service/g3-product-warranty
information.
5. Further Information
•
The G3 website www.genuineguidegear.com
products. Please go to the website to find any recent updates and additional information on how to
use the product.
©2010 G3 Genuine Guide Gear Inc.
for complete warranty
has the most current information regarding all G3
G3-ATB-E004 Rev -
Bellowed‐Boot Shim Installation and User Instructions
•
This product is intended for use only with the following ski boots with flexible bellows: Scarpa® F1, F1
Race, F1 Carbon, Scarpa® F3, Scarpa® Terminator X and Terminator X Pro.
•
Use of a bellowed boot with the G3 Onyx binding without the Bellowed-Boot Shim will affect the
safety release and is not recommended
•
Refer to the ONYX User Operating Instructions for important warnings and instructions regarding the
use of Onyx bindings. Visit
•
Refer to the Onyx Mounting and Installation Instructions for binding mounting and assembly
instructions. Visit www.genuineguidegear.com
•
The use of any accessory, such as the bellowed-boot shim, with the Onyx binding will affect the
binding release values.
•
Winter Backcountry travel is inherently dangerous. There is always the risk of serious injury or death.
You are solely responsible for your actions and decisions. Familiarize yourself with the use of this
product, its limitations and capabilities. Learn proper skiing techniques, avalanche awareness and
exercise good judgment in conjunction with using this product properly. Use this equipment and ski at
your own risk
1. ONXY Bellowed-boot Shim Overview
1.1. Key Components
1. Bellowed-Boot Shim
2. T-stud
3. Screw
4. T10 Torx key
5. Drilling template
©2010 G3 Genuine Guide Gear Inc.
Important warnings and instructions
www.genuineguidegear.com for the latest information
for the latest information.
G3-ATB-E004 Rev -
