- Page 1 BVRD Network Installation Instructions Manual name: BVRDNET Issue: 3 ECR: 3326 Date of issue: Oct 2017...
- Page 2 BVRD Network Installation Instructions © Oct 2017 Baldwin Boxall Communications Limited Wealden Industrial Estate Farningham Road, Jarvis Brook Crowborough East Sussex TN6 2JR Telephone: +44 (0)1892 664422 Facsimile: +44 (0)1892 663146 Email: mail@baldwinboxall.co.uk Website: http://www.baldwinboxall.co.uk This equipment has been designed and manufactured to conform to the following...
-
Page 3: Table Of Contents
Copper Network (BVRDCIF) Specific - - - - - - - - - - - - - - - - - 10 Fibre Network (BVRDFIF/S) Specific - - - - - - - - - - - - - - - - - - 11... - Page 4 BVRD Network Installation Instructions BVRDNET issue 3...
-
Page 5: Amendment Record
Baldwin Boxall Communications Limited. The possession of this manual and the use of the information is, therefore, restricted only to those persons duly authorised by Baldwin Boxall Communications Limited. Do not reproduce, transcribe, store in a retrieval system or translate into any language, any part of this manual without the prior permission of Baldwin Boxall Communications Limited. -
Page 6: Safety Information
BVRD Network Installation Instructions AFETY NFORMATION Personnel who install, maintain or repair this equipment must read the safety information below before starting work. Voltages in excess of 30 Volts RMS or 50 Volts DC are considered Hazardous and in certain circumstances can be lethal. If Functional Testing, Maintenance, or Repair is to be completed with the Mains Power (and/or battery backup) connected then this should only be undertaken by personnel who are fully aware... -
Page 7: Bvrdnet Network Overview
The network can be either Copper, Multi Mode Fibre, Single Mode Fibre or a combination of both using the BVRDCIF, BVRDFIF and BVRDFIFS interface modules. Two RS485 communication ports and upto 14 concurrent audio channels can be distributed around the network. -
Page 8: Bvrdnet Components

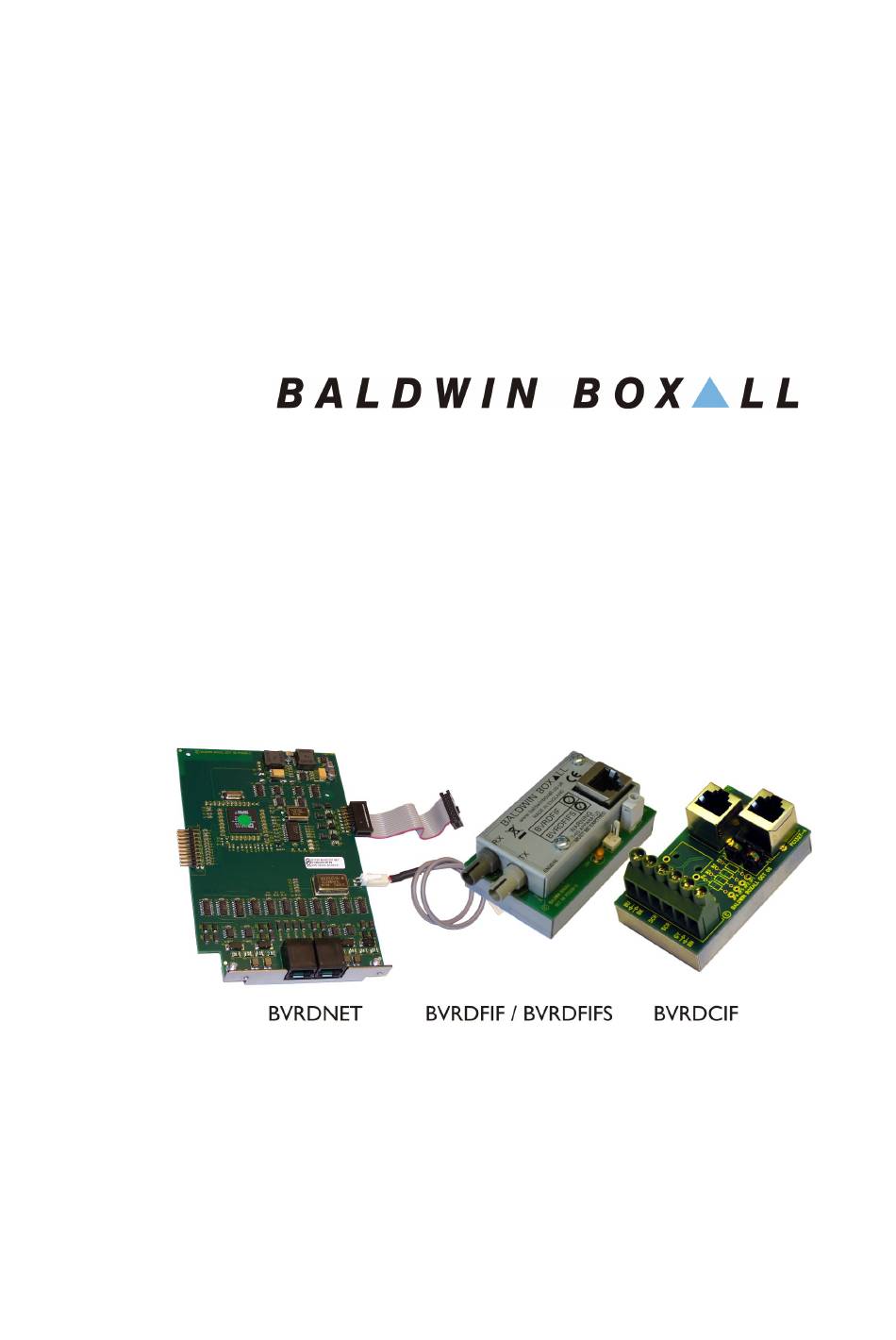

The BVRDNET is fitted inside the BVRD2M/4 and is a factory fit option only. BVRDFIF/S (Fibre) & BVRDCIF (Copper) Interface The BVRDCIF and BVRDFIF/S interface modules are DIN rail mounted and use standard RJ45 patch leads to connect to the BVRDNET module. 1.3 S... -
Page 9: Bvrd Network Installation
Installation 2.1 BVRDCIF & BVRDFIF/S M ODULES The BVRDCIF and BVRDFIF/S Interface modules are both DIN Rail mounted and connect to the BVRD2M/4 using standard RJ45 patch leads. BVRDFIF/S modules require a Wurth 742- 71221 cable ferrite installing so that the cable passes through the ferrite 2 times. -
Page 10: Bvrdcif (Copper) Network
Enhanced Fire Rated Four Core Cable should be used, with a cross sectional area of either >1mm (untwisted) or 0.5mm (twisted). Baldwin Boxall recommend using 1.5mm cable. The typical maximum length of cable between units is as follows: “Slow” speed (six concurrent audio channels) - 300 metres... - Page 11 BVRD Network Installation Instructions Figure 2.3 — Typical Connection Details for BVRDCIF Copper Network For each BVRD2M/4 there are two BVRDCIF modules. The RJ45 connections should be connected as shown in Figure 2.3, with one RJ45 in the “Lower” (P3) socket and the other RJ45 in the “Upper”...
-
Page 12: Bvrdfif (Fibre) Network
Two cables (Tx and Rx) connect between each BVRDFIF. The typical maximum distance between units for a fibre network is 3km at slow or fast speed (multi mode) and 4km (single mode). 2.3.2 Connection Details Figure 2.4 — Typical Connection Details for BVRDFIF Fibre Network BVRDNET issue 3... -
Page 13: Commissioning
BVRD Network Installation Instructions 3 Commissioning The BVRDNET network has been designed to enable simple commissioning. The network can be connected one “span” at a time to minimise fault finding. There is no power distributed around the network and fault finding can be performed with units switched on. -
Page 14: Remote" Network Connection
BVRD Network Installation Instructions Connect the “Local” BVRD2M/4 to the BVRDCIF, using either the P2 or P3 RJ45 connection, and note which is being used. : The LED on the BVRDCIF will not flash until the network is connected and receiving data. 3.1.2 “Remote”... -
Page 15: Fibre Network (Using Bvrdfif/S Modules)
Ensure the “Local” BVRD2M/4 is switched on and the network is enabled in configuration. Connect the RJ45 patch lead to the BVRDFIF/S module. : The LED on the BVRDFIF/S will not flash until the network is connected and receiving data. 3.2.2 “Remote” Network connection Go to the “Remote”... -
Page 16: Fault Finding
AULT INDING 3.3.1 BVRDCIF & BVRDFIF/S LED Indicators The flashing LEDs on the BVRDCIF and BVRDFIF/S modules indicate valid reception of data and when the network is connected correctly will flash regularly at approximately 1Hz. The LEDs do not indicate the quality of transmission. -
Page 17: Fibre Network (Bvrdfif/S) Specific
• Ensure that on each span both RJ45 connectors are used - P2 on one end and P3 on the other end. Figure 3.1 — BVRDCIF Copper Conductors 3.3.4 Fibre Network (BVRDFIF/S) Specific Ensure the correct fibres are in use (using visible Light Source if required). -
Page 18: System Wide Reset Control
BVRD Network Installation Instructions 3.4 S YSTEM ESET ONTROL The BVRD Network Card includes a facility to remotely reset the local router. During Commissioning it is occasionally necessary to reset routers to clear stored routes, and this can be difficult when physical access to the equipment racks is limited.
