CATSKILL 7237 Assembly Instructions Manual

36 bottle wine rack
Hide thumbs Also See for 7237:

Advertisement

Quick Links

Download this manual

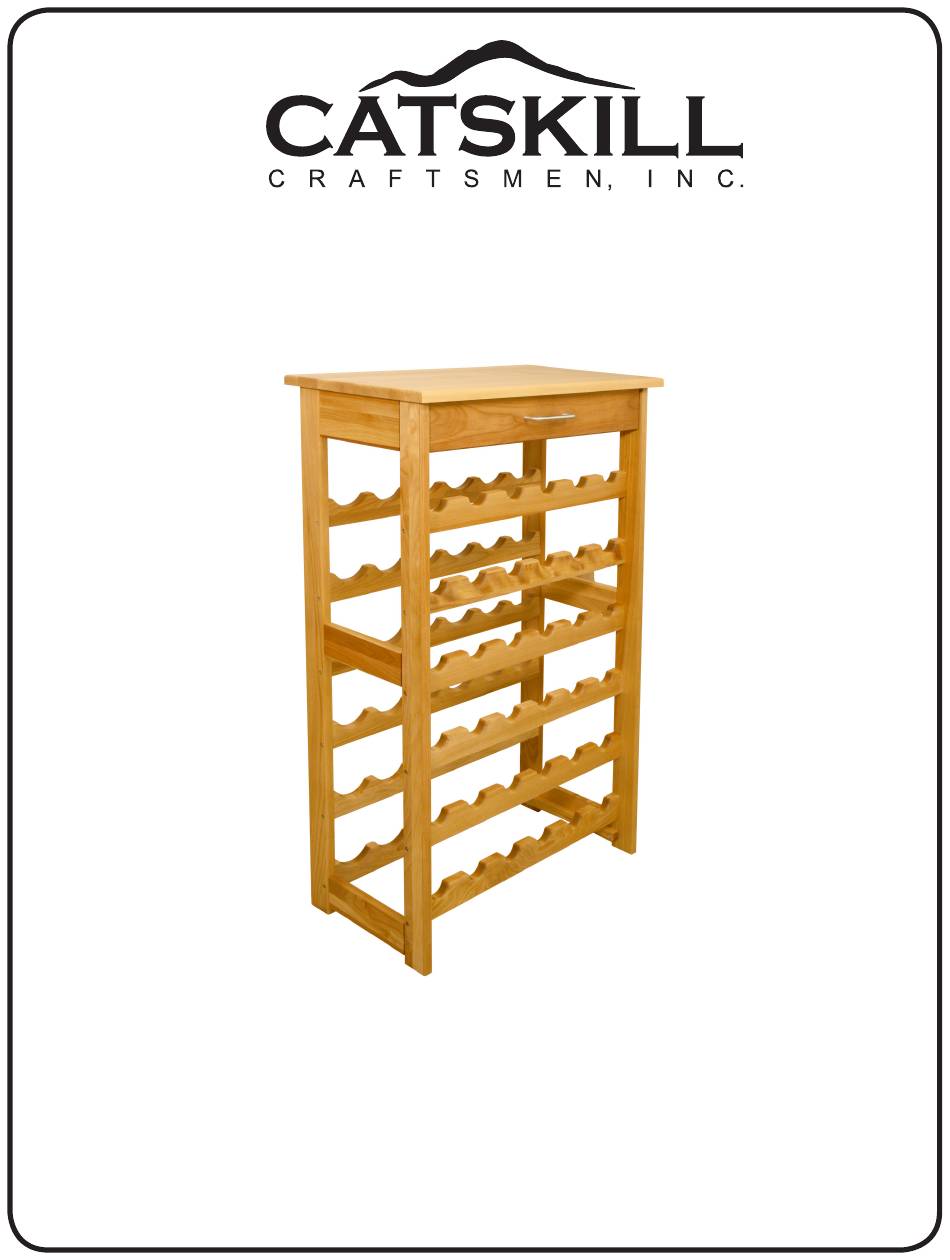

Assembly Instructions
Model 7237
36 Bottle Wine Rack
GENERAL:
1. You have purchased model 7237.
2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at
607-652-7321 from 7:30 am - 4:30 pm EST and we'll send you the prepaid part via UPS usually that same day!
You may also email us info@catskillcraftsmen.com.
3. Read the assembly instructions and the enclosed brochure before beginning assembly. Assembly is easy
if you read and follow the instructions step by step. See our website for assembly tips and videos:
www.catskillcraftsmen.com
4. The only tools needed are a Phillips screwdrivers, medium and small; medium flat blade screwdriver, pliers
and a hammer. A power screwdriver will speed assembly, but is not required.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7237 and is the answer not in the manual?

Questions and answers

Related Manuals for CATSKILL 7237

Summary of Contents for CATSKILL 7237

  • Page 1 36 Bottle Wine Rack GENERAL: 1. You have purchased model 7237. 2. Should you need assistance or need to replace a damaged or missing part simply give us a call M-F at 607-652-7321 from 7:30 am - 4:30 pm EST and we’ll send you the prepaid part via UPS usually that same day! You may also email us info@catskillcraftsmen.com.

  • Page 2: Parts List

    DF-7200 Rack Top 24” x 13” Drawer Back (1) TT-7200 BBK-7200 Bottom Side Cleat 9” x 3/4” x 3/4” (2) BSC-7237 Drawer Side Right (1) DS/R-7200 Top Side Brace 7 1/2” x 3 1/2” (2) Drawer Side Left (1) B-TS-7237 DS/L-7200 Middle/Bottom Side Brace 7 1/2”...

  • Page 3: Hardware List

    HARDWARE LIST Small 7/16” Wood Screw (4) Bastion Post (2) SKRU 5/8” #6F B-POST 1” Steel Pin (24) PIN 1” 3/4” Steel Pins (28) PIN 3/4” Small 3/8” Machine Screws (2) SKRU-M4-10 Bastion Barrel Nut (2) B-NUT Pan Head Machine Screws (2) SKRU 1”...
  • Page 4 TIPS ON HOW THE BASTION FASTENING SYSTEM WORKS 1. The Bastion fastening system consists of a steel post (threaded on one end with a hole through the shaft on the other end); a Barrel Nut (cylindrical barrel-shaped with threaded Illustration Bas. 1 open end &...
  • Page 5 STEP 1 Prep Bottle Bottom Braces Take all 6 braces and tap one 3/4” pin into the ends of each. OK if pin is loose! STEP 2 Attach Bottle Bottom Brace to Back Legs Attach Bottle Bottom Braces (6) to the Left Back Leg by aligning pins in brace ends with holes in leg. Secure braces with 1 1/4”...
  • Page 6 STEP 3 Attach Top Back Brace Tap two 3/4” pins into each end of the Top Back Brace. Insert pins into both Back Legs. You may need to slightly separate the legs at the top to allow room to seat the pins. When in place, tighten 1 1/4” #8 screws from Step 2.
  • Page 7 STEP 5 Attach Bottle Neck Braces to Front Legs Attach braces to the Left Front Leg by aligning brace pins with holes in the leg. Secure with 1 1/4” #8 screws. Attach the other end of the braces to the Right Front Leg with 1 3/4”...
  • Page 8 STEP 7 Attach Front Assembly to Back Assembly Turn the Back Assembly from Step 6 on it’s side, place the Front Assembly on it’s side facing the Back Assembly. Align the pin holes in the side braces with the corresponding holes in the Front Assembly.
  • Page 9 STEP 9 Attach Drawer Glides Attach Drawer Glides to the Table Top Sticks using 7/16 wood screws. Use the 1st hole in the first set of 3 holes (from back) and the 3rd hole Back Front in the last set of 3 holes. You will have to slide the longer part of the glide to gain access to the front pilot hole.

  • Page 10: Drawer Assembly

    STEP 11 Drawer Assembly Attach drawer back to the drawer sides with four 1 1/4” #8 screws. There are left and right sides. Make sure the slots that run the length of the sides are aligned with the slot in the drawer back to accept the drawer bottom.
  • Page 11 STEP 12 Attach Drawer With the unit upright, align the slots on the outside of the Drawer Sides with Drawer Glides attached to the Table Top Sticks. When both sides are aligned, push the drawer all the way in until it hits the Top Back Brace.
  • Page 12 Visa and Address _____________________________ Mastercard are accepted online. City ________________________________ State ________________ Zip ___________ Catskill Craftsmen, Inc. Please make checks payable to Catskill Craftsmen Inc. 15 West End Ave. 15 West End Ave., Stamford, NY 12167-1296 Stamford, NY 12167-1296...
