- Page 1 SUMMIT PUMP MODEL SPL PROGRESSIVE CAVITY...

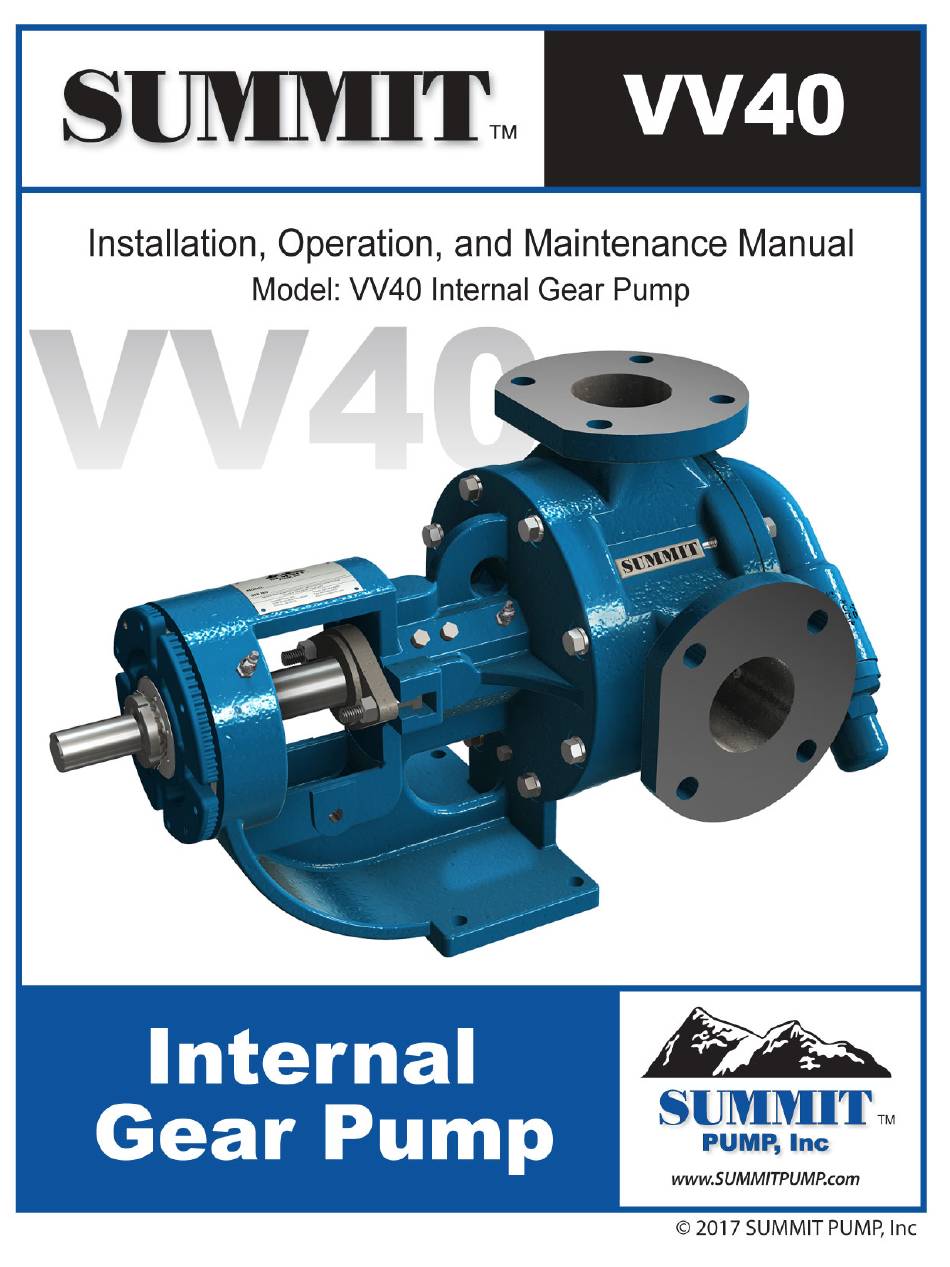

- Page 2 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 3: Warranty
INSTALLATION, OPERATION AND MAINTENANCE MANUAL i. WARRANTY Pumping units assembled by Summit Pump, Inc., Green Bay, WI are guaranteed to be free from defects in material and workmanship for one year from date of shipment from factory in Green Bay, WI. The... - Page 4 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 5: Table Of Contents
12.5 HEAD AND CASING ........ 34 7.2 LUBRICATION ......... 14 12.6 ADJUSTING END CLEARANCE ....35 7.2.1 Packing ........... 14 12.6.1 Measured Rotation Method ..35 7.2.2 Bearings .......... 15 12.6.2 Dial Indicator Method ....36 SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... - Page 6 12.7.1 Mounting valve on head ....38 13.1.2 Locknut Torques ......40 12.7.2 Setting pressure ......38 14 PUMP INFORMATION ..41 13 APPENDIX E – REFERENCE TABLES ........ 40 13.1 TORQUE GUIDELINES ......40 SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 7: Introduction
This installation, operation, and maintenance manual is designed to help you achieve the best performance and longest life from your Summit Pump. This pump is a positive displacement internal gear type. The pump’s drive shaft turns a ring gear (rotor), with internal teeth, which rotates the external gear (idler). -
Page 8: Safety
Negligent acts may result in serious injury or death. CAUTION Feeding very hot or very cold fluid into the pump at room temperature may result in fracture of pump wet end. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... - Page 9 NOTICE Check all end clearances, drive to shaft alignments, fastener torques, equipment lubrication, gaskets and seals for leaks and all equipment is fastened into place before operation. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 10: Nomenclature
As where “sections” are stated in section 4, NOMENCLATURE, refer to Page 6 for clarification. Summit internal gear pumps are essentially identified by Model Size (sections 1 & 2, i.e. VV40LL). The remaining format consists of the Seal Type & Material (section 3, i.e. “PK”), Materials of Construction (sections 4 &... -
Page 11: Additional Items
(“X”, Section 9) Section 9 may or may not be present. Usually, there will be no “X” following the pump identification. If there is an “X”, you will need to contact your nearest Summit Pump, Inc. Distributor to determine exactly what makes this pump special. - Page 12 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL Figure 4-1: Materials of Construction; Reference Summit Pump VV40 nomenclature SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 13: Receipt And Storage
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL 5 RECEIPT AND STORAGE RECEIVING THE PUMP Immediately upon arrival, carefully inspect the pump for evidence of damage during transit. Immediately report any damage to your local Summit Pump, Inc. Distributor. STORING THE PUMP 5.2.1 Temporary Temporary storage: less than six months. -
Page 14: Installation
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL 6 INSTALLATION GENERAL Summit Pumps are fully assembled at the factory. The pumps are ready to be installed and put into service. Follow all instruction tags on the pump. LOCATION If the pump is going to have a water flush, it should be located as close as possible to the supply of water. -
Page 15: Base Plate Grouting
4. Carefully lower baseplate with pump and motor onto sub base over anchor bolts. 5. Level baseplate to 0.125” over length and 0.088” in over width. 6. When leveling is complete, uniformly hand tighten the anchor bolts. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... - Page 16 8. Use a high quality non-shrinking epoxy grout, following manufacturer’s mixing and installation instructions. 9. When grout has cured, per grout manufacturer’s recommended cure time, tighten anchor bolts till secure. 10. When grouting is complete, check coupling alignment and re-align as necessary. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 17: Orientation And Rotation
The internal relief valve must be positioned correctly or the valve will not work correctly, potentially damaging equipment, severely injuring or causing death to personnel. DANGER Install pressure relief valve correctly to avoid equipment failure, severe injury or death. Figure 6-4: Wet end configurations SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 18: Casing Orientation
In these circumstances, the use of a threaded or flanged reducer/expansion fitting is needed. It is recommended to install an isolation discharge valve to isolate the pump from the system when down for maintenance. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 19: Alignment
3. After piping is connected, check alignments to ensure possible pipe strains have not changed alignment. 4. Hot alignment, after the pump has reached operating temperature, if the pump is used in high temperature service. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 20: Operation
In general, re- grease the packing every 500 hours or every six months using the stuffing box grease zerk shown in Figure 7-1. See Section 7.3.2 for more details. Figure 7-1: Lubrication locations SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 21: Bearings
7.2.2 Bearings The bearing(s) on Summit’s VV40 pumps are grease lubricated at the factory. Depending on pump application, speed and size of bearing(s), the amount the bearing(s) is lubricated changes. In general, re- grease the bearing(s) every 500 hours or every six months using the bearing grease zerk shown in Figure 7-1. -
Page 22: Packing Adjustment
In either case, this discharge of the flush water should be approximately 10-15 psi higher than the pressure in the casing. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 23: Mechanical Seals
(item 30 in Figure 10-1 on page 24) and fill with pumping liquid or water. (Only use water if it will not contaminate the pumping liquid.) 2. Ensure the motor rotation coincides with desired pump rotation. Refer to Section 6.6 on page 11 and 11 for specific shaft rotation direction. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 24: Shut Down
1. If possible, flush the pump with clean water. (Only use water if it will not contaminate the pumping liquid.) 2. Shut down the pump. 3. If water flushed or water lubricated packing, turn off water to the stuffing box. 4. Close both the discharge and suction valves. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 25: Maintenance Timetable
1. All of the above and the following: 2. Depending on the fluid pumped and pump operating hours, check pump performance with published performance curve. These inspections can range from once a year, to once every three to five years. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 26: Troubleshooting
Packing gland too tight or skewed. Improper seal installed. Inadequate lubrication. Relief valve improper pressure setting. Relief valve reversed. Material compatibility. Bad bearing (thrust). Drive misalignment Base plate loose Drive not sized for horsepower required. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 27: Exploded Views
Use below figures and tables with respect to Section 11 DISASSEMBLY MODEL VV40 and Section 12 ASSEMBLY MODEL VV40 10.1 VV40H & VV40HL Cast Iron Figure 10-1: VV40H & VV40HL Exploded View – Cast Iron Table 10-1: Itemized Parts MODEL VV40H & HL INTERNAL GEAR PUMP... -
Page 28: Vv40H & Vv40Hl Stainless Steel
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL 10.2 VV40H & VV40HL Stainless Steel Figure 10-2: VV40H & VV40HL Exploded View - Stainless Steel Table 10-2: Itemized Parts MODEL VV40H VV40HL INTERNAL GEAR PUMP LOCK NUT PACKING GLAND CAP SCREW ROTOR AND SHAFT... -
Page 29: Vv40H & Vv40Hl Cast Iron & Stainless Steel - Behind Rotor Mechanical Seal
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL 10.3 VV40H & VV40HL Cast Iron & Stainless Steel – Behind Rotor Mechanical Seal Figure 10-3: VV40H & VV40HL Behind Rotor Seal Table 10-3: Itemized Parts BEHIND ROTOR SEAL : VV40H & VV40HL INTERNAL GEAR PUMP... -
Page 30: Vv40L, Ll, Lq & Ls Cast Iron & Stainless Steel
HEAD GASKET BEARING HOUSING SET SCREW THROUGH * NOT SHOWN INSERTS ** NOT SHOWN; LS, Q AND QS SIZES ONLY END CAP SET SCREW Note: Item 21 is not present with Stainless Steel externals SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 31: Disassembly Model Vv40
Properly vent any pressure in pump, fittings and connecting lines. WARNING Understand material being pumped. Obtain MSDS information for product. Take all necessary precautions. WARNING Wear eye protection and proper personal protective equipment. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 32: Head And Casing
4. Remove set screws (End Cap Set Screws) and white inserts (Inserts) in the bearing housing (07) flange. This will allow the end cap (03) to be removed. Rotate the end cap (03) counter-clockwise to remove from the bearing housing (07). SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 33: Removing Seals
Slide the mechanical seal collar (21) off the rotor and shaft (36). 6. Inspect bracket (27), rotor and shaft (36) and mechanical seal (19) for damage or wear. If needed replace parts. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 34: Bracket And Casing
Mark valve orientation. Improper installment may result in equipment loss, serious injury or death. 2. Remove cap screws (46) and pull off internal relief valve (47). Be careful as not to damage relief valve gaskets (45). SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 35: Assembly Model Vv40
The following steps are written in terms of the bracket bushing (25) and bracket (27). When installing the idler bushing (38) with the idler (37), replace the verbiage: “bracket bushing (25)” with “idler bushing (38)” and “bracket (27)” with “idler (38)”. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 36: Normal Installation
4. Check for cracks in the bracket bushing (25). Any cracks will reduce bushing life and increase shaft ware. It is recommended to remove and replace bushing if any cracks are detected. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 37: Bushing Temperature Limits
There are three primary ways to seal the VV40 pumps; packing (standard), component mechanical seal or cartridge mechanical seal. For third party mechanical seal assembly and disassembly, refer to seal manufacturer’s installation and operation manual. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 38: Packing
2. Remove pipe plugs (30) from the bracket (27) located on the stuffing box. These are the access ports to lock down the mechanical seal collar (21) to the shaft (36). SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 39: Bearing Housing
15. Position the bearing (06) over the shaft and push or press into the bearing housing (07). Q and QS have two bearings and they are tapered roller bearings (06), orientation does matter for SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 40: Head And Casing
5. Once head (40) is in the correct orientation, mate head (40) with the casing (31) lining up the cap screw (43) holes. Hold head (40) in place and hand tighten cap screws (43). Torque the cap screws (43) in proper sequence to torque values shown in Table 13-1 on page 40. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 41: Adjusting End Clearance
5. After setting end clearance, replace bearing housing set screws to lock bearing housing (07) in place during operation. 6. It may be necessary to add extra end clearance for higher viscosity fluids. Contact your local Summit Pump, Inc. Distributor for specifications. -
Page 42: Dial Indicator Method
8. After setting the end clearance, replace bearing housing set screws to lock bearing housing (07) in place during operation. 9. It may be necessary to add extra end clearance for higher viscosity fluids. Contact your local Summit Pump, Inc. Distributor for specifications. - Page 43 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL Figure 12-3: Dial Indicator Position NOTICE End clearance must be set for proper performance. Incorrect settings could damage pump internals. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 44: Internal Relief Valve
The internal pressure relief valve (47) pressure setting is set at the factory to a standard 100 psi when the valve is fully open. Relief valve pressures are only set differently if stated on customer’s purchase order. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... - Page 45 (i.e. closing the discharge valve). Note: Figure 12-4 shows a general relationship and not actual tested data. Figure 12-4: Internal relief valve (47) effects on system flow when differential pressure approaches internal relief valve (47) set pressure. SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
-
Page 46: Bolt Torques
Model Torque Locknut Washer and Size (ft-lbs) Size Size VV40H 50-70 #N-05 #W-05 VV40HL VV40AK VV40AL VV40K VV40KK 100-130 #N-07 #W-07 VV40L VV40LQ VV40LL VV40LS 120-150 #N-08 #W-08 VV40Q 170-190 #N-11 #TW-111 VV40QS SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... -
Page 47: Pump Information
INSTALLATION, OPERATION, AND MAINTENANCE MANUAL 14 PUMP INFORMATION Purchase Date: _____________________ Purchase Order#: ___________________ Serial Number: _____________________ Equipment Number: _________________ PO Box 12145 Green Bay, WI 54307 www.summitpump.com Rev. 09/2018 SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP... - Page 48 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL SUMMIT PUMP MODEL VV40 INTERNAL GEAR PUMP...
