LaBOX Installation

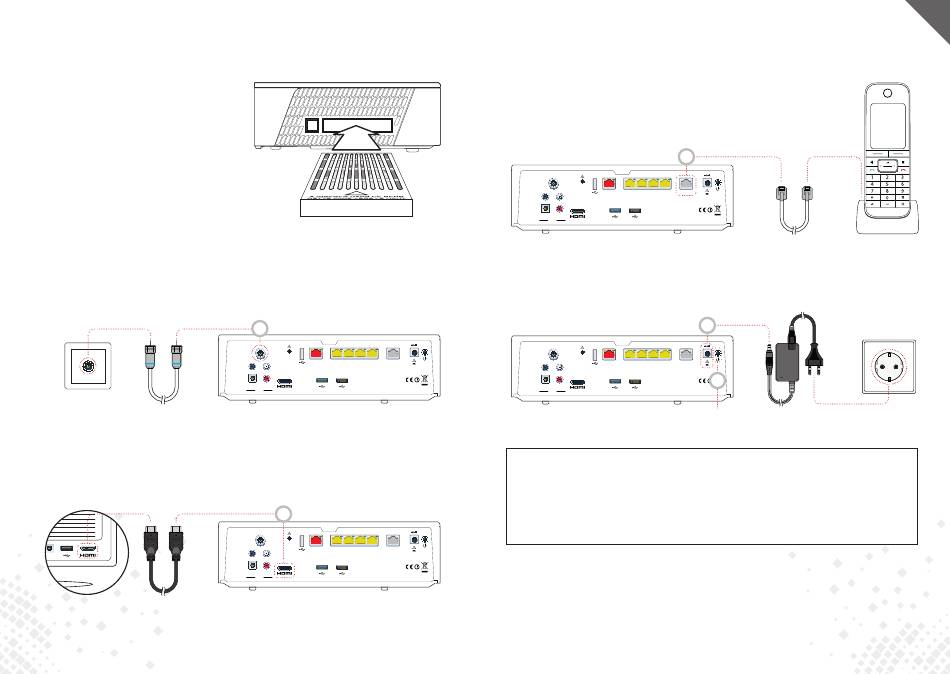

1• Hard drive installation
Insert your hard drive into the slot on the left
side of LaBOX.
Warning: please switch off your BOX before
inserting the hard drive.
2• Connecting your BOX to the wall outlet
Plug the antenna cable into the cable entry at the back of LaBOX and into the wall TV outlet.
Warning: Your TV outlet may look different from the one
TV outlet Antenna
cable
3• Connecting your BOX to the television
Connect one end of the HDMI cable to the HDMI TV/OUT port located on the BOX and the other
®
end to one of the HDMI ports on your TV.
®
OPTICAL
TV HDMI ® cable
• LaBOX Monaco Telecom
24
Hard Drive
below.
E
CABLE
USB 1 WAN Ethernet
RESET
COAXIAL L
LAN 1 LAN 2 LAN 3 LAN 4 TEL
12V 5A
USB 3 USB 2
OPTICAL R
Manufactured under license from Dolby Laboratories.
AUDIO
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
H
CABLE
USB 1 WAN Ethernet
RESET
COAXIAL L
LAN 1 LAN 2 LAN 3 LAN 4 TEL
12V 5A
USB 3 USB 2
OPTICAL R
Manufactured under license from Dolby Laboratories.
AUDIO
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
4• Connecting your BOX to the landline
Connect one end of the RJ11 cable (telephone cable) to the landline port at the back
of LaBOX and the other end to your home phone.
L
CABLE
USB 1 WAN Ethernet
RESET
COAXIAL L
LAN 1 LAN 2 LAN 3 LAN 4 TEL
USB 3 USB 2
OPTICAL R
Manufactured under license from Dolby Laboratories.
AUDIO
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
5• Connecting your BOX to a power supply
Connect your BOX to a power supply outlet using the AC adaptor provided with your Box.
Press the ON button at the back of LaBOX to turn it on.
CABLE
USB 1 WAN Ethernet
RESET
COAXIAL L
LAN 1 LAN 2 LAN 3 LAN 4 TEL
USB 3 USB 2
OPTICAL R
Manufactured under license from Dolby Laboratories.
AUDIO
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The installation is now complete.
If this is the first installation of LaBOX, please follow the
instructions that appear on your television screen.
Warning : if you have more than one box :
• The installation is the same for all your BOX.
• Each BOX has its own Internet network.
• Additionnal BOX don't support phone service.
12V 5A
Landline cable Home phone
M
12V 5A
N
On/Off AC Power supply
button adaptor outlet
EN
EN •
