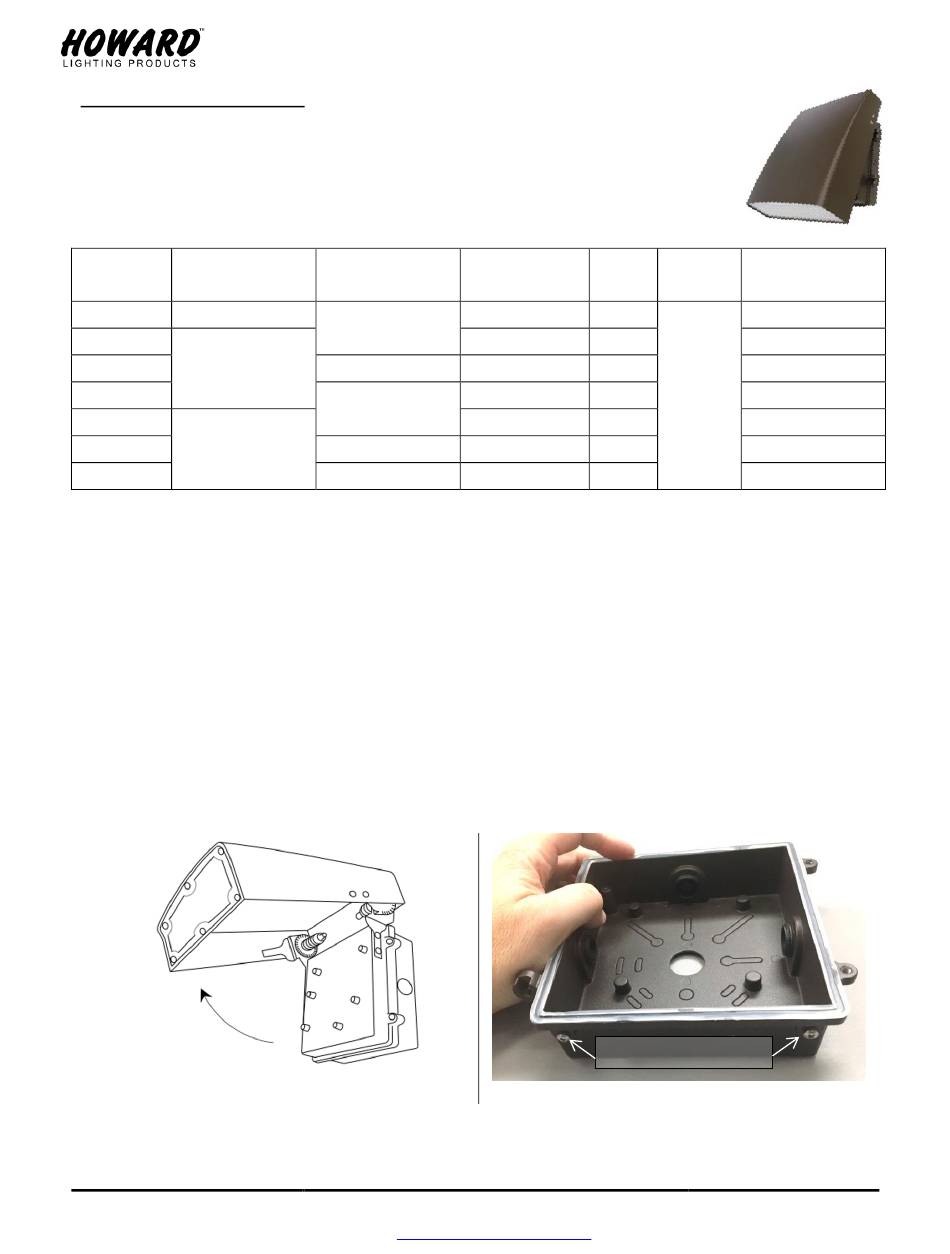

Howard VL Series Installation Instructions Manual

Versalite LED Wallpack
Applies to
VL12X, VL20X, VL30X, VL40X, VL50X, VL80X, VL100X, VL120X
Table 1: Product Specifications
Dimensions
Model
(LxWxH) inches
6x5x3.4
VL12X
VL30X
VL40X 9x7.6x4.5
VL50X
VL80X
VL100X 13x11x5.5
VL120X
Where X represents CCT (3=3000K, 4=4000K, 5=5000K)

SAFETY INSTRUCTION

Read instructions carefully before attempting to install fixture. Retain instruction for future
●
reference.
Disconnect power before installing or servicing. This fixture must be wired in accordance with the
●
National Electrical Code and applicable local codes and ordinances.
All wiring should be performed by a qualified electrician. This fixture is for outdoor use and should
●
not be used in areas with limited ventilation or high ambient temperatures.
Please consult product specifications (Table 1) before wiring to estimate total load.
●

INSTALLATION

1. Open the fixture 90° to get easy access to screws holding the back plate (figure 1). Loosen 2 screws
and take off the back plate.
2. Remove weep-hole screws from the bottom of the back plate (figure 2). VL12x series has only one
weep-hole screw in the bottom center.
INSTALLATION INSTRUCTIONS
Input Voltage
100-277VAC
347-480VAC
100-277VAC
277-480VAC
100-277VAC
Fig. 1
Howard Lighting Products | 580 Eastview Drive | Laurel, MS 39443
(toll free) 800.956.3456 | (direct) 601.422.0033
www.HowardLightingProducts.com
Input Current
Watt
(Max.)
0.15A 12W
0.38A 30W
0.17A 40W
0.52A 50W
1.0A 80W
0.48A 100W
1.5A 120W
Weep-hole screws
VL Series
Power Dimming
Factor
NA
NA
0-10V/PWM/VR
≥0.9 NA
0-10V/PWM/VR
0-10V/PWM/VR
0-10V/PWM/VR
Fig. 2
Page 1 of 2
Rev: 11/7/2017
