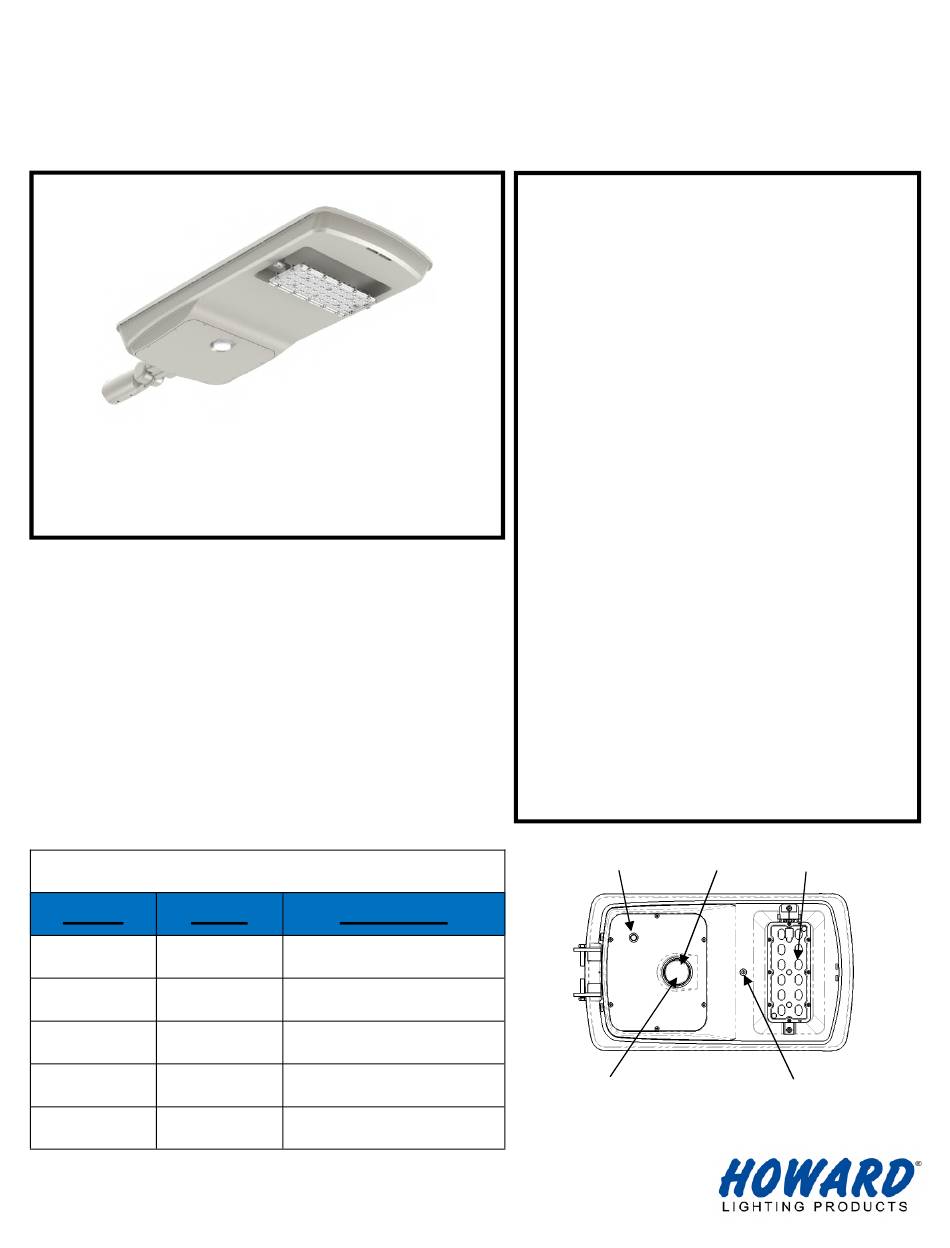

Howard SLS008 Series Installation Instructions Manual

For models:
SLS008xxxx; SLS020xxxx; SLS030xxxx
WARNING
Please read instructions carefully before attempting to
install fixture, and retain instructions for future reference.
Charge Condition Indicator
Color State
RED Solid
RED Slow Flash
RED Fast Flash
GREEN Solid
GREEN Slow Flash
2018-04-19
INSTALLATION INSTRUCTIONS
Condition
Fully Charged
Charging
Charging Fault
State of Charge >10%
State of Charge <10%
FIXTURE INSTALLATION
Note: To avoid over-discharge of battery, allow
the luminaire to fully charge before commis-
sioning.
1. Attach the adjustable fitter (T-40 torx security)
to the luminaire, and adjust to appropriate an-
gle for the installation latitude. (A minimum of
15° from horizontal is required for self-
cleaning.)
2. Adjust the LED array (phillips) to compensate
for the tilt of the luminaire. LED array should
point directly down.
3. Insert the mounting arm into the fitter and level
the LED array. Securely tighten the fitter to the
mounting arm (T40 torx security).
4. Actuate the switch located on the bottom of the
luminaire and confirm that the battery is fully
charged (solid red LED in motion sensor).
5. Cover the solar panel with and opaque materi-
al. The luminaire should turn on within a mi-
nute.
6. Program the luminaire via the wireless remote.
Power Switch
Charge Condition
Indicator
1
SLS - Solar LED
Streetlight
Sensor LED Array
Charging Port
(16VDC 5A MAX)
