INSTALLATION INSTRUCTIONS
1
Model
XFLE-C100-MV-TR Series
XFLE-C150-MV-TR Series
XFLE-C230-MV-TR Series
XFLE-C300-MV-TR Series
XFLE-C100-HV-TR Series
XFLE-C150-HV-TR Series
XFLE-C230-HV-TR Series
XFLE-C300-HV-TR Series
1
Where C represents CCT variations.

Warning:

To avoid electric shock:

Be certain electrical power is OFF before and
during installation and maintenance.

Luminaire must be connected to a wiring
system with an equipment-grounding
conductor.
Warning:
To avoid the risk of fire, explosion, or electric shock, this
product should be installed, inspected, and maintained by a
qualified electrician only, in accordance with all applicable
electrical codes.

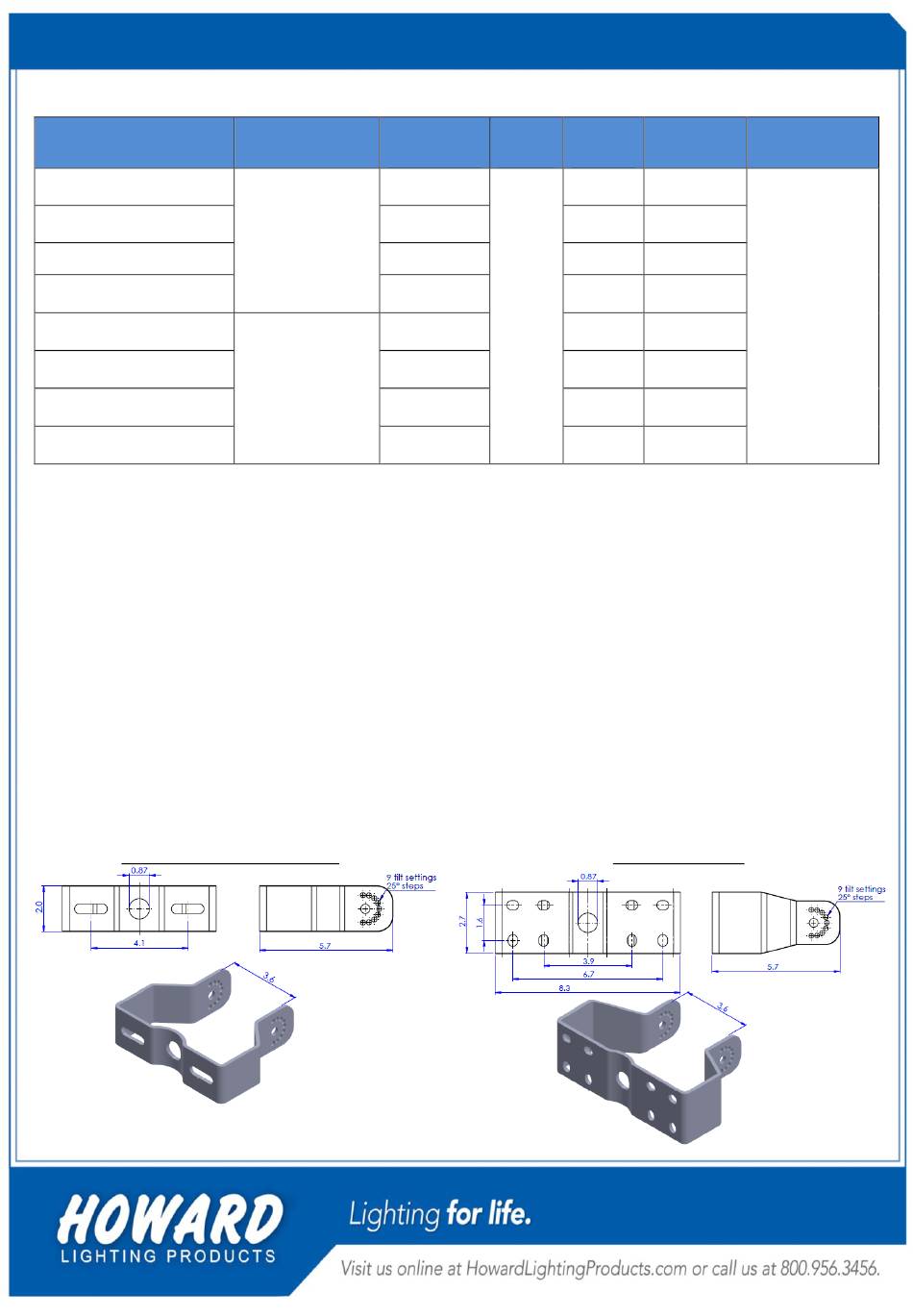

Mounting Details (inches):

For 100, 150, & 230W luminaires
Doc#1025-000244-001 RV0
XFLE-TR Series

Model number parameter list

Input Power
Input Voltage
(W)
100W
150W
100 – 277VAC
50/60 Hz
230W
300W
100W
150W
277 – 480VAC
50/60 Hz
230W
300W
Power Input
Factor Current
1.5A
1.8A
2.5A
3.5A
>0.9
0.55A
0.88A
1.4A
1.8A
Warning:

Make sure the supply voltage is the same as the
rated luminaire voltage.

Not suitable for hazardous location use.

Do not operate in ambient temperatures above
those indicated on the luminaire nameplate.

Keep lens tightly closed when in operation.
For supply connections use wire rated for at least 90°C (194°F)
For 300W luminaire
04/12/2018
Weight
Ambient rating
(lbs)
14
14
18
24
-40° to +40°C
-40° to 104°F
14
14
18
24
