WLD-TEC Fuego Instruction Manual

Safety enhanced laboratory gas burner
Hide thumbs Also See for Fuego:
Table of Contents

Advertisement

Quick Links

Download this manual
EN

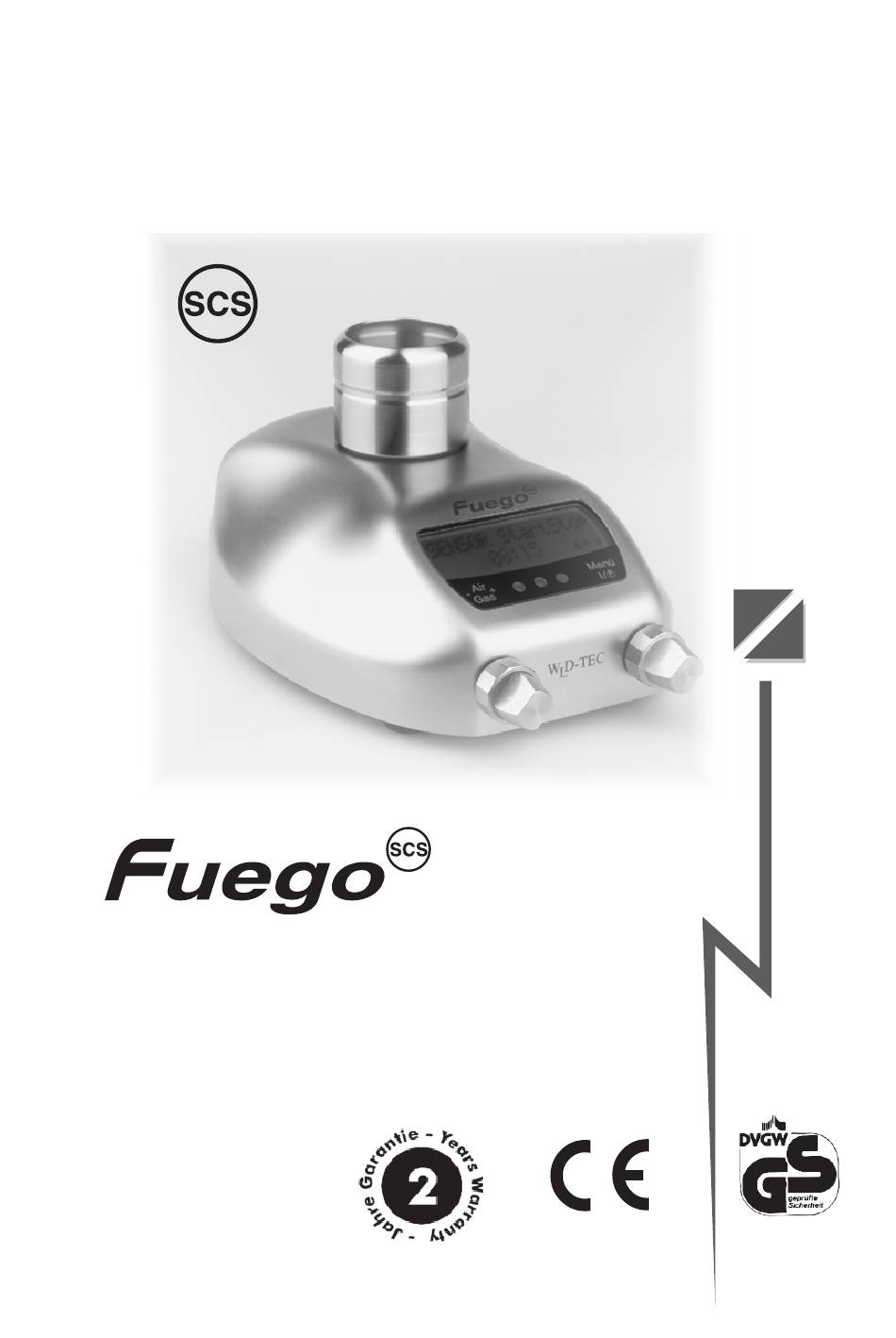

Instruction manual
Safety Enhanced
Laboratory Gas Burner
73/23/EEC
89/336/EEC
DIN 30665, part 1
EN 61326, 61000-3-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fuego and is the answer not in the manual?

Questions and answers

Related Manuals for WLD-TEC Fuego

Summary of Contents for WLD-TEC Fuego

  • Page 1 Instruction manual Safety Enhanced Laboratory Gas Burner 73/23/EEC 89/336/EEC DIN 30665, part 1 EN 61326, 61000-3-2...
  • Page 2 1 - Function knob 2,3 - Dual knob: 2 - Gas adjustment 3 - Air adjustment 4 - Multifunction Display (LCD) 5 - Power lamp 6 - IR-Sensor 7 - Burner head 7a - Flame orifice 8 - Connector for foot pedal 9 - Power connector for 9 V DC 10 - Gas inlet R 1/4“...

  • Page 3: Safety Precautions

    Read these instructions carefully to familiarize yourself with the product. Please retain these operating instruction for future reference. Use: Safety laboratory gasburners for heating and flame sterilizing. Ideal for use in cleanroom workbenches and the laboratory. WARNING: DO NOT LEAVE THE ACTIVATED LABORATORY GAS BURNER UNATTENDED! SAFETY PRECAUTIONS: •...
  • Page 4 The range: Fuego SCS Art.-No. 8.000.000 with IR-Sensor and LC-Display Adjustable IR-Sensor reaction distance DoubleClick IR-Sensor (connectable) 5 standard-programs for IR-Sensor, button (function knob) and foot pedal with count down display SCS (Safety Control System) BHC (Burner Head Control) Removable and decomposable burner head...

  • Page 5: Electrical Connection

    1.2 Electrical connection: Insert the power cord into the socket (9) on the back panel of the unit, or into the socket of the foot pedal. The default supply must be connected to a voltage source of 100 - 240 V / 50/60 Hz.
  • Page 6 According to the arrows in the LCD (4) all menu items can be selected and deselected. The arrows in the display (left, push, right) show, in which direction the next menu items are accessible. If a menu item for time adjustment or settings is selected the time or parameter can be altered generally by turning the function knob.

  • Page 7: Operation Settings

    - SENSOR Start-Stop: For flame ignition, activate the IR-Sensor (6) by passing your hand over it at a distance of 5- 50 mm. The flame is extinguished after renewed activation of the IR-Sensor. Additionally the flame is automatically extinguished when the burning timer has expired. Alternatively the flame can be extinguished by a short push on the function knob (1).

  • Page 8: Safety Symbols

    To adjust the Stand-By timer press the function knob (1) and set the time by turning the knob clockwise or counterclockwise. If the needed time is set, memorize and return to the settings menu with a short push on the function knob (1). - IR-Sensor: At the menu IR-Sensor, the detection range of the IR-Sensor can be varied.
  • Page 9 head is cooled down. Notice: Disconnecting the power supply or removing the power cord will clear the residual heat display even if the burner head is still hot. BHC: If the burner head is clogged “BHC“ will blink on the LCD. Additionally, if BHC is ON in the settings menu, the maximum burning time will be limited to 30 seconds.

  • Page 10: Cleaning And Sterilizing

    5. Cleaning and sterilizing: Allow sufficient time for burner orifice (7, 7a) to cool down before disassembling or cleaning the burner head. Check the unit is disconnected and that the gas supply is turned off at the mains. The burner can be cleaned with customary commercial disinfectants. Additionally, it is possible to remove the burner head and to clean it separately.
  • Page 11 8. Warranty: All Fuegos are covered under our two-year manufacturer warranty against any manufacture defects in material and workmanship. The WLD-TEC warranty guarantees all Fuegos under normal usage conditions and does not cover any damages as a direct result of user misuse or/and abuse.

  • Page 12: Troubleshooting Guide

    Troubleshooting guide The blue power lamp does not light up Check for correct connection and specification of the power adapter. Ensure that the original power adapter is used. Specifications: 9 V / DC, 1A Polarity: The foot pedal does not work Check for correct connection of the foot pedal.
  • Page 13 In that case, increase or decrease the IR-Sensor range at the point IR-Sensor in the setting menu.(see paragraph 2.3) The burner shuts-off due to overtemperature frequently In case of overtemperature increase the air ventilation or change the operation site. Service address: WLD-TEC GmbH Production & Service Halle-Kasseler-Str.49 37318 Arenshausen Germany...
  • Page 14 Technical data: Technology Microprocessor, LC-Display Programs IR Sensor: Start-Stop with timer, 1 sec - 2 h Auto-Off with timer, 1 sec - 2 h Foot pedal: Standard (flame during pressed foot pedal) Start-Stop with timer, 1 sec - 2 h Button: Start-Stop with timer, 1 sec - 2 h Safety features...
  • Page 15 Following the Directives 89/336/EWG (EEC) and 73/23/EWG (EEC) Electronic Laboratory gas burner Fuego SCS Typ / type 8.000.000 This declaration relates is in conformity with the relevant provisions of the following standards together with the normative document A1 mains connection.
  • Page 16 WLD - TEC GmbH Sales: Production und Service: Spandauer Weg 1 Halle-Kasseler Straße 49 D - 37085 Göttingen D - 37318 Arenshausen Telefon : +49 (0)551/793789 Telefon : +49 (0)36081/68940 Fax : +49 (0)551/793707 Fax : +49 (0)36081/68942 Internet: http://www.wld-tec.com Email: sales@wld-tec.com...
