CASTLES TECHNOLOGY

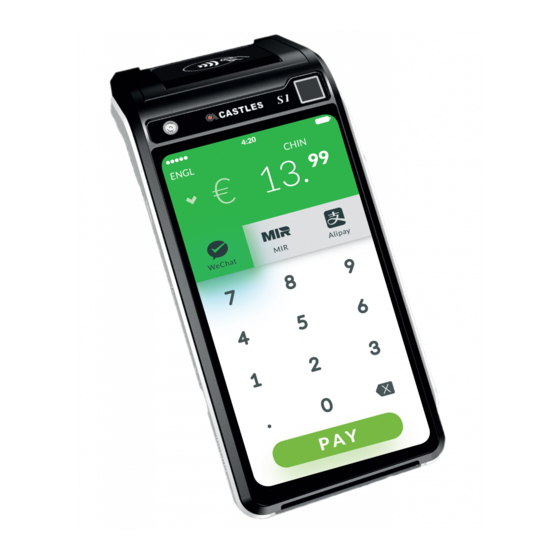

SATURN1000 EFT-POS Terminal
User Manual
Confidential
Version 0.4
Mar 2018
Castles Technology Co., Ltd.
6F, No. 207-5, Sec. 3, Beixin Rd., Xindian District,
New Taipei City 23143, Taiwan R.O.C.
http://www.castech.com.tw

Advertisement

Table of Contents
loading

Related Manuals for Castles Technology Saturn1000

Summary of Contents for Castles Technology Saturn1000

  • Page 1 CASTLES TECHNOLOGY SATURN1000 EFT-POS Terminal User Manual Confidential Version 0.4 Mar 2018 Castles Technology Co., Ltd. 6F, No. 207-5, Sec. 3, Beixin Rd., Xindian District, New Taipei City 23143, Taiwan R.O.C. http://www.castech.com.tw...
  • Page 2 Castles Technology Co., Ltd. All trademarks mentioned are proprietary of their respective owners.
  • Page 3 2. Add the description of setting the permissions of storage in “3.4 POS Demo”. Modify “2.2. Inserting the Battery”. Feb 27, 2018 Jeff Mar 15, 2018 Add FCC Warning. 5.1 Jeff Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 3...

  • Page 4: Table Of Contents

    Test Utility ......................18 3.4. POS Demo ......................21 Secure File Loading ....................26 4.1. APK Signing ...................... 26 4.2. APK Loading ...................... 28 Appendix ........................30 5.1. FCC Warning ..................... 30 Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 4...

  • Page 5: Introduction

    1. Introduction This document provides a guideline on operating and configuring Castles SATURN1000 terminal. The scope of this document includes setting up the terminal, basic operation, application life cycle, and some advance features. Confidential • All Right Reserved. Castles Technology Co., Ltd.

  • Page 6: Hardware Setup

    1. Paper Roll Box 6. Fingerprint identification 2. Front camera (200 MP) area 3. LCD Display (5.5”) 7. Contactless Card Landing 4. Smart Card Reader Zone 5. Magnetic Stripe Reader Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 6...
  • Page 7 8. Rechargeable Battery Cover 9. Rear camera (500 MP) 10. Photoflash 11. Product label 12. SAM Slots 1-4 13. Rechargeable Battery 14. Battery connector 15. GSM SIM Card Slots 1-2 Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 7...

  • Page 8: Inserting The Battery

    Step 2: Insert battery into compartment, battery contact point must align with battery connector. Step 3: Reverse the operation of step 1 to install the battery cover Note: Please confirm the battery is installed before starting the terminal. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 8...

  • Page 9: Inserting The Sam Card

    Step 2: Insert SAM card into desire slot. SAM 1 & 3: Gold contact at upper side of card and facing down. SAM 2 & 4: Gold contact at upper side of card and facing up. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 9...

  • Page 10: Inserting The Paper Roll

    Step 1: Pull up paper roll box handle. Step 2: Gentle open paper roll cover. Step 3: Insert paper roll as direction showed. Paper specification Width: 57mm Outside diameter: 40mm Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 10...

  • Page 11: Inserting The Gsm Sim Card

    Step 2: Open SIM socket and insert GSM SIM card into desire slot. SIM 1: Gold contact at upper side of card and facing down. SIM 2: Gold contact at upper side of card and facing up. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 11...

  • Page 12: Inserting The Memory Card

    Place the micro Micro SD SD card Close and push up the metal cover SATURN1000 Step 1: Remove battery cover / back cover Step 2: Place Micro SD memory card. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 12...

  • Page 13: Basic Operation

    “loader”, “Test Utility” and “POS Demo” for developer use. 3.1. System Panel Developer can use system panel to set system settings and check system versions.  Click on [App menu].  Click on [SystemPanel]. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 13...
  • Page 14  Use random number keypad to enter default password ‘00000000’ to both of first password and second password. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 14...
  • Page 15  Date & Time: Set date and time.  Select default application: Select the default application which will auto run after system boot up.  About: Show system versions. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 15...

  • Page 16: Loader

    3.2. Loader Download user application, or update Android system and kernel modules firmware.  Click on [App menu].  Click on [loader]. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 16...
  • Page 17 The loader will get into waiting for download status.  If download successes, the screen will display completed information. Notice: If cannot download success, please check the debug mode is disabled,. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 17...

  • Page 18: Test Utility

    3.3. Test Utility Diagnose terminal hardware components.  Click on [App menu].  Click on [Test Utility]. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 18...
  • Page 19  Click on [APP Info].  Revision: Display the android OS version.  Size: Display the memory size info. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 19...
  • Page 20 RTC: Get system RTC info.  Speaker: Diagnose the speaker function.  Touch: Diagnose the touch function.  Camera: Diagnose the rear camera function.  Finger Print: Diagnose the fingerprint function. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 20...

  • Page 21: Pos Demo

    3.4. POS Demo Test EMV/EMVCL function and demo use.  Click on [App menu].  Click on [POS Demo]. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 21...
  • Page 22  Select items.  Confirm items.  Select payment method.  Confirm Payment. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 22...
  • Page 23  Waiting Swipe, insert or tap card.  Process payment.  Payment approved.  Print receipt. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 23...
  • Page 24 If print receipt fail, please check the permission of “storage” that is enable or not. The steps to check the permission is shown as below.  Click on [Settings].  Click on [Apps].  Click on [POS Demo].  Click on [Permissions]. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 24...
  • Page 25 Enable “Storage”.  Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 25...

  • Page 26: Secure File Loading

    The Loader apply to download user application and kernel firmware. The loading process is secure by signing the files using ULD Key System. 4.1. APK Signing Castles Technology provides a tool named “CAPGen” to perform this task. The CAPGen is located at: C:\Program Files (x86)\Castles\SATURN1000\tools\CAPG (Evaluation Version)\ ...
  • Page 27 Note: If user would like to load multiple set of signed file, create a new file with extension of “mmci”. Then put the mmci file contents with the list of mci file. MultiApp.mmci Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 27...

  • Page 28: Apk Loading

    4.2. APK Loading User Loader is a tool provided by Castles Technology. It’s the formal way to download file to terminal. The Loader is located at: C:\Program Files (x86)\Castles\SATURN1000\tools\Loader  Run Loader.exe  Select COM port  Browse and select mci file or mmci file Refer to the chapter “3.2 Loader”...
  • Page 29  Press “Download” button to start download.  After download finish, the log screen will show message as following picture. Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 29...

  • Page 30: Appendix

    Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. ~ END ~ Confidential • All Right Reserved. Castles Technology Co., Ltd. Pg. 30...
