- Page 1 IZAR CENTER User Manual HYDROMETER GmbH Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411...
-
Page 2: Table Of Contents
Content Introduction _____________________________________________________________ 4 What is the IZAR CENTER? ___________________________________________________ 4 What is the M-Bus? _________________________________________________________ 4 Functions and options _______________________________________________________ 5 Housing and connections ____________________________________________________ 6 Scope of delivery ___________________________________________________________ 6 Installation______________________________________________________________ 7 Power supply ______________________________________________________________ 7 M-Bus ___________________________________________________________________ 7 2.2.1... - Page 3 Short-circuit __________________________________________________________________ 44 5.1.3 Automatic reading does not work ___________________________________________________ 44 PC communication_________________________________________________________ 44 5.2.1 IZAR CENTER search over LAN fails ________________________________________________ 44 5.2.2 LAN communication does not work _________________________________________________ 45 5.2.3 USB communication does not work _________________________________________________ 45 5.2.4 Serial communication does not work ________________________________________________ 45 5.2.5...
-
Page 4: Introduction
M-Bus master. In addition to reading M-Bus devices automatically and independently, the memory variant can also monitor the data read out and react to alarm conditions. The meter data stored in the IZAR CENTER can also be cyclically uploaded to an FTP server. -
Page 5: Functions And Options
The collected data can also be automatically uploaded to an FTP server. The IZAR CENTER must be connected via the LAN interface or a special GPRS modem for this purpose. -

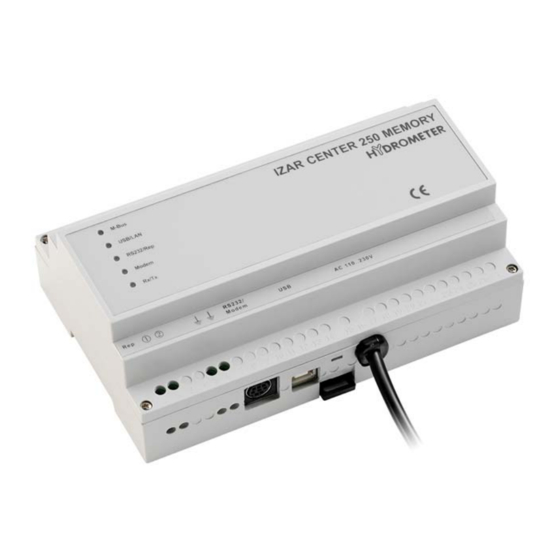

Page 6: Housing And Connections
• Installation sheet • System software CD (contains IZAR CENTER software) HYDROMETER GmbH Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411... -
Page 7: Installation
The M-Bus input is only intended for an IZAR CENTER without memory. An M-Bus signal source (e.g. another IZAR CENTER or IZAR CENTER Memory) can be connected to this input. All signals at this input to the IZAR CENTER are passed direct to the M-Bus output at the same speed. -
Page 8: Usb
DHCP is activated by default. This means that the IZAR CENTER automatically attempts to get an IP address. In this case, it is not clear which IP address the IZAR CENTER has been assigned by the IT system. If you wish to find your device in the PC network, you can use the TCP/IP search in the IZAR@CENTER software. -
Page 9: Serial
2.5.1 RS232 – PC If the serial interface is set to “PC” mode, you can connect the IZAR CENTER direct to a PC. You do not need to install a driver on the PC. Interface speeds (baud rates) of 300…57600 bauds can be used for communication with the IZAR CENTER. -
Page 10: Configuration
3.1.1 Basic operation/architecture As already mentioned above, an IZAR CENTER without memory serves only as a level converter /repeater. The operation of this type is therefore relatively simple compared with the IZAR CENTER Memory. As an IZAR CENTER Memory is equipped with functions like automatic reading of M-Bus devices and parameter monitoring/alarm handling, it works with internal lists. -
Page 11: Installing The Izar@Center Software
Only the Device List is required for recording readings. All four lists are required if you wish to use all the alarm monitoring functions of the IZAR CENTER. If you only want to send an SMS or e-mail as alarm notification, the Action List is not necessary. - Page 12 Start the IZAR CENTER software. The main window appears after starting the software: Status Display Connection selector Program Views Settings Device list Switch between tree view and list view Fig. 3-2 IZAR CENTER software main window Fig. 3-1 shows the major elements of the main window. General rule: Fields with a yellow background are used to show data.
-
Page 13: Connecting To The Izar Center
The 8-digit number of the entry corresponds to the serial number of your IZAR CENTER. To enable you to connect a LAN, modem or serial interface to the IZAR CENTER, you must first define a new connection. This is done by pressing the button. - Page 14 3.1.4.4 TCP/IP (LAN) Proceed as follows to set up a new LAN connection: • Make sure your PC is in the same network (same subnet) as the IZAR CENTER. • Select the TCP/IP option. • Enter the desired connection name in the Name/Description field.
- Page 15 If the reading was successful, this is shown by Operation successful appearing in the status display and the internal settings of the IZAR CENTER are displayed: Fig. 3-5 Reading status...
- Page 16 „No Memory!“ Internal actual date and time of IZAR CENTER. Currently executed processes in IZAR CENTER. The Tasklist displays if currently a alarm message is sent or a ftp upload is in progress. These processes may occure in any combinations. If none of the processes is active “IDLE” will be displayed. Following processes can be active: •...
-
Page 17: Reading Device List
The Period to read is part of settings fort he memory readout and is described in 3.4.1 3.1.5 Reading device list This operation is optional and only makes sense if you have already written a device list into the IZAR CENTER. • Press the button (Read internal status values and device list). -
Page 18: Hydrometer M-Bus Radio Receiver
3.2.2 HYDROMETER M-Bus radio receiver If you use HYDROMETER M-Bus receivers in your system, you can also configure and read these devices with the IZAR@CENTER software. For this purpose, you must first select the M-Bus receiver key in the program settings. Proceed as follows: •... -
Page 19: Reading Devices Automatically
The IZAR CENTER device list now contains the newly added devices. Reading devices automatically As described above, your IZAR CENTER Memory needs a device list to be able to read M- Bus devices automatically and record and monitor their data. This list contains several items... -
Page 20: Creating A Device List
The following steps are necessary to create a device list using a device search: 1. Set up a connection to your IZAR CENTER (see 3.1.4 Connecting to the IZAR CENTER 2. Change to the view (Read device). - Page 21 Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411 info@hydrometer.de · www.hydrometer.de...
- Page 22 3.3.1.2 Manual device search If a device list is already created in the IZAR CENTER and, for example, only a new device is to be added, you can also search manually for an M-Bus device instead of the time- consuming automatic device search. For this purpose you only need the M-Bus secondary address or the primary address of the M-Bus device.
- Page 23 If you have already generated a device list and saved it as a file, you can also reload this list from the file, modify it as necessary and write it into the IZAR CENTER. It is also possible to load a HYDRO CENTER device list file and import this into the IZAR CENTER. This is unfortunately not possible in the other direction.
- Page 24 Unique name (Description) of the M-Bus device. • How often is the device to be read (Read interval)? • How often is the IZAR CENTER to repeat the reading process in the event of an error (Read repeats)? Proceed as follows: •...
- Page 25 • The Read out retries field is for defining how often the IZAR CENTER is to repeat the reading of a device in the event of a reading error. You can also give several or all devices in the list the same number of Read out...
-
Page 26: Retrieving Data Collected
Access to the IZAR CENTER itself is independent of the service mode. This means that you can change the settings on the IZAR CENTER or read data from the memory at any time. Detailed description: If you have already written a device list into your IZAR CENTER, this is processed cyclically as desired. - Page 27 Proceed as follows: • Connect to the IZAR CENTER (as described in one of the options at 3.1.4) and read the status values of the IZAR CENTER. • Read the device list as described in 3.1.5 if desired. • Define how much data is to be read.
-
Page 28: Automatic Uploading Using Ftp
PC for this purpose). 3.4.2 Automatic uploading using FTP The IZAR CENTER can also upload its reading data cyclically to an FTP server. An .xml file is created for this purpose, which you can process with the HYDROMETER HYDRO- RADIO© software, for example. - Page 29 FTP server is initialized. Operation of automatic upload: In the first upload attempt the IZAR CENTER transfers all the stored data to the FTP server. Each additional upload only transfers the data to the server that has not yet been stored on the server, i.e.
-
Page 30: Alarm Monitoring
The upload interval defines the time intervals at which the uploads are to be carried out after saving the settings. Example: The internal clock of the IZAR CENTER shows the current time as 12:37 and you now save an FTP upload interval of 60 minutes. Subsequent uploads will now be carried out at 13:37, 14:37, etc. -
Page 31: Alarm Modes
M-Bus action: An alarm causes an M-Bus command to be sent to an M-Bus device. A condition for this alarm mode is that the device addressed can be reached over the M-Bus master output of the IZAR CENTER. 3.5.3 Alarm lists The configuration of alarms involves selecting the addressees and alarm texts as well as configuring the measured values. -
Page 32: Structure Of Alarm Reports (Sms And E-Mail)
M-Bus alarm actions If an M-Bus command is to be sent in response to an alarm (e.g. to connect a relay to a HYDROMETER HYDRO-PORT control), it is possible to store up to 100 of these commands in the Alarm Action List. - Page 33 (e) Alarm text 3.5.4.4 Creating/editing the alarm lists If the alarm functions are to be used, alarm lists must be created in the IZAR CENTER. You can execute up to 3 alarm actions when an alarm occurs: • Alarm SMS (only with a GSM/GPRS modem) •...
- Page 34 Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411 info@hydrometer.de · www.hydrometer.de...
- Page 35 Repeat this procedure for further alarm lists. Note: If you have already saved alarm lists in your IZAR CENTER or in a file and want to change a list, you can do this in the IZAR@CENTER software by pressing the...
- Page 36 3.5.4.5 Configuration of alarms If you want the IZAR CENTER to monitor the values of a connected M-Bus device, make sure the following conditions are fulfilled: • The Service mode is activated. • A device list has been created and loaded from the IZAR CENTER into the IZAR@CENTER program.
- Page 37 3. Consumption value: Monitors accumulating meter consumption readings such as volume. As this type of monitoring is relatively time-consuming, only maximum 20 consumption values can be monitored with the IZAR CENTER. • Select if an alarm is to be initiated when the value is to be watched for above (Overflow) or below (Underflow) the reference value.
- Page 38 (the device icon has a red background): • Now write the device list into the IZAR CENTER and deactivate the Service mode. Alarm monitoring is now active. Note: How quickly the alarm actions are executed in the event of an alarm condition depends on the read interval you have set.
-
Page 39: Configuration And Test
PC can be connected. 4.1.1 RS232 interface to modem (“Modem” mode) If you wish to use the IZAR CENTER in a system with a modem, you must set the serial interface of the IZAR CENTER to “Modem” mode. Proceed as follows: •... -
Page 40: Gprs Connection
3.4.2 Automatic uploading using FTP E-mail server If the IZAR CENTER is connected to a TCP/IP network over the LAN interface, it can send an e-mail if an alarm occurs. The data for a valid e-mail server are required for this purpose. -
Page 41: Tcp/Ip (Lan) Interface
TCP/IP (LAN) interface If you use the LAN interface of the IZAR CENTER, you may wish to change the settings. Settings are certainly necessary if you use e-mail alarms and/or FTP upload over LAN. Note:... - Page 42 Enter the IP address of your standard gateway in the Gateway field (required for FTP upload/e-mail). • The Port field is for setting the TCP-IP port over which the IZAR CENTER is to be reachable for configuration/reading. This port also uses the IZAR@CENTER software for communicating with the IZAR CENTER.
-
Page 43: Sms
Save your settings in the IZAR CENTER by pressing the button (Write parameter). If you have connected a GSM/GPRS modem to the IZAR CENTER and entered the Alarm Address List and Alarm Report List, you can also test sending an alarm SMS. This is advisable if you have taken a new system into operation or would like to carry out a fault diagnosis. -
Page 44: Troubleshooting
M-Bus network. In this case, none of the M-Bus devices connected can be reached over the IZAR CENTER. The IZAR CENTER is equipped with short-circuit protection. An M-Bus short-circuit is indicated by the red M-Bus LED flashing at 1-second intervals. -
Page 45: Lan Communication Does Not Work
• Check 5.2.1. • Check which TCP-IP port the IZAR CENTER is set to, e.g. using a USB connection. • Check whether you have set the right TCP/IP port in the IZAR@CENTER software for the logical connection to the device. -
Page 46: Exporting Data Memory
Have you dialled the right number? Make sure you use the data number of the SIM card and not the speech number. Have you written a PIN number into the IZAR CENTER? Has the PIN number been entered correctly? Exporting data memory 5.3.1... -
Page 47: Problems During Direct Reading Of Data Memory
Is a suitable GSM modem connected to the IZAR CENTER and is the modem power supply OK? • Check that the IZAR CENTER is set to Modem mode and that a PIN number has been entered. • Has an Alarm Address List been created and written into the IZAR CENTER? •... -
Page 48: Alarm Action Over M-Bus Not Executed
Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411 info@hydrometer.de · www.hydrometer.de... -
Page 49: Other Support
Other support 5.5.1 PC software updates Updates for the IZAR CENTER software are available at: http://www.hydrometer.com/systems/download.html 5.5.2 Documentation Further documentation for the IZAR CENTER is available at: http://www.hydrometer.com/systems/download.html 5.5.3 Hydrometer Customer Service For further questions and personal support: HYDROMETER GmbH Industriestr. -
Page 50: Appendix
Not all the value types provided in the telegram of an M-Bus device are admissible for alarm checking. The DIFs supported by the IZAR CENTER (no ‘extended’ DIFs) are shown in the following table; the data types not supported are shown with a grey background. -
Page 51: Vif Values Supported In Alarm Text
Industriestraße 13 · 91522 Ansbach · Telefon +49 (981) 18 06 - 0 · Telefax +49 (981) 18 06 – 615 Am Weimarer Berg 3 · 99510 Apolda/Thüringen · Telefon +49 (3644) 84 33 - 0 · Telefax +49 (3644) 84 33 - 411 info@hydrometer.de · www.hydrometer.de... -
Page 52: Led Indications
LED indications The LEDs on the front panel of the IZAR CENTER are used for detecting various operating states. The LEDs can have the follow states: • lights permanently • flashes slowly • flashes quickly Green (permanent): normal operation, M-Bus communication inactive...
