Wiring and Termination

BAPI recommends using twisted pair of at least 22AWG and sealant filled connectors for all wire connections. Larger
gauge wire may be required for long runs. All wiring must comply with the National Electric Code (NEC) and local codes.
Do NOT run this device's wiring in the same conduit as AC power wiring of NEC class 1, NEC class 2, NEC class 3 or with
wiring used to supply highly inductive loads such as motors, contactors and relays. BAPI's tests show that fluctuating and
inaccurate signal levels are possible when AC power wiring is present in the same conduit as the signal lines. If you are
experiencing any of these difficulties, please contact your BAPI representative.
BAPI recommends wiring the product with power disconnected. Proper supply voltage, polarity, and
wiring connections are important to a successful installation. Not observing these recommendations may
damage the product and will void the warranty.
Table 1: Humidty Transmitter with 4 to 20mA Output
Wire Color Purpose
White Not Used
Black Humidity Output
Red Power
Table 2: HumidityTransmitter with 0 to 5VDC Output
Wire Color Purpose
White Humidity Output
Black GND (Common)
Red Power
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com
4 to 20mA or 0 to 5V Humidity Output with Optional Temperature Sensor
Note
Not Used (Cap Wires)
4 to 20 mA, To Analog Input of Controller
10 to 35VDC
Note
0 to 5VDC, To Analog Input of Controller
Ground for Power and Humidity Output
10 to 35VDC or 12 to 27 VAC
Humidity Output
& Power
See Tables 1 and 2 above
for Wiring Information
Specifications subject to change without notice.
Duct and Outside Air Humidity (H200-H300)
Installation and Operating Instructions
Table 3: Temperature Sensor Lead Wire Colors
Thermistors
1.8KΩ Orange/Red
2.2KΩ Brown/White
3KΩ Yellow/Black
3.25KΩ Brown/Green
3.3KΩ Yellow/Brown
10K-2Ω Yellow/Yellow
10K-3Ω Yellow/Red
10K-3(11K)Ω Yellow/Blue
20KΩ White/White
47KΩ Yellow/Orange
50KΩ White/Blue
100KΩ Yellow/White
Additional sensors are available so your sensor may not be listed on this table.
Optional Temperature Sensor Output
See Table 3 above for Wire Colors
(Sensors are not polarity sensitive,
3 wires used for 3-wire RTDs)

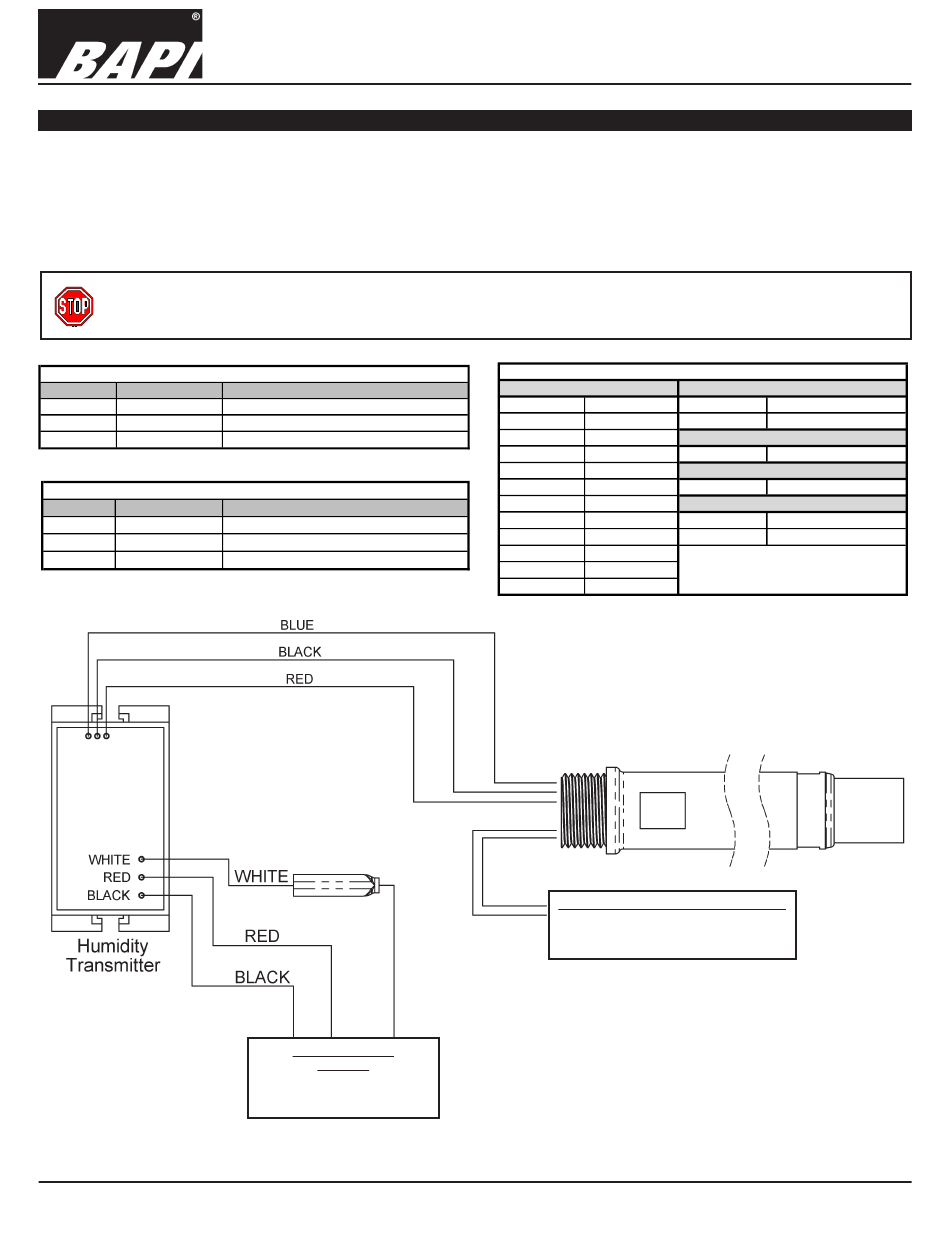

Fig. 9: Wiring Diagram
NOTE: BAPI's 2% and 3%, humidity transmitters ARE
polarity sensitive as well as reverse polarity protected.
rev. 02/15/18
Platinum RTDs - 2 Wire
100Ω Red/Red
1KΩ Orange/Orange
Nickel RTD
1KΩ Green/Green
Silicon RTD
2KΩ Brown/Blue
Platinum RTDs - 3 Wire
100Ω Red/Red/Black*
1KΩ Orange/Orange/Black*
*In the 3-Wire RTD sensors listed above,
the two wires of similar color are
connected together.
