Speakman GRAVITYFLO SE-4930 Instructions

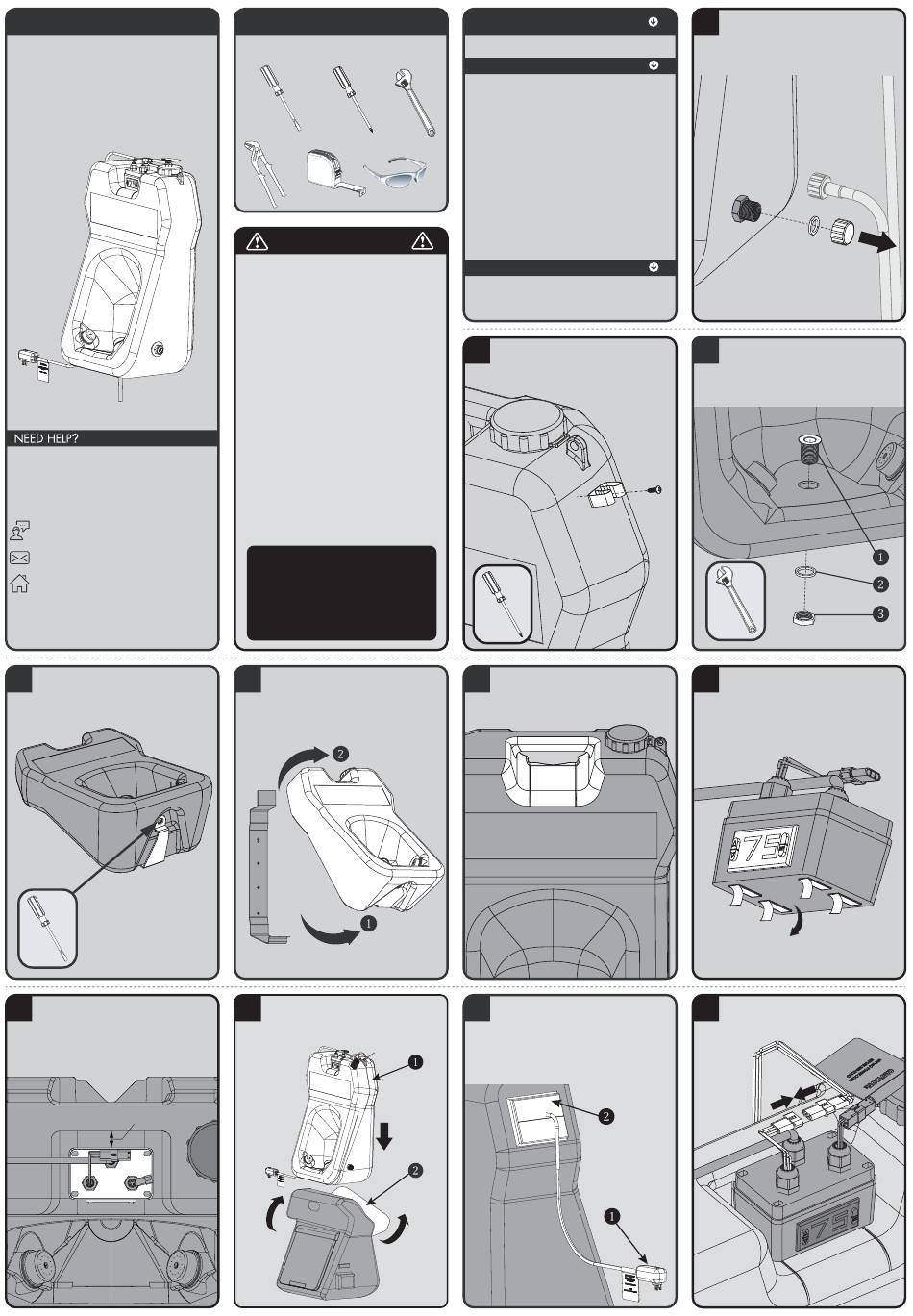

INSTRUCTIONS FOR MODELS

SE-4930 SE-4930
GRAVITYFLO
™
Freeze Protected Jacket
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SE-4930-01
4
Using a screwdriver, pry the lower
portion of the Wall Bracket away from
the recess on the Tank.
8
Ensure Digital Read Out Interface is facing
forward. The control box should be placed
1 - 1 / " from the handle to allow for
1
2
clearance of the mounting bracket.
1-1½"

TOOLS AND SUPPLIES

Flat Tip Adjustable
Phillips
Screwdriver Wrench
Screwdriver
Slip Joint Measuring Safety
Wrench Tape Glasses
IMPORTANT
Product is designed to be used indoors Product is designed to be used indoors
and outdoors. and outdoors.
When mounted in outdoor conditions, product must be When mounted in outdoor conditions, product must be
in a covered area and not directly exposed to outdoor in a covered area and not directly exposed to outdoor
elements such as rain and snow. elements such as rain and snow.
ANSI Z358.1 requires that all self-contained eyewash
shall be visually inspected weekly, unless the product
is placed in environments with extreme conditions that
may affect the form, fit, or function of the unit
(temperature, dirt, etc.). If this is the case, then the
inspection should be conducted more often as the end
user deems necessary. Speakman Company furnishes
a testing record tag (91-0635) with each unit. On this
tag, the date of inspection and the inspectors' initials
should be noted. ANSI Z358.1 specifies that the
height of the spray heads is to be between 33" - 45"
from the floor. The SE-4330 unit weighs approximately
185 lbs filled. Ensure the mounting surface (wall, etc.)
and mounting hardware can safely hold a minimum
vertical load of 300 lbs. Be sure to read instructions
thoroughly before beginning installation. Do not
overtighten any connections or damage may occur.
The unit should be full at all times, to achieve the
minimum 15 minute run time as stated by ANSI, in
case of an emergency. Refill the tank to a full level
after each activation. Before refilling tank dry and
clean outside of spray heads, and inside of pull strap
to remove debris, and to assure proper sealing.
WARNING: This units maintains the water
temperature within the tepid range of 60-90 F.
Depending on the water temperature within the tank
and the ambient conditions, it may take up to
24 hours for the water temperature to reach the
tepid range during initial start-up. If noted during
inspection the water temperature is outside that
range, the product should be taken out of service
and the condition troubleshooted.
5
Remove the empty Tank from the Wall
Bracket completely. Unsnap the Wall
Bracket from the recess of the bottom of
the Tank (1). "Unhook" the top of the
handle of the Tank from the Wall Bracket
(2).
9
Slide Tank Assembly (1) into Heated
Jacket (2) and assure the heating pad is
not folded and lying against the tank.

SAFETY TIPS

Be sure to wear eye protection during assembly and
mounting.

MAINTENANCE

Always disconnect power while servicing the unit and Always disconnect power while servicing the unit and
allow the unit to cool down before filling with water. allow the unit to cool down before filling with water.
Occasional cleaning and disinfection is recommended.
To clean the inside of the unit, add 1/2 cup (4 fluid
oz.) of Clorox (liquid bleach) to a full tank of potable
water. Allow the mixture to penetrate for 15 minutes.
Drain tank, and rinse thoroughly several times with
potable water. Take care to not overtighten drain cap
as damage may occur. For further information about
Clorox, call toll-free at 1-800-292-2200. Follow
refilling instructions in this manual and place the tank
back in service. Should any repair part be required,
use only genuine SPEAKMAN parts for repair or
replacement. See available replacement parts in this
document, to order parts call 1-800-537-2107.
As part routine inspection, the unit shall be checked for
adequate water level. (Within 5" of the top cap)

WARRANTY

3 Year Limited Warranty
Additional warranty information can be found at:
www.speakman.com
2
If your unit has as Hose Clip installed,
remove it at this time. Reinstall the self
tapping screw to seal hole.
6
Thoroughly clean and ensure the top area
of the tank is free of dirt and debris before
adhering Electronic Controller Box to
handle area.
10
Place Power Supply Cable (1) inside of
Tank Jacket. Pass the AC cord through
the Jacket Access Panel (2) located on
the upper left side panel. Verify AC plug
adapter is fully extended through the
Jacket (2). Velcro Jacket Access Panel
closed.
1
Remove the Drain Plug or Drench Hose (if
equipped) and drain the unit completely.
3
Disassemble drain parts from unit. Remove
Drain Nut (3) with wrench. Remove Drain
Washer (2) from threading of the Drain
Fitting. Remove Drain Fitting (1) through
openings in the Tank and Wall Bracket.
7
Remove Tape Release Liner (x4) on bottom
of Controller Box to expose tape.
11
Connect 3 Pin Wiring Harness from Jacket
to Controller.
