- Page 1 WTSL-SN-1 Alarm Control Unit with Wi-Safe 2 ® Installation and User Guide For use with Wi-Safe 2 Smoke, Heat and Carbon Monoxide Alarms...
- Page 2 EN 301 489-1 V1.9.2, EN 301 489-3 V1.6.1, EN 300 220-2 V3.1.1 Frequency: 868MHz With the present declaration, Sprue Safety Products Ltd confirms that the WTSL-SN-1 conforms to the essential requirements and other relevant measures of the 2014/53/EU Directive. The Declaration of Conformity can be accessed on the website: http://spru.es/EC-WTSL-SN-1 Email: specification@fireangeltech.com / Web: www.fireangel.co.uk...
-
Page 3: Table Of Contents
INSTALLATION GUIDE USER GUIDE Features ....4 Testing the Alarm System ..12 Positioning ....6 Product Functionality . -
Page 4: Installation Guide

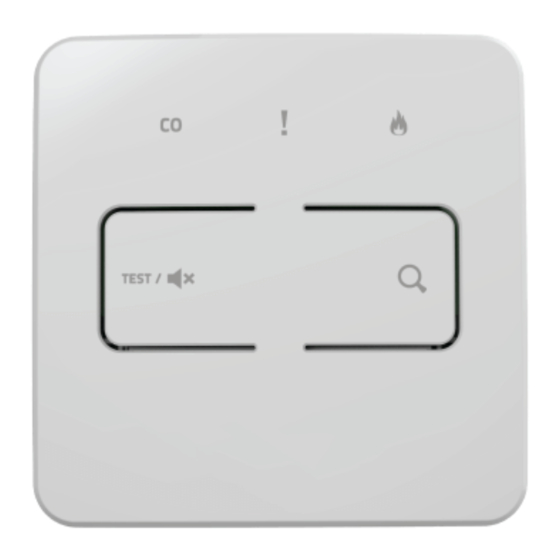

INSTALLATION GUIDE FEATURES • Wi-Safe 2 technology, enabling wireless interlinking between other Wi-Safe 2 products. ® • Test / Silence ( ) button, allowing you to regularly test all wirelessly interlinked alarms on a network. Pressing the silence button will reduce the sensitivity of alarms for up to 10 minutes, unless carbon monoxide has been detected, in which case you can use the 'Locate' function below to find the source alarm. - Page 5 Fault indicator Carbon monoxide Smoke / Heat alarm indicator alarm indicator Test / Silence button Locate button...
-
Page 6: Positioning
POSITIONING This Alarm Control Unit is suitable for use in domestic premises only. It should be installed at an accessible point on the wall, in a location where it will not be accidentally operated or knocked. INSTALLATION • Ensure this Alarm Control Unit is installed by a competent person who feels able to install it according to the instructions. - Page 7 ACTIVATING THE ALARM CONTROL UNIT The Alarm Control Unit has a sealed-in non- replaceable battery. To activate the control unit remove the disabling tab. Upon activating the control unit all three LED's should simultaneously flash twice, to indicate that they are working. Once the alarm is activated it can then be learnt into a Wi-Safe 2 network, before securing to the wall bracket.
-
Page 8: Wireless Interlink
WIRELESS INTERLINK The Alarm Control Unit is designed to be used as a remote interface on a network of up to 49 products within the Wi-Safe 2 range. The Alarm Control Unit can be used to test, silence or locate any alarms on the Wi-Safe 2 network. - Page 9 HOW TO ‘LEARN-IN’ THE ALARM CONTROL UNIT TO A WI-SAFE 2 NETWORK: 1. Using a ballpoint pen, briefly push and release the 'learn button' on the back of the Learn button control unit. The red LED next to the learn button will flash briefly then light up for approximately 5 seconds.
-
Page 10: Making The Alarm Control Unit Tamper Proof
4. To complete the installation simply slide the control unit onto the bracket. The control unit is now part of the whole network. The method above assumes you have already installed your alarm network, prior to installing your Alarm Control Unit. If you want to install your Alarm Control Unit first, you can learn your smoke, heat and CO alarm into it by following the instructions in your alarm manual, using the... - Page 11 The Alarm Control Unit is provided with an anti-tamper feature, ensuring, where needed it cannot be removed from the wall. To make use of this feature you will need to push out the two blanking plates on the top right-hand side of the bracket, using a small screwdriver, being careful to support the bracket fully whilst doing so.
-
Page 12: User Guide
USER GUIDE TESTING THE ALARM SYSTEM Press the Test / Silence ( ) button to confirm that the control unit is operating properly. This will instigate a three minute test. All networked alarms should sound. To stop the test (earlier than 3 minutes), simply press the Test / Silence ( ) button again. -
Page 13: Product Functionality
PRODUCT FUNCTIONALITY Function Description Test button: This allows you to test all wirelessly interlinked alarms from one centralised location. Test / Silence button Silence button: This will silence all wirelessly interlinked smoke and heat alarms and reduce the system sensitivity for up to 10 minutes. In an alarm event this will silence all wirelessly interlinked alarms Locate button except the initiating alarm which has sensed carbon monoxide / smoke. - Page 14 LOCATE BUTTON If the alarms are sounding and an alarm indicator is flashing, but there's no obvious hazard, pressing the 'Locate' button ( ) will silence all wirelessly interlinked alarms except for the initiating alarm which has sensed smoke / heat or carbon monoxide. Within two minutes the system will return to normal operation and the alarms will continue to sound if smoke / heat or carbon monoxide is still present.
- Page 15 ) repeatedly until the source alarm is identified (fully compatible with the FireAngel Specification Wi-Safe 2 smoke, heat and CO alarms). Please Note: Only the most recent alarm event will be visible. If both a CO and smoke / heat alarm have previously been activated, both LED's will show but the CO alarm will always take precedence, and this is the alarm which will sound.
-
Page 16: Reorganising A Network
Check all alarms are on their base plate and activated. If all alarms are activated, clear the fault by pressing the locate button twice. REORGANISING A NETWORK If you have un-learnt and replaced or removed any alarms, you can 'reorganise' in order to optimise the network performance. -
Page 17: When An Alarm Sounds
not delete wanted units. In case one of the working units is out of range for networking, please check the installation position of the units and adjust / install an additional unit to help with the routing of messages. WHEN AN ALARM SOUNDS Never ignore an alarm. -
Page 18: Led Indicators
LED INDICATORS Red Smoke / Red CO LED Amber Fault LED Status Action required Heat LED Please refer to the 'Wireless Flashing for 10 Flashing for 10 Flashing for 10 The Alarm Control Unit is Interlink' section to 'learn- seconds, every seconds, every seconds, every not part of a network. - Page 19 Red Smoke / Red CO LED Amber Fault LED Status Action required Heat LED To exit 'Reorganisation Mode' hold the 'Locate' This indicates that the button for 5 seconds, wait a All 3 LED's flash together ( ) 3 times, then a 'Reorganisation Mode' couple of minutes and then fourth flash (...
-
Page 20: Troubleshooting
Unit Tamper proof' section. If you have any questions about the operation of your Alarm Control Unit, please visit the FireAngel website for FAQs: www.fireangel.co.uk alternatively contact Technical Support via email: specification@fireangeltech.com or by calling: 0800 171 2009. - Page 21 WTSL Compatibility Chart WST-630 WST-630 Function WHT-630 W2-CO-10X WSM-SN-1 WHM-SN-1 (Prior to 2014 (2014 Model Models) onwards) Test Silence Alarm Memory Locate Locate (SOS Fault Finding) Re-organisation...
-
Page 22: Maintenance
MAINTENANCE • Do not remove any screws or open the main casing of the control unit. Any attempt This Alarm Control Unit will act as a remote to do so may cause malfunction and will interface between the alarms in your home when invalidate the warranty. -
Page 23: Disposal
Ltd hereby warrants that during the five year period commencing from the date of purchase Sprue Safety Products Ltd, at its discretion, agrees to replace the unit free of charge. The warranty on any replacement WTSL-SN-1 Alarm Control Unit, will last for the remainder of the period of the original warranty in respect of the unit originally purchased –... - Page 24 Sprue Safety Products Ltd shall not be liable for any incidental or consequential damages caused by the breach of any expressed or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration for five years. This warranty does not affect your statutory rights. Except for death or personal injury, Sprue Safety Products Ltd shall not be liable for any loss of use, damage, cost or expense relating to this product or for any indirect or consequential loss, damages or costs incurred by you or any other user of this product.
- Page 28 Heat Alarm Smoke Alarm Wireless: WHM-SN-1 Wireless: WSM-SN-1 Non-Wireless: HM-SN-1 Non-Wireless: SM-SN-1 Carbon Monoxide Alarm Alarm Control Unit Wireless: W2-CO-10XT Wireless: WTSL-SN-1 technology included in all wireless products...
