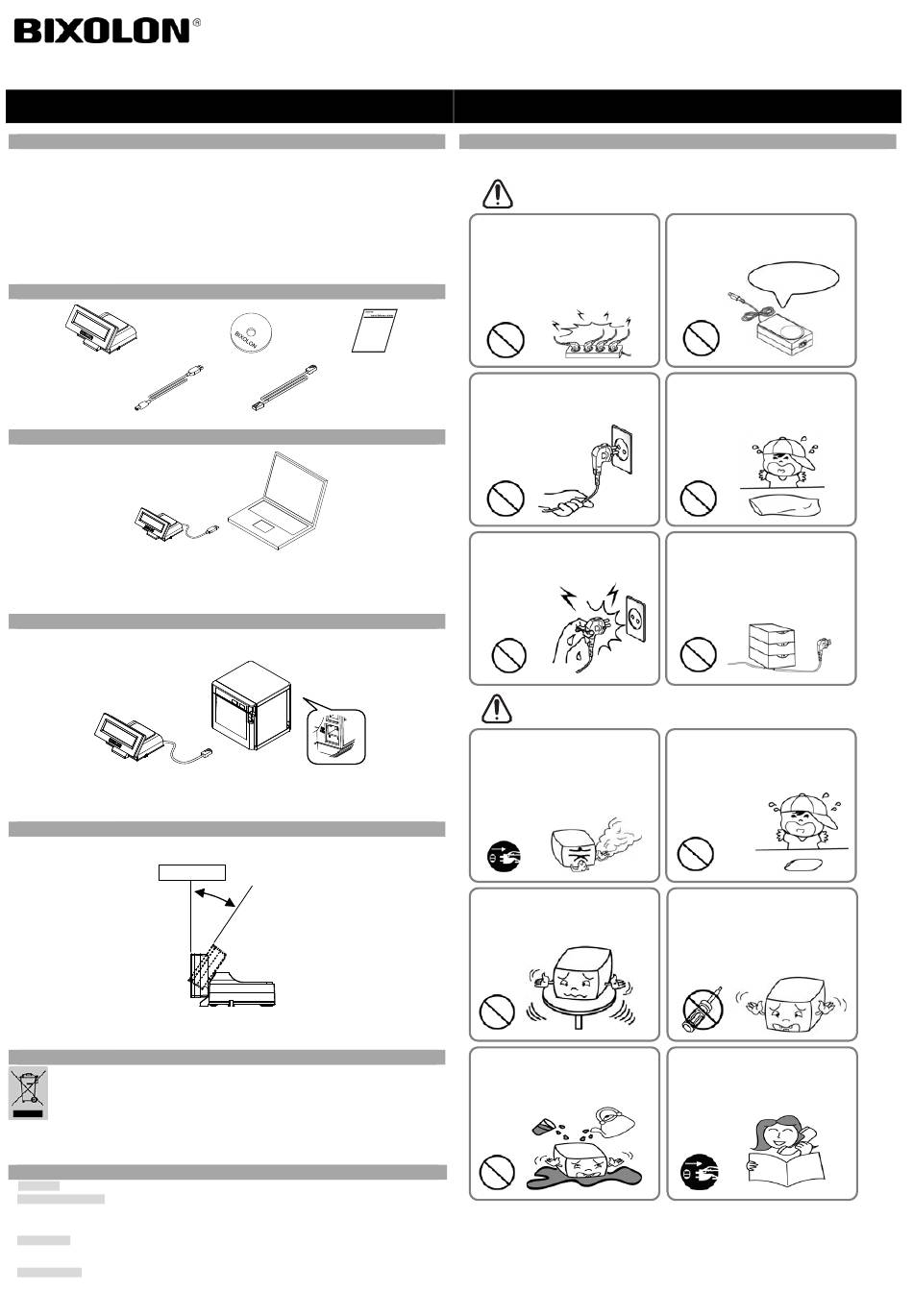

BIXOLON BCD-3000 Installation Manual & Safety Manual

Display Installation Guide & Safety Guide
KN10-00007A (Rev.1.0)

◈ Information

This Installation Guide includes a brief outline of information necessary for product installation. For more
detailed installation information, please refer to the user manual in the enclosed CD. The contents of the CD
include the following.
1. Manual: User Manual, Command Manual, Code Page, Software Manuals
2. Drivers: Windows Drivers, OPOS Drivers, VCOM(USB) Drivers
3. SDK: mPOS SDK(Android, Windows, iOS)
4. Utility: Customer Display Utility
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our
products. In following, product specifications and/or user manual content may be changed without prior
notice.

◈ Components

BCD-3000
USB Cable(Option)

◈ How to Connect (USB)

BCD-3000
1. Install the USB Virtual COM driver.
2. Connect the display cable to a computer via a USB port.
3. Turning on power of the computer leads to the automatic detection of the new hardware connected to
the PC via the USB port.
4. Once the driver is installed, the display is ready to receive data.

◈ How to Connect (RJ45)

Connect the display cable to the LCD port on the printer.
Make sure to connect to the LCD port as it is unique to our model.
BCD-3000
※ Caution
Use only the compatible cable as the RJ45 port is designed exclusively for Bixolon SRP-Q300/302 printer
serial (UART) communication port. Do not connect the RJ45 Plug to any port other than the serial
communication port (especially, LAN port) to avoid damage.

◈ Tilting Features

The device can be tilted to the degree you want. Please follow the instructions below to avoid damage or
malfunction when installing the device. The screen can be tilted to the right from the center line.
(Tilt: max. 35°)
Center Line
※ Caution
Do not tilt over the limit as it can cause damage.
To change angle of display screen with ease, you might as well hold stand to adjust it.

◈ WEEE (Waste Electrical and Electric Equipment)

This marking shown on the product or its literature, indicates that is should not be disposed with
other household wastes at the end of its working life, To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government office,
for details of where and how they can take this item for environmentally safe recycling. Business
users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposa

◈ BIXOLON Co., Ltd.

● Website http://www.bixolon.com
1
● Korea Headquarters
(Add) 7~8F, (Sampyeong-dong), 20, Pangyoyeok-ro241beon-gil,
Bundang-gu, Seongnam-si, Gyeonggi-do, 13494, Korea (ROK)
(Tel.) +82-31-218-5500
● U.S. Office
(Add) BIXOLON America Inc., 3171 Fujita St, Torrance, CA 90505
(Tel.) +1-858 764 4580
● Europe Office
(Add) BIXOLON Europe GmbH, Tiefenbroicher Weg 35 40472 Düsseldorf
(Tel.) +49 (0)211 68 78 54 0
CD Installation Guide
SERIAL RJ45 Cable(Option,40cm)
Computer
USB
SRP-Q300/302
Serial
(RJ45)
35°
CUSTOMER DISPLAY

◈ Safety Precautions

In using the present appliance, please keep the following safety regulations in order to
prevent any hazard or material damage.
WARNING
Violating following instructions can cause serious injury or death.
Do not plug several products in one
multi-outlet.
• This can provoke over-heating and a fire.
• If the plug is wet or dirty, dry or wipe it before
usage.
• If the plug does not fit perfectly with the outlet,
do not plug in.
• Be sure to use only standardized multi-outlets.
PROHIBITED
Do not pull the cable to unplug.
• This can damage the cable, which is the
origin of a fire or a breakdown of the printer.
PROHIBITED
Do not plug in or unplug with your
hands wet.
• You can be electrocuted.
PROHIBITED
CAUTION
Violating following instructions can cause slight wound or damage the appliance.
If you observe a strange smoke, odor or
noise from the printer, unplug it before
taking following measures.
• Switch off the printer and unplug the set from the
mains.
• After the disappearance of the smoke, call your
dealer to repair it.
TO UNPLUG
DISPLAY
Install the printer on the stable surface.
• If the printer falls down, it can be
broken and you can hurt yourself.
DISPLAY
PROHIBITED
Do not let water or other foreign objects
in the printer.
• If this happened, switch off and unplug
the printer before calling your dealer.
PROHIBITED
DISPLAY
BCD-3000
You must use only the supplied adapter.
• It is dangerous to use other adapters.
ONLY SUPPLIED ADAPTER
PROHIBITED
Keep the plastic bag out of children's
reach.
• If not, a child may put the bag on his head.
PROHIBITED
Do not bend the cable by force or leave it
under any heavy object.
• A damaged cable can cause a fire.
PROHIBITED
Keep the desiccant out of children's
reach.
• If not, they may eat it.
PROHIBITED
Use only approved accessories and do not
try to disassemble, repair or remodel it
for yourself.
• Call your dealer when you need these services.
• Do not touch the blade of auto cutter.
DISASSEMBLING
PROHIBITED
DISPLAY
Do not use the printer when it is out
of order. This can cause a fire or an
electrocution.
• Switch off and unplug the printer
before calling your dealer.
TO UNPLUG
DISPLAY
DEALER
