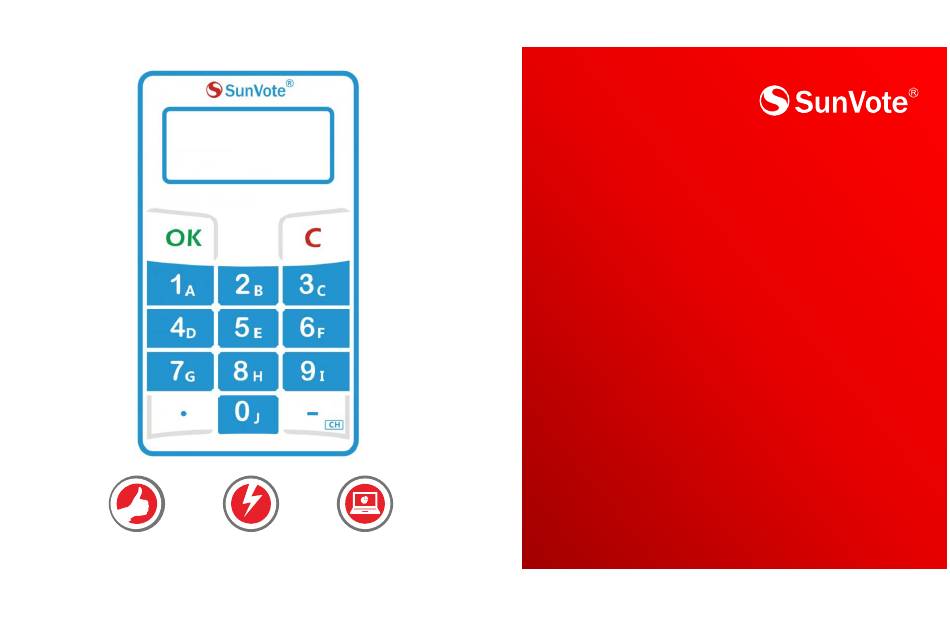

- Page 1 Keypad User Manual 2018/04/15 Easy Use Quick Innovative...
- Page 2 Content 1‐ Appearance Description 2‐Preparation Work 3‐System Connection 4‐System Settings: Keypad Match, Set ID, Management 5‐ Voting Functions: Sign in Vote Choice Sequence Numeric Rush Answer 5‐ Voting Functions: Sign in, Vote, Choice, Sequence, Numeric, Rush Answer 6‐FAQ & Notes...
- Page 3 1- Appearance Description Model Power On Press any key to power on Signal Strength 【 】 Long press 【C】 till “‐‐‐‐‐‐” appears on the screen, then Po er Off Power Off LCD Display release your hand to turn it off Press 【OK】 to sign in, LCD will show “OK ” after successful Sign In registration Cancel Submit Press【1】【2】【3】 for yes/no/abstain, and LCD will Vote show“OK” if successfully submit. Press【1】/【2】 for yes/no (true/false), and LCD will Alphanumeric Judge show“OK” if successfully submit show OK if successfully submit.
- Page 4 2‐Preparation Work Please check the keypad batteries before use. If icon shows on LCD, it indicates the battery is low. Please change new CR2032 batteries. ...
- Page 5 3‐System Connection 3‐ Set up the 2‐Connect base Class 5, Grade I projector & station station screen screen English Test 1‐Install 1 Install software 4‐Power on keypads for No network connection is required in the conference hall; testing The projector and screen are prepared by users.
- Page 6 4.1-System Settings ：Keypad Match‐Free Mode 【 Free Mode】 Keypad is able to communicate with any base station freely by inputting the appropriate channel of the base 【 Free Mode】 Keypad is able to communicate with any base station freely by inputting the appropriate channel of the base. 【 How to Set】 Free mode is controlled by base station. However the base is set as match mode from factory, we may change it to free mode in SunVote ARS Tool Kit as shown on the bottom left. When the free mode base is connected, follow the steps as below : Long press 【‐】 for 3 seconds, and input the correct channel when “CH” appears on the screen , press OK to connect. Keypad shows“Channel” and “OK”, the buzzer beeps 3 times shortly to indicate buzzer beeps 3 times shortly, to indicate ...
- Page 7 4.2‐ System Settings: Set Keypad ID 【 Why to Set ID】 Keypad ID is convenient for device management, test and troubleshooting. ID should be unique. 【 Why to Set ID】 Keypad ID is convenient for device management, test and troubleshooting. ID should be unique. 【 How to Set ID 】 Run SunVote ARS Tool Kit ，go to Keypad and click Start Setting. Now press and hold 【OK】 button on keypad, and release your hand after a new ID showing on keypad and toolkit. New ID in ARS Tool kit will add 1 automatically, so please press another keypad to set its ID in ascending order. For end‐user, ID is set before delivery.
- Page 8 4.3‐System Settings: Management Modification Mode： Use software to allow or not allow to modify the answer. Press 【C】 to modify after submitting under modifiable mode. Press the appropriate functional buttons to resubmit directly for single choice/judge and vote; Confidential Mode：Use software to enable or disable the confidential mode . Once enabled, LCD will only show “OK” without the exact voting value (i.e.. A/B/C) for confidence. Submitting Mode： Use software to allow or not allow to submit less than the selectable options. E.g.: if the answer of a multiple choice is ABC, you may submit AC if it’s allowed; otherwise, only the answer with 3 options like BCD is acceptable. Identification Mode: Each keypad has a unique and inalterable 12‐digit serial number. Set it in software or SunVote ARS Tool Kit to identify keypad by SN/ID. If set as SN mode, the keypad SN will show in software when polling. Transmit Frequency Range:2403MHz-2480MHz; Receive Frequency Range:240 MHz to 2480MHz...
- Page 9 5.1‐ Voting functions：Sign in 请按OK键签到 请按OK键签到 【 】 When start Sign in, press 【OK】 to sign in according to the indication on keypad and “OK” will be displayed after successfully submitting. ...
- Page 10 5.2‐ Voting functions： User‐ID 请按OK键签到 请按OK键签到 When start Sign in input numbers according to the indication on keypad and press 【OK】 to sign in “OK” will be When start Sign in, input numbers according to the indication on keypad and press 【OK】 to sign in. OK will be displayed after successfully submitting. Max support 16 numeric characters; User‐ID is a group of specific numbers to bond the randomly distributed keypad with the user, such as student ID or Staff ID.
- Page 11 5.3‐ Voting functions： Back‐Stage Signin 请按OK键签到 请按OK键签到 Start Signin by software then input numbers while keypad shows “CHEC ”and press 【OK】 to sign in LCD says “OK” after Start Signin by software, then input numbers while keypad shows CHEC and press 【OK】 to sign in. LCD says OK after successfully submitting and goes to response interface. If input a wrong code, keypad will say “Err”, and now input a new code. Max support 16 numbers for ID mode and 12 numbers for SN mode; Back‐Stage Signin means “Signin” mode is no need to close during polling, and latecomer may join the response and bond the randomly distributed keypad with him/or her by inputting a group of specific numbers , such as student ID or Staff ID.
- Page 12 5.4‐ Voting functions: Single Choice 请按OK键签到 请按OK键签到 When start response, press alphanumeric keys to submit according to the indication on keypad, and “OK” will be displayed after successfully submitting. Set the confidential mode in software, and support 1 out of 10 options.
- Page 13 5.5‐ Voting functions: Multiple Choice 请按OK键签到 请按OK键签到 When start response, press alphanumeric keys to input your answer and press 【OK】 to submit according to the indication on keypad, and “OK” will be displayed after successfully submitting. Set the confidential mode in software, and support maximum 10 out of 10 options, and display the last 6 letters only.
- Page 14 5.6‐ Voting functions: Sequence 请按OK键签到 请按OK键签到 When start response press alphanumeric keys to input your answer and press 【OK】 to submit according to the When start response, press alphanumeric keys to input your answer and press 【OK】 to submit according to the indication on keypad, and “OK” will be displayed after successfully submitting. Set the confidential mode in software, and support maximum 10 out of 10 ranking options, and display the last 6 letters only. Set submitting mode in software , such as repeated selection ( i.e. AABC).
- Page 15 5.7‐ Voting functions：Judge 请按OK键签到 请按OK键签到 【1】/【2】f When start Vote, press 【1】/【2】for Yes/No (True/False) to vote according to the indication on keypad, and “OK” t t V t Y /N (T /F l ) t t th i di ti d “OK” will be displayed after successfully submitting. Set the confidential mode in software, and support two modes: True/False & Yes/No...
- Page 16 5.8‐ Voting functions：Vote 请按OK键签到 请按OK键签到 【1】【2】【3】 (Y /N /Ab t i ) t When start Vote, press 【1】【2】【3】 (Yes/No/Abstain) to vote according to the indication on keypad, and “OK” t t V t t th i di ti d “OK” will be displayed after successfully submitting. Set the confidential mode in software.
- Page 17 5.9‐ Voting functions: Numeric 请按OK键签到 请按OK键签到 When start response press alphanumeric keys to input your answer and press 【OK】 to submit according to the When start response, press alphanumeric keys to input your answer and press 【OK】 to submit according to the indication on keypad, and “OK” will be displayed after successfully submitting. Set the confidential mode in software, and support maximum 16 characters including decimal point and minus, and display the last 6 digits only.
- Page 18 5.10‐ Voting functions: Rush Answer 请按OK键签到 请按OK键签到 When start response, press 【OK】 for fastest response, and “OK” will be displayed after successfully submitting. ...
- Page 19 FCC Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
