Merck Milli-Q Reference A Plus System Quick Reference Manual

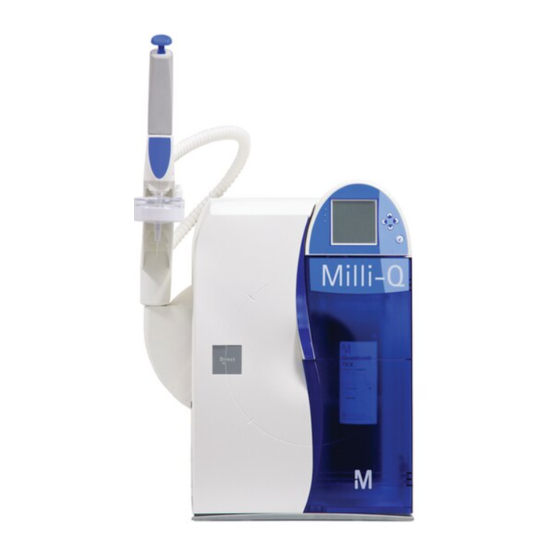

Milli-Q® Reference A+ System
Water purification system with TOC* Indicator
POD Pack adapted to specific
contaminants
Consistent delivery of Ultrapure
quality water adapted to your
needs
Dispenser on support adapted
to glassware height and shape
for automatic volume delivery
Range of accessories & options
Inside the Milli-Q® Reference System
2 3
4
1
1. Feed Water
2. Inlet Solenoid Valve
3. Feed conductivity cell (option)
4. Delivery Pump
5. Q-Gard® Pack
6. Intermediate Conductivity cell
7. UV Lamp 185/254 nm
Toc Indicator CONCEPT AND BENEFITS
The Milli-Q® Reference A+ system
benefits of the regular Milli-Q® Reference system, plus
additional analytical precision: an indication of the TOC
value of the product water.
Much in the way that resistivity measurement ensures that
ionic traces in ultrapure water are below the μg/L level,
the TOC Indicator warrants that organic contamination in
the ultrapure product water is below the 5 ppb limit of the
Milli-Q® Reference A+ system's water specification.
Q-Gard® pretreatment pack
adapted to pure feed water
6
5
8. Quantum Cartridge
9. Product resistivity cell
10. Product water Point Of Delivery
11. POD Pak
12. Recirculation Solenoid valve
13. Check valve
brings you all the
Large digital & graphic screen with
detailed procedures for full on line
support
Quantum® polishing cartridge
adapted to general application
Quick reference Guide with all
needed information in left door
13 12
7
This is especially important for the numerous applications
that are sensitive to organic contaminants—including
the very common analytical technique, HPLC (High
Performance Liquid Chromatography).
Merck Millipore's patented on-line TOC monitoring
method is well correlated with the A10® monitor's low
TOC range monitoring (1 to 10 ppb), and is able to detect
any significant organic contamination increase in the
water produced. Users can therefore be assured that
the organic contamination level of the ultrapure water
produced by their Milli-Q® Reference A+ systems is
within specifications.
NEW
TOC Indicator
9
8
10
11
* Total Oxidizable Carbon
