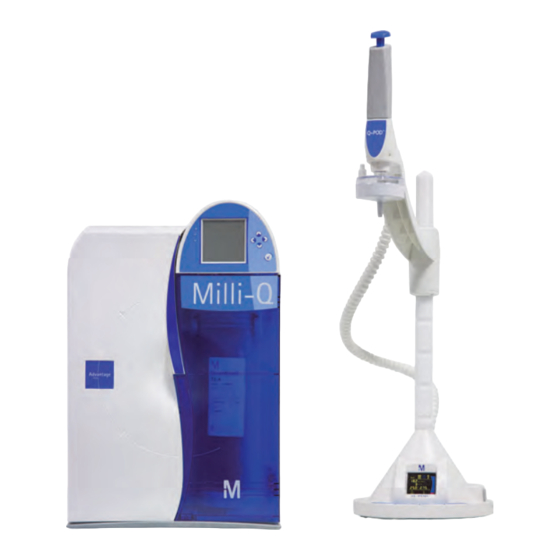

Merck Milli-Q Advantage A10 System Quick Reference Manual

FTPF08497-Milli-Q-Adv-QRG-En-V2-0_03-2013.fm Page 1 Mercredi, 6. mars 2013 3:14 15
MAIN DISPLAY
LEFT
LEDs
Green LED indicates that the system runs properly.
Alert message and symbol
Yellow LED (Alert): a message is displayed at
the bottom line and the alert symbol is
blinking on the Q-POD® display.
The system needs maintenance or sends a
warning message. Water quality is still
adequate.
On the main display, press on DOWN button
to select the message you want to
investigate. Follow the instructions.
Alarm message and symbol
Red LED (Alarm): a message screen pops up in
front of other screens and an alarm symbol is
blinking on the Q-POD® display.
The system needs immediate action and
water quality may be out of specification.
Follow the instructions shown on the main
display.
Flow Autostop alarm
The Alarm symbole is steady. Press and release the
Q-POD® plunger.
KEYPAD
UP: go to line above
DOWN: go to line below
UP
RIGHT: go to next screen
RIGHT
LEFT: go to previous screen
DOWN
TICK: validate (use when prompted by the system)
TICK

Quick Reference Guide

Milli-Q® Advantage A10® System
(MQ Feed Quality)
(Tank Level = xxx %)
MQ Prod Quality
Instant Quality
System Operation
System Alerts
System Alarms
System Measures
Q-Gard®
UV 185 nm Lamp
Quantum®
A10® Lamp
POD Pak 1
POD Pak 2
POD Pak 3
Service Engineer
Tech Service
Other
Installation
Repair
Service Contract
Contract Expires
Next Service
Next Calibration
Next Qualification
Flow Schematic
Version
System Information
Refer to the User Manual for more information.
