Grant CC26 User Manual

Introduction

The CC26, CC26 US & CC26 AUS is a refrigerated immersion cooler designed for use with the Grant OLS26 shaking
water bath.
It enables the OLS26 to operate at sub ambient temperatures down to 0°C. Use this guide together with OLS26
Operating manual which is available online at www.grantinstruments.com

Getting started

Unpack the unit
The box contains:

CC26 Cooling unit with coil attached

Retaining plate

Locking plate

2 thumbscrews

Mains cord
Retain the packaging for future storage and transport

Installation

1. Remove shaking tray and trolley from the OLS26
2. Position the CC26 cooling unit next to the OLS26
3. Ensure that the ventilation grilles are more than 100mm from any obstruction

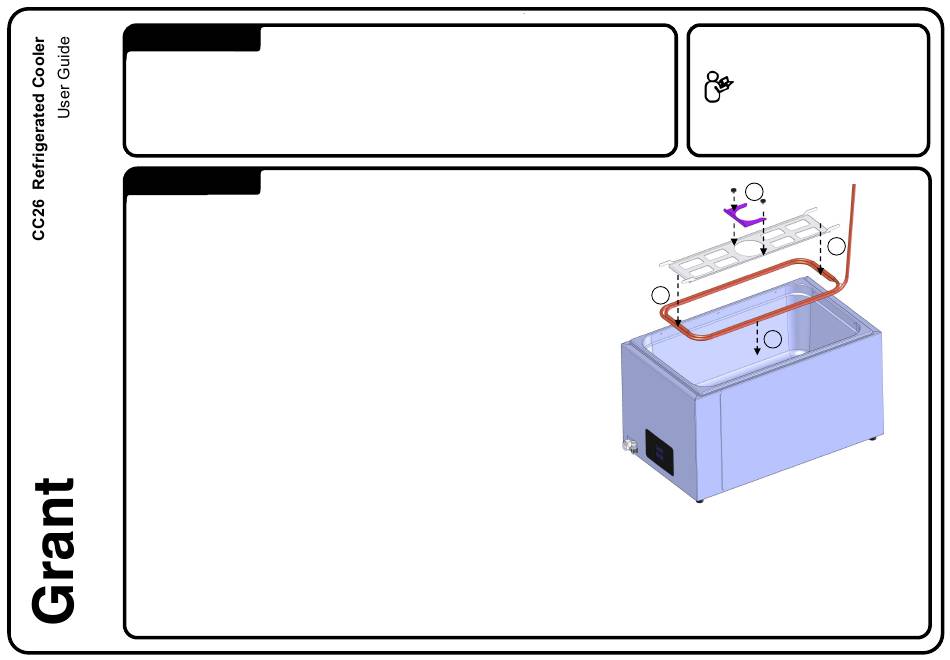

4. Place the cooling coil in the base of the bath with the feed pipe at the rear
5. Hold in place with the retaining plate
6. Slide the locking plate onto the bath cam block housing and fasten with the 2 thumbscrews
7. Refit the shaking trolley and tray

Operation

1. Fill the bath with liquid. Grant recommend a 50% water and ethylene glycol (Anti-freeze) solution. See OLS26 operating manual for fill level recommendations
2. Connect to mains power using the mains cord supplied.
3. Set the required liquid control temperature using the OLS26 front panel controls
4. Power on the unit using the switch at the rear of the unit.
5. The bath is ready for use when the liquid has reached the control temperature. Allow time for the temperature to stabilise
6. Note: The cooling coil may be immersed in liquids up to 100°C but the cooler should only be used to cool down the liquid not to operate continuously above 40°C.
