Druckdatum: 2018-09
DE
Der Inhalt dieser Produktbeilage wird regelmäßig aktualisiert und ist beim Einsatz des Produktes unbedingt zu beachten.
Sie fi nden diese Produktbeilage auch im Download-Bereich unserer Website unter www.fi or-gentz.de/downloads.
Date printed: 2018-09
GB
This manual is regularly updated and should be strictly followed.
You can also fi nd this manual in the download section on our website at www.fi or-gentz.com/downloads.

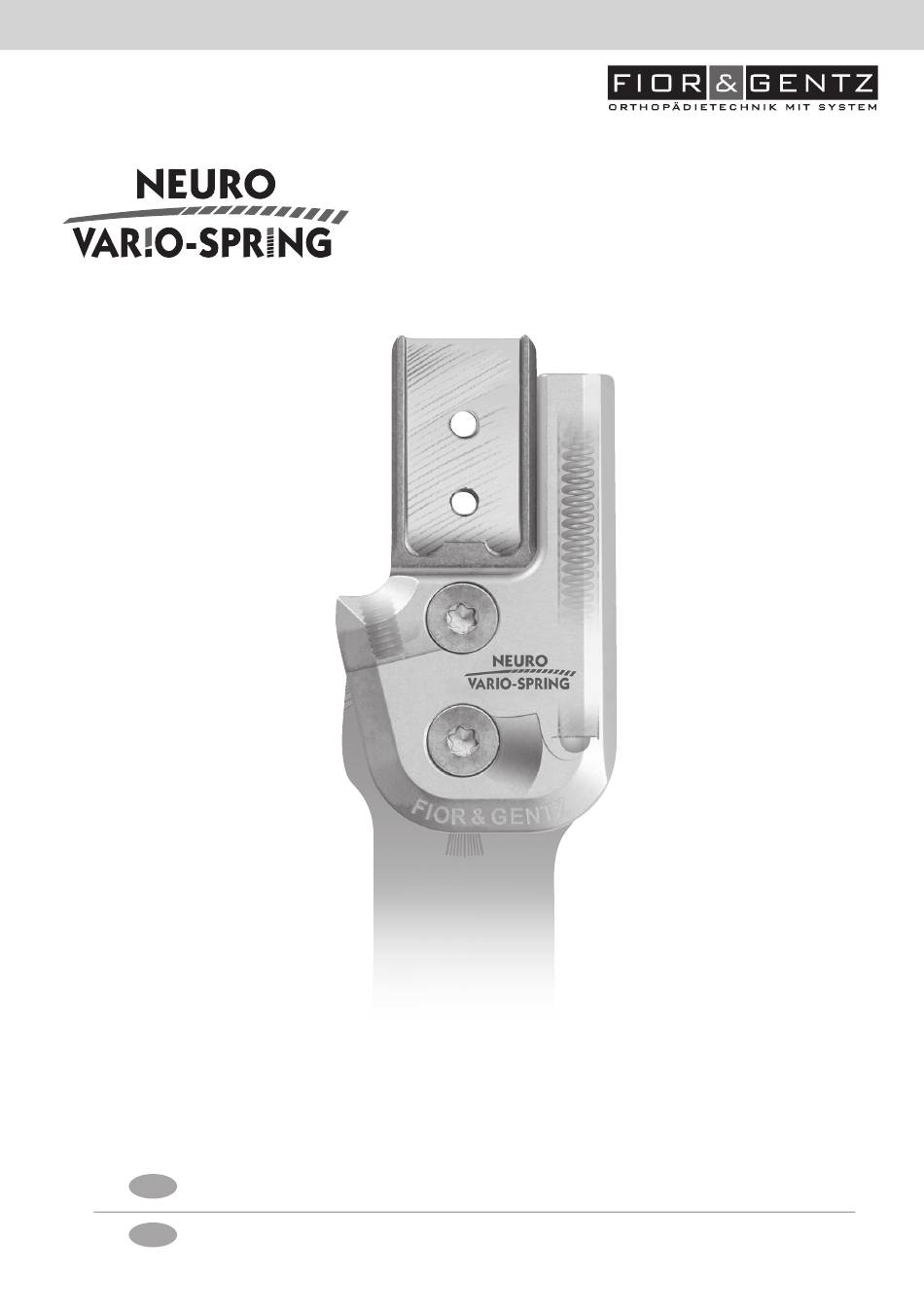

Systemknöchelgelenk
System Ankle Joint
Seite 2
Page 16
Advertisement
Table of Contents
Related Manuals for FIOR & GENTZ NEURO VARIO-SPRING
Summary of Contents for FIOR & GENTZ NEURO VARIO-SPRING
- Page 1 Systemknöchelgelenk System Ankle Joint Druckdatum: 2018-09 Der Inhalt dieser Produktbeilage wird regelmäßig aktualisiert und ist beim Einsatz des Produktes unbedingt zu beachten. Seite 2 Sie fi nden diese Produktbeilage auch im Download-Bereich unserer Website unter www.fi or-gentz.de/downloads. Date printed: 2018-09 This manual is regularly updated and should be strictly followed.
-
Page 2: Table Of Contents
2. Warranty 3. Safety Information 4. Safety Instructions 4.1 Classification of the Safety Instructions 4.2 All Instructions for a Safe Handling of the NEURO VARIO-SPRING System Ankle Joint 5. Application 6. Joint Function 7. Scope of Delivery 8. Load Capacity 9. -
Page 3: Declaration Of Conformity
1. Declaration of Conformity We declare that our medical devices as well as our accessories for medical devices are in conformity with the requirements of the Medical Devices Directive 93/42/EEC. Therefore, the FIOR & GENTZ products bear the CE marking. 2. -
Page 4: All Instructions For A Safe Handling Of The Neuro Vario-Spring System Ankle Joint
4.2 All Instructions for a Safe Handling of the NEURO VARIO-SPRING System Ankle Joint DANGER Potential Traffic Accident Due to Limited Driving Ability Advise the patient to gather information about all safety and security issues before driving a motor vehicle with orthosis. The patient should be able to drive a motor vehicle safely. - Page 5 WARNING Jeopardising the Therapy Goal Due to Lack of Free Movement Check if the system joint moves freely in order to avoid restrictions of the joint function. Use suitable sliding washers according to the information in this manual. WARNING Jeopardising the Therapy Goal Due to Incorrectly Filed System Stirrup Do not file the system stirrup too far.
-
Page 6: Application
6. Joint Function The basic function of the NEURO VARIO-SPRING system ankle joint s to provide motion control with a dorsi- flexion assist. The range of motion in dorsiflexion can be adjusted by filing the system stirrups and additionally by using the adjusting screws. -
Page 7: Tools For Assembling The System Joint
9. Tools for Assembling the System Joint System Width 14mm 16mm 20mm Tools T20 hexalobular screwdriver as well as T20 hexalobular bit screwdriver for slotted screws with the blade size 3.5 x 0.6mm torque screwdriver 1-6Nm pin punch assembly aid for cover plate 10. -
Page 8: Mounting The Functional Unit
The assembly aid for cover plate can only be used for a NEURO VARIO-SPRING system ankle joint with a system width of 16mm or 20mm. A NEURO VARIO-SPRING system ankle joint with a system width of 14mm can be mounted effortlessly without the assembly aid. -
Page 9: Checking The System Joint's Free Movement
Place the sliding washer in a way that prevents it from being damaged when mounting the cover plate. If you have nevertheless placed the sliding washer incorrectly (fig. 15-16), remove the particles and place a new sliding washer. fi g. 15 fi g. -
Page 10: Adjustment Options On The Orthosis
12. Adjustment Options on the Orthosis The NEURO VARIO-SPRING system ankle joint can be individually adjusted to the patient's pathological gait with the help of two adjustment possibilities (fig. 20). 12.1 Adjustable Alignment When producing an orthosis with the NEURO VARIO-SPRING system ankle joint, the alignment of the orthosis has to be adjusted to the patient's pathological gait using the adjusting screw (fig. 20). -
Page 11: Reading Joint Angles
You will find more information about the individual normal posture on the internet at www.fior-gentz.com. 13. Converting the NEURO VARIO-SPRING into a NEURO VARIO-CLASSIC System Ankle Joint You can convert the system joint in order to use the orthosis without dor- siflexion assist. -
Page 12: Parallel Alignment Of System Joints
14.1 Parallel Alignment of System Joints You will find the necessary tools for the parallel alignment of the system joints on the positive cast in our latest product catalogue System Joints and Articulated System Side Bars. 14.2 Mounting to the System Side Bar/System Anchor Depending on the production technique, the system side bar/system anchor must be adhered and screwed or sewed together with the system joint (fig. 28-30). -
Page 13: Replacing The Sliding Washers
Boring and Reaming Measurements [mm] Repair Repair Ø Ø System Bearing Nut Art. No. Bushing Bushing Measurement Measurement Width Outer Ø Repair Bushing Inner Ø Outer Ø for Boring for Reaming 14mm 9.6 H7 BR1009-L025 16mm 10.5 10.2 10.5 H7 BR1110-L030 20mm 10.5... -
Page 14: Spare Parts
17. Spare Parts fi g. 37 Article Number for System Width 14mm 16mm 20mm Item Description SB8559-L0620 SB9669-L0760 SB1069-L0810 bearing nut upper part, left lateral or right medial, straight, SF0412-L/ST SF0413-L/ST SF0415-L/ST steel (with adjusting screw) upper part, left medial or right lateral, straight, SF0412-R/ST SF0413-R/ST SF0415-R/ST... -
Page 15: Accessory Parts
SC1405-L11 SC1405-L12 countersunk flat head screw, hexalobular socket countersunk flat head screw, hexalobular socket SC1405-L10 SC1405-L11 SC1406-L12 (axle screw) functional unit NEURO VARIO-SPRING, left 5-11 SF4972-L/AL SF4973-L/AL SF4975-L/AL lateral or right medial functional unit NEURO VARIO-SPRING, left 5-11 SF4972-R/AL SF4973-R/AL... -
Page 16: Information For The Treatment Documentation
19. Informationen für die Versorgungsdokumentation/Information for the Treatment Documentation Bitte heften Sie diese Produktbeilage zu Ihrer Versorgungsdokumentation! Add this manual to your treatment documentation! Patientendaten/Patient´s Data Name Name Straße Address PLZ, Wohnort Postcode, City Telefon privat Home Telephone Telefon geschäftlich Telephone at Work Kostenträger Insurance... - Page 17 Beinseite Leg Side links/left rechts/right Montierte Gleitscheiben-Version Mounted Sliding Washer Version 1. GS ____________ - ________ 2. GS ____________ - ________ Der Qualitätsstandard der Firma FIOR & GENTZ ist durch eine unabhängige Zertifi zierungsgesellschaft nach den internationalen Normen ISO 9001 und ISO 13485 geprüft und bescheinigt worden. The quality standard of the FIOR &...
