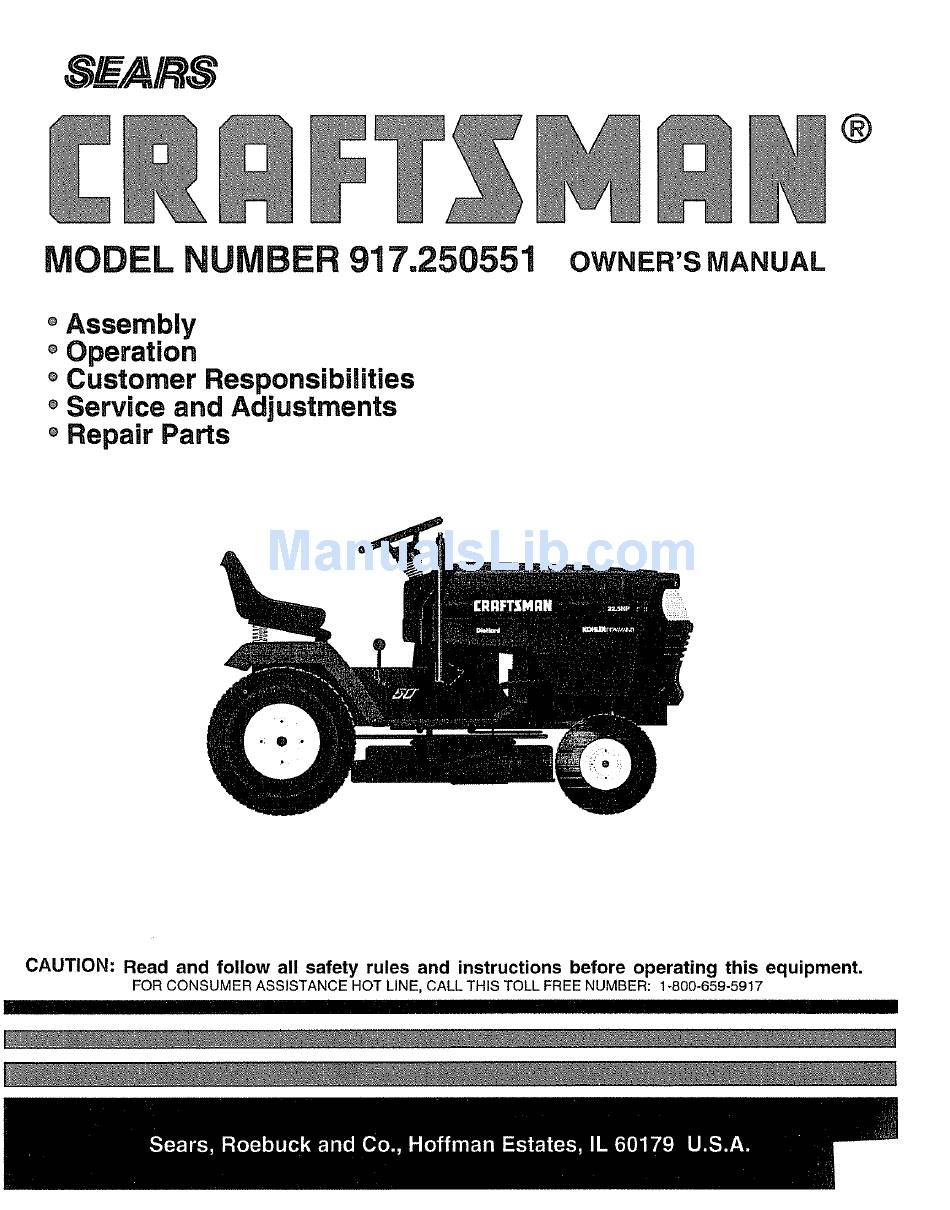

MODEL NUMBER 917.250551
OWNER'S MANUAL
o Assembly
o Operation
o Customer Responsibilities
o Service and Adjustments
o Repair Parts
CAUTION:
Read and follow
all safety
rules and instructions
before operating
this equipment.
FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

Advertisement

Table of Contents
loading

Related Manuals for Craftsman 917.250551

Summary of Contents for Craftsman 917.250551

  • Page 1 MODEL NUMBER 917.250551 o Assembly o Operation o Customer Responsibilities o Service and Adjustments o Repair Parts CAUTION: Read and follow FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917 all safety rules and instructions OWNER'S MANUAL before operating this equipment.
  • Page 2 Safe Operation IMPORTANT: THIS CUTTING MACHINE FAILURE TO OBSERVE THE FOLLOWING GENERAL OPERATION Read, understand, and fellow all instructions in the manual and on the machine before starting Only allow responsible adults, who are familiar with the instructions, to operate the machine. •...
  • Page 3 For two (2) years from the date of purchase, if this riding equipment is maintained, instructions in the owner's manual, Sears will repair or replace, free of charge, any parts found to be defective in matedal or workmanship This Warranty does not cover:...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SAFETY RULES ... PRODUCT SPECIFICATIONS CUSTOMER RESPONSIBILITIES WARRANTY TRACTOR ACCESSORIES ASSEMBLY OPERATION ... INDEX Accessories ... Adjustments: Brake ... Carburetor ... 26 Clutch Pulley ... 21 Gauge Wheels ... Mower Front-To-Back Side-To-Side ... 19 Throttle Control Cable ...23 Air Filter, Engine ...

  • Page 5: Accessories

    ACCE$SORmES ANDATTACH These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased Most Sears stores can order these items for you when you provide the model number of your tractor ENGINE...
  • Page 6 CONTENTS OF HARDWARE PACK Parts Bag contents shown full size (1) Shoulder Bolt 5/16-18 (1) Washer 17/32 x 1-3/16 x 12 Gauge Springs (double loop) ]er Springs (single loop) (2) Hex Bolts 1/4-20 x 3/4 (2) Hex Nuts 1/4-20 (2) Lock Washers (2) Washers 9/32 x 5/8 x 16 Gauge Parts packed separately...
  • Page 7 Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely the correct tools as necessary to insure proper tightness TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier.
  • Page 8 CONNECT BATTERY (See Fig. 2) & CAUTION: Do not short battery termi- nals. Before connecting move metal bracelets, bands, rings, etc. Positive terminal must be connected first to prevent sparking from acciden- tal grounding. • Lift hood to raised position •...
  • Page 9 INSTALL MOWER DRIVE (See Figs. 4 and Be sure tractor is on level surface and mower suspension arms are raised with attachment lift control. Engage park- ing brake Cut and remove tie down securing anti-sway Swing anti-sway bar to left side of mower deck •...
  • Page 10 ,/CHECKLIST BEFORE YOU OPERATE AND ENJOY TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE THEBES TPERFORMANCE AND SA TISFACTION FROM THIS QUALITY PRODUCT, PLEASE REVIEW THE FOLLOWING ¢" All assembly instructions have been completed ¢" No remaining loose parts in carton ¢"...
  • Page 11 KNOWYOURTRACTOR READ THIS OWNER'S MANUAL Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments this manual for future reference, AMMETER CHOKE SWITCH CLUTCH/BRAKE PEDAL HEIGHT ADJUSTMENT KNOB PARKING BRAKE LEVER Our tractors conform to the safety standards of the American National Standards Institute. ATTACHMENT CLUTCH SWITCH - Used to engage mower blades or other attachments mounted to your tractor LIFT LEVER- Used to raise and lower mower deck or other...
  • Page 12 The operation of any tractor can result in foreign objects thrown into the eyes, which carl result nnsevere eye damage. or performing any adjustments spectacles or standard HOW TO USE YOUR TRACTOR (See Fig. 6) TO SET PARKING BRAKE Your tractor is equipped with an operator' presence sensing switch When engine is running,...
  • Page 13 TO ADJUST GAUGE WHEELS Adjust mower to desired cutting height • Lower mower with lift control spring and clevis pin which secure each gauge wheel Lower gauge wheels to ground_ Raise gauge wheels slightly to align holes in bracket and gauge wheel bar and insert clevis pins.

  • Page 14: Carburetor

    ADD GASOLINE Fill fuel tank fresh, clean, gasoline (Use of leaded gasoline and lead oxide deposits and reduce IMPORTANT: WHEN OPERATING BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GASOLINE TO HELP INSURE GOOD STARTING WARNING: Experience indicates that alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage Acidic gas can damage the fuel...
  • Page 15 CUSTOMER FILL ,N DATE A BY REGOLAR O UC O SERV,CE M PLETB Check Brake Operation Check Tire Pressure Check for Loose Fasteners Mower Sharpen/Replace Blades Lubrication Chart Check Battery Level/Recharge Clean Battery and Terminals Check Transaxle Cooling Adjust Blade Belt(s) Tension Adjust Motion Drive Belt(s) Tension Check Engine...
  • Page 16 CUSTOMER RESlPONSIB L TIES TRACTOR Always observe safety rules when performing any rrrainte- nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See "TO ADJUST BRAKE"...
  • Page 17 CUSTOMER BATTERY Your tractor has a battery charging system which is suffi- cient for normal use However. periodic charging of the battery with an automotive charger will extend its life. Keep battery and terminals clean Keep battery bolts tight Keep small vent holes open (See "CONNECT BAT- TERY"...
  • Page 18 CUSTOM (See Fig. 15) CLEAN SCREEN Air screen must be kept free of dirt and chaff to prevent engine damage from overheating Clean with a wire brush or compressed air to remove dirt and stubborn dried gum fibers. CLEAN AIR INTAKE/COOLING To insure proper cooling, make sure the grass screen, cooling fins, and other external surfaces of the engine are kept clean at all time&...

  • Page 19: Clutch Pulley

    SERWCE AN CAUTION: BEFORE PERFORMING Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. Place attachment clutch in "DISENGAGED" ° Turn ignition key "OFF" and remove key. • Make sure the blades and all moving parts have completely stopped. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.
  • Page 20 SERVICE FRONT-TO-BACK ADJUSTMENT (See Figs. 20 and 21) - IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE THE FOLLOWING FRONT-TO-BACK NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-SIDE To obtain the best cutting results, the mower housing should be adjusted so the front is approximately 1/8"...
  • Page 21 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE (See Fig. 23) Park the tractor on level surface, Engage parking brake • Remove mowerdrive belt (See'q-O REPLACE MOWER DRIVE BELT" in this section of this manual). Remove mower (See "TO REMOVE MOWER" in this section of this manual), Remove four screws from R.H, mandrel cover and remove cover,...
  • Page 22 SERVICE AND ADJUSTMENTS TO REPLACE MOTION DRIVE BELT (See Fig. 26) Park the tractor on level surface Engage parking brake_ For ease of service there is a belt installation guide decal on bottom of left footrest It is not necessary to remove mowe r. BELT REMOVAL - Engage parking brake (creates slack in belt)_ Remove mower drive belt from electric clutch pulley...
  • Page 23 SERVICE AND ADJUSTMENTS TO REMOVE WHEEL FOR REPAIRS FRONT WHEEL (See Fig 29) - Block up axle securely. Remove axle cover, retaining ring and washers to allow wheel removal • Repair tire and reassemble. Replace washers and snap retaining ring securely in axle groove •...
  • Page 24 SERVICE AND ADJUSTMENTS TO ADJUST A'F]'ACHMENT (See Fig. 31) While holding spring bushing with wrench, loosen jam Turn adjustment bolt clockwise to extend spring and reduce lift effort for heavier attachments. Turn adjustment bolt counterclockwise tachments Retighten jam nut against spring IMPORTANT: DO NOT ADJUST...
  • Page 25 SERVUCE ENGINE ADJUST THROTTLE CONTROL (See Fig. 33) The throttle control has been preset at the factory and adjustment should not be necessary. Check adjustment as described below before loosening eable. If adjustment is necessary, proceed as follows: • With engine not running, move throttle control lever to fast (,@) position.
  • Page 26 SERVICE AND ADJUSTMENTS TO ADJUST CARBURETOR Tile carburetor has been present at the factory and adjust- ment should not be necessary However, minor adjustment may be required to compensate for differences temperature, altitude or load If the carburetor does need adjustment, proceed as follows: In general, turning the adjusting needles in (clockwise) decreases the supply of fuel to the engine giving a leaner...
  • Page 27 Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. CAUTION: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.
  • Page 28 TROUBLESHOOTING PROBLEM CAUSE Will not start Out of fuel Engine not "CHOKED" properly Engine flooded Bad spark plug Dirty air filter Dirty fuel filter Water in fuel Loose or damaged wiring Carburetor out of adjustment Engine valves out of adjustment Hard to start Didy air filter Bad spark plug...
  • Page 29 PROBLEM CAUSE Engine continues to run Faulty operator-safety when operator leaves seat with attachment clutch engaged Poorcut-uneven Worn, bent or loose blade Mower deck notlevef Buildup of grass, leaves, and trash under mower Bent blade mandrel Clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels Mower blades will not Obstruction...
  • Page 30 SWITCH (OFF) NON-REMOVABLE REMOVABLE CONNECTIONS CONNECTIONS WIRING INSULATED CLIPS NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR SERVICING OF UNIT, THEY SHOULD BE REPLACED TO PROPERLY SECURE YOUR WIRING 917.250551 BLACK STARTER BLACK SOLENOID BLACK ELECTRIC CLUTCH BLACK BLACK UNIT SPARK...
  • Page 31 REPAUR PARTS TRACTOR DECALS KEY PART NO. NO. DESCRIPTION 138955 Decal, Operating Instruction 146708 Decal, Grill 146705 Decal, Hood, Craftsman, RH 146706 Decal, Hood, Craftsman, LH 145003 Decal, Battery DNGR/PSN SRS 133644 Decal, Maintenance 138048 Decal, Side Panel 142241 Decal, Side Panel 146709 Decal, Fender, Craftsman 137537...
  • Page 32 REPAIR PARTS TRACTOR - - MODEL NUMBER 917.250551 ELECTRICAL...
  • Page 33 122822X Ammeter 11151006 Washer-Lock Internal Tooth 5/8 146283 Switch, PT.O 140405 Ring Retainer PTO 71031068 Screw, Hex Washer Head #10-32xl/2 73951000 Nut, Keps #10-32 All component dimensions given in U S. inches 1 inch = 25.4 mm 917.250551 Head, Thread...
  • Page 34 REPAIR PARTS TRACTOR CHASSIS AND ENCLOSURES -- MODEL NUMBER 917.250551...
  • Page 35 Bolt, Fin Hex 5/16-18 x 3/4 121642X558 Fender, Pnt. 19091216 Washer 9/32 x 3/4 x 16 Ga_ 136961 Bracket, Axle Front 142132 Bracket, Support Axle/Engine - - MODEL NUMBER 917.250551 PART 17580408 72140608 136939 136940 138460 17490608 1/4-20xl/2 142133 142134...
  • Page 36 BEPAIB PAR'TSBAcTOB" "_O0_L """'- _...
  • Page 37 137524 10040700 74760720 137649 67609 140296 19131312 5142H 136327 NOTE: All component 1inch=254mm 917.250551 DESCRIPTION Nyliner Screw, Fin. #10-24 x 1 Actuator, Interlock Switch Locknut #10-24 Cover, Pedal Bolt, Hex 1/4_20 x 3/4 Bracket, Interlock Locknut w/Insert 1/4-20 Retainer, Spring...
  • Page 38 REPAIR PARTS TRACTOR - - MODEL NUMBER 917.250551 STEERING ASSEMBLY !11J...
  • Page 39 REPARR PARTS TRACTOR STEERING ASSEMBLY NOTE: All component dimensions given in US - - MODEL NUMBER 917.250551 PART DESCRIPTION 121472X Wheel, Steering 137094 Axle Asm. Front 6855M Fitting, Grease 136960 Spindle Asm, LH 136959 Spindle Asm,, RH 6266H Bearing, Race Thrust Harden...
  • Page 40 _IVQ/NE _i_:s---- s...
  • Page 41 19131414 Washer Flat 13/32 x 7/8 x t4 Ga, 13090336 Nipple Pipe 3/8NPT X 4-1/2 13090308 Nipple Pipe 3/8 x 1 73510400 Nut Keps Hex 1/4-20 Unc All component dimensions given in U_S. inches 1 inch = 2&4 mm 917.250551...
  • Page 42 17490508 Screw, Thdrol 19131614 Washer 13/32 X 1 X 14 Ga 140552 Pan, Seat 121246X Bracket, Mounting Switch 121248X Bushing, Snap - - MODEL NUMBER 917.250551 PART 72050411 121249X 123740X 5/16-18 x _62 123976X 19171912 3/8-16 Uric 120068X 124238X 5/16-18 X 1/2...
  • Page 43 19131316 Washer 13/32 x 13/16 x 16 Ga 5328J Bolt, Adjust Spring Assist 74760616 Bolt, Fin Hex 3/8-16 x 1 127218 Link, Front 4939M Retainer, Spring - MODEL NUMBER 917.250551 PART 73350800 130171 73800800 12000037 19151216 110810X 110807X 19131016 137150...
  • Page 44 REPAIR PARTS TRACTOR MOWER DECK - - MODEL NUMBER 917.250551 63 _...

  • Page 45: Gauge Wheels

    REPAaR PARTS TRACTOR MOWER DECK PART DESCRIPTION 136457 Mower Housing 73680500 Nut, Crownlock 72110506 Bolt, Carriage 5/16-I8 x 3/4 7631J Runner, Mower LH 138457 Bracket Asm, Sway Bar 4939M Retainer, Spring 130832 Arm Suspension, Rear 850857 Bolt 3/8-24 x 1.25 Gr. 8 Patched 10030600 Washer, Lock Hvy 3/8 Unplated 140296...
  • Page 46 REPAIR PARTS TRACTOR - - MODEL NUMBER 917.250551 TRANSAXLE 41 /'_45...
  • Page 47 Bolt, Hex 5/16-18 UNC x 1-1/4 6271H Oil Seal 13060200 Pipe Plug 1/4-18 N PT 4895H Needle Bearing 4222R Needle Bearing 1529R Needle Bearing - - MODEL NUMBER 917.250551 KEY PART NO. NO. 8119M 4220R 4209R 4213R 4442R 4195R 4214R 4194R...
  • Page 48 14 151517 45 44 _L.43 41 40 _::x"'3534/ - - MODEL NUMBER CV22 - PS67515 CRANKCASE • 24 -- 1312_11_: _ ! -26 _-29 8--31 --33 917.250551 26-- _Q---27 23,,_ _ _-' 20 --1_ _- 4 7 f0 © © _--8...
  • Page 49 REPAIR PARTS TRACTOR KOHLER ENGINE - MODEL NUMBER CYLINDER HEAD/VALVE/BREATHER KEY PART NO. NO. DESCRIPTION 24 318 11 Head Assembly, #1 Cylinder 24 755 76 Kit, Valve Cover, Breather (Includes Key #3, 34 thru 36) 25 313 02 Grommet, Rubber 24 755 20 Kit, Breather (Includes Key #3 &...
  • Page 50 REPAIR PARTS TRACTOR - - MODEL NUMBER 917.250551 KOHLER ENGINE - MODEL NUMBER CV22 - PS67515 BLOWER HOUSING AND BAFFLES I IGNITION / ELECTRICAL I _2 O' _1._5 AIR INTAKE...
  • Page 51 Lead, Green (3", 18 Gauge, Insulated Grip Barrel Eyelets) 24 113 18 Decal, Grass Screen 24 063 27 Baffle, Heat Shield -- MODEL NUMBER 917.250551 CV22 - PS67515 BLOWER HOUSING & BAFFLES KEY PART NO. NO. DESCRIPTION 24 027 20...
  • Page 52 REPAUR PARTS TRACTOR KOHLER ENGINE - MODEL NUMBER STARTING SYSTEM I - - MODEL NUMBER 917.250551 CV22 - PS67515 23-'_'17 1_7 _j--16...
  • Page 53 24 079 05 SM-0545020 41 468 03 M-0403025 24 O89 18 NOTE: All component dimensions given in U.S inches 1 inch = 254 mm 917.250551 DESCRIPTION Oil Pan Assembly Oil Pan Plug, Hex, Countersunk, 3/8 N.P.T.F. Nipple, Oil Filter Filter, Oil...
  • Page 54 REPAnR PARTS TRACTOR - - MODEL NUMBER 917.250551 KOHLER ENGINE - MODEL NUMBER CV22 - PS67515 CRANKSHAFT ,,,.. FUEL SYSTEM _/14 16 17 o_36 °--:_ f 3_...
  • Page 55 Kit, Carburetor Repair 24 755 72 Kit, High Altitude (1500-3000 Meters) 24 755 73 Kit, High Altitude (Over 3000 Meters) - - MODEL NUMBER 917.250551 CV22 - PS67515 CRANKSHAFT KEY PART NO. NO. DESCRIPTION 24 014 72 Crankshaft 52 139 09...
  • Page 56 SERVICE NOTES...
  • Page 57 SERVICE NOTES...
  • Page 58 RVICE NOTES...
  • Page 59 >...

  • Page 60: Replacement

    The model number for your engine will be found on the blower housing of the engine. All parts listed herein may be ordered from any Sears, Roebuck and Co. Service Center/Department tail Stores. WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: •...
