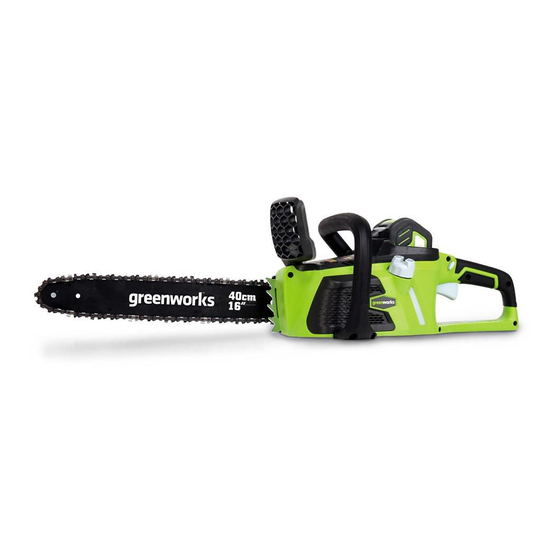

40V BRUSHLESS CHAINSAW
2008702(2000800)
Battery (Sold Separately)
(40V, 4Ah Model # 29662)
Charger (Sold Separately)
(40V Model: 29692 )
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2008702 and is the answer not in the manual?

Questions and answers

Related Manuals for GreenWorks 2008702

Summary of Contents for GreenWorks 2008702

  • Page 1 40V BRUSHLESS CHAINSAW 2008702(2000800) Battery (Sold Separately) (40V, 4Ah Model # 29662) Charger (Sold Separately) (40V Model: 29692 ) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product Specifications ......................2 Safety Information ....................... 3 Symbols ..........................8 Know Your Chainsaw ......................10 Assembly ...........................11 Operation ........................... 15 Maintenance ........................25 Environmentally Safe Battery Disposal ................34 Troubleshooting ........................ 35 Warranty ..........................37 Exploded View ........................

  • Page 3: Safety Information

    SAFETY INFORMATION GENERAL POWER TOOL SAFETY WARNINGS W A R N I N G Read and understand all instructions before using this product. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. Save all warnings and instructions for future reference.
  • Page 4 SAFETY INFORMATION key left attached to a rotating part of the power tool may result in personal injury. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. •...
  • Page 5 SAFETY INFORMATION parts. This will ensure that the safety of the power tool is maintained. CHAINSAW SAFETY WARNINGS • Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the chainsaw, make sure the saw chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain.
  • Page 6 SAFETY INFORMATION W A R N I N G (PROPOSITION 65) This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
  • Page 7 SAFETY INFORMATION W A R N I N G Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide bar or when the wood closes in and pinches the saw chain in the cut. Contact at the upper portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for an instant.

  • Page 8: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOLS DESIGNATION EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
  • Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 10: Know Your Chainsaw

    KNOW YOUR CHAIN SAW KNOW YOUR CHAIN SAW The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

  • Page 11: Assembly

    • If any parts are damaged or missing, please call 1-888-909-6757 for assistance. PACKING LIST PART NAME FIGURE Chainsaw Scabbard 40V BRUSHLESS CHAINSAW 2008702 Operator's Manual Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
  • Page 12 ASSEMBLY W A R N I N G If any parts are damaged or missing, do not operate this product until the parts are replaced. Using a product with damaged or missing parts could result in serious personal injury. W A R N I N G Do not attempt to modify this product or create accessories not recommended for use with this product.
  • Page 13 ASSEMBLY NOTE: Chainsaw comes from the factory with no bar and chain oil added. The level should also be checked after every 20 minutes of use and refilled as needed. NOTE: • Do not use dirty, used or otherwise contaminated oils. Damage may occur to the bar or chain.
  • Page 14 ASSEMBLY TO REMOVE THE BATTERY: 1. Press the battery release button on the battery. 2. Grasp the chainsaw firmly and pull the battery out of the handle. I M P O R T A N T The battery may not be charged when it is purchased. Before using the chain saw for the first time, place the battery in the battery charger and charge it fully.

  • Page 15: Operation

    OPERATION STARTING AND STOPPING THE CHAINSAW A. To start the chainsaw: • Make sure chain tension is at desired setting. Refer to adjusting the chain tension in the Care and Maintenance section of this manual. • Make sure the chain cover lock knob is tight to the chain cover. •...
  • Page 16 OPERATION OPERATING THE CHAIN BRAKE Check the operating condition of the chain brake prior to each use. • Engage the chain brake by rotating your left wrist towards the guard, allowing the back of your hand to engage the brake while the chain is rotating. Be sure to maintain both hands on the saw handles at all times.
  • Page 17 OPERATION PREPARING FOR CUTTING Proper grip on handles See General Safety Rules for appropriate safety equipment. • Wear non-slip gloves for maximum grip and protection. • Hold the saw firmly with both hands. Always keep your left hand on the front handle and your right hand on the rear handle so that your body is to the left of the chain line.
  • Page 18 OPERATION PROPER CUTTING STANCE • Balance your weight with both feet on solid ground. • Keep left arm with elbow locked in a “straight arm” position to withstand any kickback force • Keep your body to the left of the chain line. •...
  • Page 19 OPERATION REMOVING BUTTRESS ROOTS A buttress root is a large root extending from the trunk of the tree above the ground. Remove large buttress roots prior to felling. Make the horizontal cut into the buttress first, followed by the vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling procedure as stated in Proper Procedure For Tree Felling after you have removed the large buttress roots.
  • Page 20 OPERATION • Felling Backcut. As the felling cut gets close to the hinge, the tree should begin to fall. If there is any chance the tree may not fall in the desired direction or it may rock back and bind the saw chain, stop cutting before the felling cut is complete and use wedges of wood, plastic or aluminum to open the cut and drop the tree along its desired line of fall.
  • Page 21 OPERATION BUCKING Bucking is the term used for cutting a fallen tree to the desired log length. • Always make sure your footing is secure and your weight is distributed evenly on both feet • Cut only one log at a time. •...
  • Page 22 OPERATION BUCKING LOGS UNDER STRESS When the log is supported on one end, cut 1/3 the diameter from the underside. Then make the finished cut by overbucking to meet the first cut. When the log is supported on both ends, cut 1/3 of the diameter from the top overback.
  • Page 23 OPERATION LIMBING Limbing is removing branches from a fallen tree. • Work slowly, keeping both hands on the chain saw with a firm grip. Always make sure your footing is secure and your weight is distributed evenly on both feet. •...
  • Page 24 OPERATION When bucking on a slope always stand on the uphill side of the log. when cutting through to maintain complete control release the cutting pressure near the end of the cut without relaxing your grip on the chainsaw handle. Don’t let the chain contact the ground. After completing the cut wait for the saw chain to stop before you move the chainsaw.

  • Page 25: Maintenance

    MAINTENANCE GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, lubricant, grease, etc., firmly to maintain control. •...
  • Page 26 MAINTENANCE REPLACING THE GUIDE BAR AND CHAIN • Remove the battery from the chain saw. • Rotate the chain cover lock bolt counterclockwise and remove knob and sleeve . • Remove the chain cover. Chain Cover Lock Bolt • Remove the bar and chain from the mounting Chain Tension Knob surface.
  • Page 27 MAINTENANCE NOTE: When placing the bar on the bar studs, ensure that the adjusting pin is in the chain tension pin hole. • Replace the chain cover. • Remove all slack from the chain by turning the groove chain tensioning bolt clockwise with a hexagon ring spanner until the chain seats snugly against the bar with the drive links in the bar groove.
  • Page 28 MAINTENANCE QUICK REFERENCE OF CHAIN & BAR ASSEMBLY 1. To remove the side cover, loosen 2. Then loosen the chain tension knob 2 3. Now totally remove the locking knob the locking knob one full turn or 3 turns. and remove the side cover. counterclockwise.
  • Page 29 MAINTENANCE ADJUSTING THE CHAIN TENSION W A R N I N G Never touch or adjust the chain while the motor is running. The chain saw is very sharp. Always wear protective gloves when performing maintenance on the chain. • Stop the motor and remove the battery from the chain saw before setting the chain tension.
  • Page 30 MAINTENANCE CHAIN MAINTENANCE Use only a low-kickback chain on this saw. This fast-cutting chain provides kickback reduction when properly maintained. For smooth and fast cutting, maintain the chain properly. The chain requires sharpening when the wood chips are small and powdery, the chain must be forced through the wood during cutting, or the chain cuts to one side.
  • Page 31 MAINTENANCE SHARPENING THE CUTTERS • Be careful to file all cutters to the specified angles and to the same length, as fast cutting can be obtained only when all cutters are uniform. • Tension the chain prior to sharpening. • Use a 5/32 in.
  • Page 32 MAINTENANCE TOP PLATE FILING ANGLE • CORRECT 30° – file holders are marked with guide marks to align file properly to produce correct top plate angle. • LESS THAN 30° – for cross cutting. • MORE THAN 30° – feathered edge dulls quickly. Top Place Filling Angle Side Plate Filling Angle Correct...
  • Page 33 MAINTENANCE SIDE PLATE ANGLE • Maintain the depth gauge at a clearance of 1/32 in. (0.6 mm). Use a depth gauge tool for checking the depth gauge clearances. • Every time the chain is filed, check the depth gauge clearance. •...

  • Page 34: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this chainsaw's battery pack contain the following toxic and corrosive mate- rial: LITHIUM-ION. W A R N I N G Toxic materials must be disposed of in a specific manner in order to prevent contamination of the environment.

  • Page 35: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Bar and saw chain Check saw chain tension for Tension saw chain. running hot and overtightened condition. smoking. No oil in the oil tank. Refill oil into the oil tank. The discharge port is blocked by Refer to the manual to remove the bar and debris.
  • Page 36 TROUBLESHOOTING Motor running, but Motor stops after about 3 Recharge the battery. cutting abnormal. seconds. If the unit cuts off and beeps Release the trigger and restart the during a cut, it went into chainsaw. Let the chainsaw do the work protection mode.

  • Page 37: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...

  • Page 38: Exploded View

    EXPLODED VIEW...

  • Page 39: Part List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 34103590 Auxiliary Handle 32211590 Screw 31100590-1 34148590 Scabbard 31101590 Chain 34102590 Side Cover 34129583-2 Lock Knob 32206590A Screw 34108583A Chain Tension Knob 32209590 Clip 33902102C Sproket 311301065 Rear Handle 341151607-6 Oil Cap Assembly 32206590A Screw 21102975BK...
  • Page 40 Greenworks Tools P.O. Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (07-10-17) Printed in China on 100% Recycled Paper...
