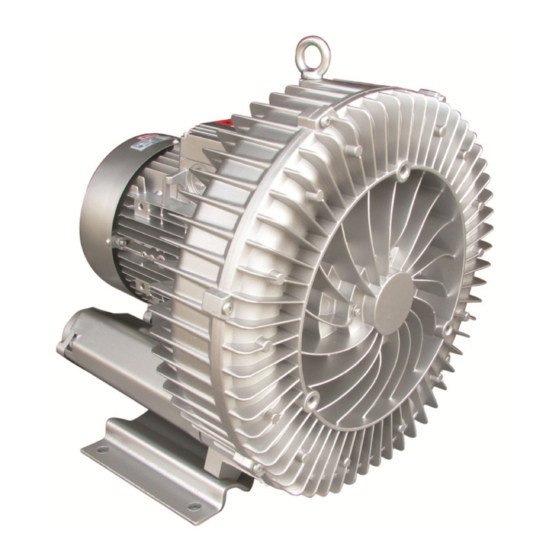

- Page 1 Operating and Maintenance Instructions 3BA Regenerative Blowers...
-
Page 3: Table Of Contents
INSTALLATION & OPERATING MANUAL 3BA REGENERATIVE BLOWERS Table of Contents Section: Page Number: 1. Safety 1.1 General Safety Precautions 1.2 Clothing and Protective Gear 1.3 Electrical Safety 1.4 Vacuum and Gauge Pressure Safety 1.5 Installation/Start-up 1.6 Maintenance Procedures 1.7 Hot Surfaces 1.8 Hearing Protection 1.9 Safety Guidelines for Transport of the unit 2. -
Page 4: Safety
1. Safety 1.1 General Safety Precautions WARNING: Improper operation of 3BA units can result in serious or even fatal injuries. Please make sure all personnel have read and understood this manual before operating the unit. All personnel should familiarize themselves with the units’ specifications and be careful not to exceed the unit’s capacity. -
Page 5: Vacuum And Gauge Pressure Safety
1.4 Vacuum and Gauge Pressure Safety In order to avoid dangerous situations associated with vacuum and gauge pressure, please utilize secure mounting elements, connections, lines, fittings, and containers. Pipes/hoses must be securely connected to the inlet and discharge connections. The inlet and discharge connections and the pipes/hoses connected to them must not be closed, clogged, or soiled. -
Page 6: Maintenance Procedures
If the unit is installed or stored in an environment with a temperature of over 104° F (40° C) be aware that the winding may be damaged and the grease might need to be changed more often. 1.6 Maintenance Procedures Before beginning work on the pump-motor unit, please take the following precautions: •... -
Page 7: Safety Guidelines For Transport Of The Unit
Please consult the table on page 27 to find the weight of the unit being handled. Do not stand or walk under suspended loads. If a 3BA unit has come in contact with any dangerous substances, it must be decontaminated before being sent to Airtech for repair evaluation. -
Page 8: Technical Data
The seal between the bearing and the motor is not gas tight in most models, therefore these blowers are not recommended for handling of toxic or explosive gases. (Contact Airtech Vacuum, Inc. for additional options if explosive or toxic gases will be handled.) - Page 9 CAUTION! Dangerous (flammable or explosive) or aggressive (corrosive) gases should not be handled by the standard blower. Handling of flammable or aggressive gases and vapors may be possible by using a specially configured or modified blower. Contact factory for additional information.
- Page 10 Table 1. Three-phase, Single Stage, 50 Hertz Rated Voltage Motor Open Flow Maximum Sound Power Current Capacity Pressure Pressure Model HP/kW (Amps) CFM/m3/hr (mbar) Level (dBA) 3BA1300-7AT06 .33/.25 200-240/345-415 2.1/1.2 48/82 -100/100 2BA1300-7AT16 .54/.4 200-240/345-415 2.6/1.5 48/82 -120/130 3BA1400-7AT06 .94/.7 200-240/345-415 3.8/2.2 84/142...
- Page 11 220-250/415-460 5.5/3.2 60/102 -340/370 When operating at altitudes above 3280 feet (1000 m) above mean sea level, contact Airtech Inc. CAUTION! Operation of the unit outside the recommended range of pressures and ambient conditions will result in shorted operating life.
- Page 12 Table 3. 3 Phase, Two/Three Stage, 50 Hertz Motor Open Flow Maximum Sound Rated Power Model Voltage Current Capacity Pressure Pressure HP/kW (Amps) CFM/m3/hr (mbar) Level (dBA) 3BA1310-7AT26 .94/.7 200-240/345-415 3.8/2.2 48/81.6 -120/120 3BA1410-7AT36 2.15/1.6 200-240/345-415 7.5/4.3 84/142.8 -200/190 3BA1410-7AT46 2.96/2.2 200-240/345-415 9.7/5.6...
- Page 13 Table 4. 3 Phase, Two/Three Stage, 60 Hertz Rated Motor Open Flow Maximum Sound Model Power Voltage Current Capacity Pressure Pressure HP/kW (Amps) CFM/m3/hr (mbar) Level (dBA) 3BA1310-7AT26 1.11/.83 220-250/415-460 3.75/2.15 60/102 -130/130 3BA1410-7AT36 2.7/2.05 220-250/415-460 7.5/4.4 105/179 -220/210 3BA1410-7AT46 3.4/2.55 220-250/415-460 9.0/5.3 105/179...
- Page 14 Table 5. Single Phase, 50 Hertz Rated Voltage Motor Open Flow Maximum Sound Power Current Capacity Pressure Pressure Model HP/kW (Amps) CFM/m3/hr (mbar) Level (dBA) 3BA1100-7AS05 0.27/0.2 1.45 24/40 -60/70 3BA1200-7AS05 0.33/0.25 115/230 3.5/1.7 35/60 -100/100 3BA1300-7AS15 0.5/0.37 115/230 5.4/2.7 48/82 -110/110 3BA1330-7AS15...
- Page 15 Operation of any blower is possible at 87 Hertz without modification in most cases. When using a VFD to operate the blower at this frequency, refer to the nameplate for limits on vacuum and pressure, current draw and motor performance. If your specific model number is not listed above, please consult the nameplate on the unit for electrical data.
- Page 16 Expected temperature rise of the handled gas at maximum allowable pressure differential and when operating at sea level is indicated below: Table 7: Single Stage – Approximate Temperature Rise Maximum Rise at 50 Hz speed Maximum Rise at 60 Hz speed Blower Model Degrees F Degrees C...
- Page 17 Table 8: Two/Three Stage – Approximate Temperature Rise Maximum Rise Maximum Rise at 50 Hz speed at 60 Hz speed Blower Model Degrees F Degrees C Degrees F Degrees C 3BA1310-7..2. 3BA1410-7..3. 3BA1410-7..4. 3BA1510-7..4. 3BA1510-7..5. 3BA1610-7..1. 3BA1610-7..2. 3BA1610-7..3. 3BA1610-7..4. 3BA1610-7..5. 3BA1610-7..7.
- Page 18 Table 9: Tightening Torque Specifications For non-electrical connections Thread Ft-lbs maximum torque Nm maximum torque 2.43 3.25 6.49 19.47 26.4 34.10 46.2 56.76 For electrical connections Thread Ft-lbs torque Nm torque 0.6 to 0.9 0.8 to 1.2 1.3 to 1.8 1.3 to 1.8 For metal threaded glands/unions Thread...
- Page 19 Tables 1 to 4. If the relief valves were not specified in the ordering process, please contact Airtech for details, price and availability of the needed valves before commissioning the unit. Failure to use the proper relief valve may result in failure of the blower due to operation outside the applicable limits;...
-
Page 20: Installation
3. Installation As illustrated in Figure 1, the Airtech 3BA blower can be installed in any physical configuration. CAUTION! Regenerative blowers can have surface temperatures in excess of 320° F. To avoid burns or other physical injury, take care to avoid contact with the surfaces of the blower during and immediately after operation. -
Page 21: Installation Procedure
CAUTION! Design your piping system to avoid unnecessary pressure loss, which may significantly affect the operation of any regenerative blower. Contact your Airtech representative for assistance in designing and configuring an appropriate piping system for your application. For alternation between vacuum and pressure in any application, changeover valves are available. - Page 22 3. A magnetic motor starter should always be used to connect the motor to the power supply. It is advisable to use thermal overload motor starters to provide maximum protection for the motor and wiring. All cabling used on starters should be secured with good quality cable clamps.
-
Page 23: Start-Up
4. Start-up CAUTION! Do not start the blower motor more than 10 times in one hour. If multiple and frequent start-ups are required by your application, install a minimum run timer in the motor control circuit to avoid decreased motor life and possible fire due to over-starting of the motor. -
Page 24: Maintenance And Servicing
5. Maintenance and Servicing WARNING! Be sure the power supply is disconnected and locked out before attempting to do any maintenance on the unit. It is critical that the unit be locked out from starting during maintenance as severe injury or death could result from exposure to high voltage or rotating parts. -
Page 25: Troubleshooting Chart
Bearings are grease-packed for life. 5.1 Troubleshooting Chart Fault Cause Remedy Responsible Party Motor does Two or more Check fuses, terminals, etc.. for Electrician not start, no power legs source of interruption and noise. interrupted correct. Motor does One power Check fuses, terminals, etc.. - Page 26 Inlet piping too Increase pipe diameter to Operator long or too reduce pressure loss in inlet small. piping. Contact Airtech for assistance in determining correct pipe size. Leak at Check for leaks and repair if Operator connection to necessary.
-
Page 27: Lifting
WARNING! Before attempting an on-site repair, ensure that a qualified electrician has disconnected the motor from the power supply so that accidental starting of the motor is impossible. After repairing the unit, be sure to follow the instructions noted in this manual in the Installation section (page 20). -
Page 28: Storage
5.4 Disposal Dispose in accordance with all local health and safety regulations. Spare parts list are available from your local Airtech service center. Please contact your local Airtech representative for assistance. For additional assistance, please contact: Airtech, Inc.,... -
Page 33: 3Ba7 Two-Stage
Description... -
Page 34: Warranty Statement
Airtech, Inc. (“Company”) Warranty Statement Company warrants that on the date of shipment to Purchaser the goods will be of the kind and quality described herein, merchantable, and free of all defects in workmanship and materials. If within one year from the date of initial operation, but not more than eighteen months... - Page 36 Novato, CA 94949 Tel: 1 888 222 9940 Tel: 770 690 0700 Tel: 415 382 9000 Fax: 201 569 1696 Fax: 770 690 0709 Fax: 415 382 9700 airtech@airtechusa.com airtechsouth@airtechusa.com airtechwest@airtechusa.com CHINA EUROPE EUROPE 2nd Building, 10 / 9 Sainsbury Road...
