Related Manuals for Dell Inspiron 3181 2-in-1
Summary of Contents for Dell Inspiron 3181 2-in-1

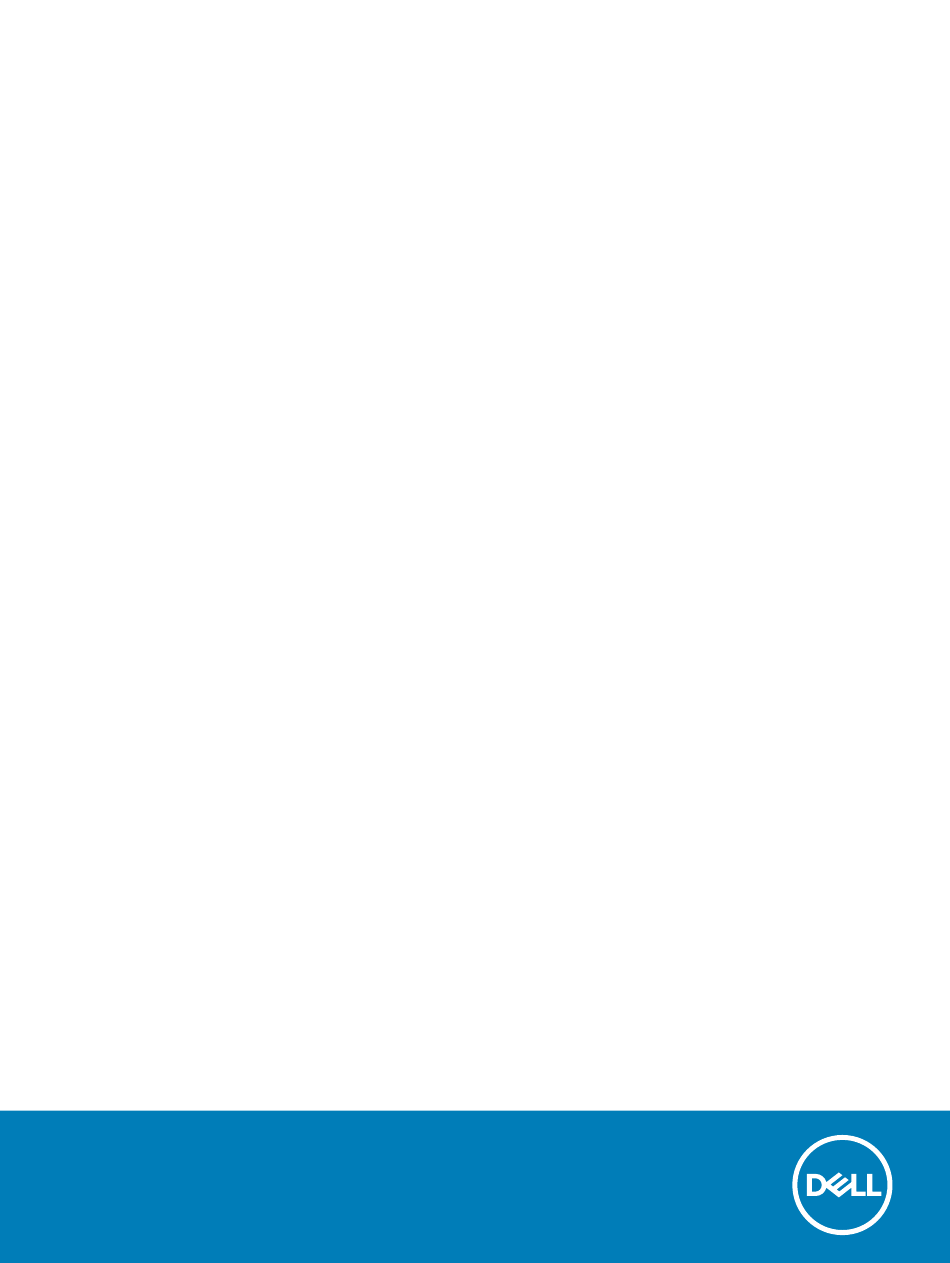

- Page 1 Inspiron 3181 2-in-1 Setup and Specifications Regulatory Model: P26T Regulatory Type: P26T001...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Step 2: Create the recovery USB flash drive or SD card..................6 Reinstall the Chrome Operating System........................7 "Chrome OS verification is turned off" Message..................... 7 Troubleshooting Tips..............................8 3 Views of Inspiron 3181 2-in-1.......................... 9 Front....................................9 Right....................................9 Left..................................... 10 Base....................................10... - Page 4 Display....................................22 Video....................................23 Computer environment..............................23 5 Contacting Dell............................24 Contents...
-
Page 5: Set Up Your Chromebook
Set up your Chromebook Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer. On the Welcome screen, select your language, keyboard layout, and choose which network to which the device will be connected. If the network is secure, you will need to enter the proper password. -
Page 6: Chromebook Recovery
Chromebook recovery This page contains information about recovering Dell Chromebook. Recovering the Chromebook Install a new version of the Chrome operating system on your Chromebook by going through the recovery process. You may want to go through this process if you are having problems updating your Chromebook or if it stops working. -
Page 7: Reinstall The Chrome Operating System
Operating System Instructions Run the tool and follow the instructions that appear on your screen. After you recover your Chromebook, you must format your USB flash drive or SD card using the Recovery Tool. If you do not format your USB flash drive or SD card, you will not be able to use all the storage space on your external device. -
Page 8: Troubleshooting Tips
Troubleshooting Tips Table 2. Troubleshooting tips Question Solution I am unable to recover my Chromebook To help ensure that you are running the latest version of Chrome OS once you recover your Chromebook, we recommend creating the recovery media with the latest version of Chrome OS and avoid using recovery media that may contain an older version of the operating system. -
Page 9: Views Of Inspiron 3181 2-In-1
Views of Inspiron 3181 2-in-1 Front Speakers Provide audio output. Right Headset port Connect headphones or a headset (headphone and microphone combo). Power and battery-status light Indicates the power state and battery state of the computer. Solid white—Power adapter is connected and the battery is charging. -
Page 10: Left
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. Base Left-click area Press to left-click. Touchpad Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click. Right-click area Press to right-click. Views of Inspiron 3181 2-in-1... -
Page 11: Display
Provides digital sound input for audio recording, voice calls, and so on. Bottom Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Views of Inspiron 3181 2-in-1... -
Page 12: Modes
Modes Notebook Tablet Stand Views of Inspiron 3181 2-in-1... -
Page 13: Tent
Tent Views of Inspiron 3181 2-in-1... -
Page 14: Specifications Of Inspiron 3181 2-In-1
Specifications of Inspiron 3181 2-in-1 Computer model Inspiron 3181 2-in-1 Dimensions and weight Table 3. Dimensions and weight Height: Front 20.75 mm (0.81 in) Rear 20.75 mm (0.81 in) Width 303.80 mm (11.96 in) Depth 207.90 mm (8.18 in) Weight (maximum) 1.44 kg (3.17 lb) -
Page 15: Chipset
Table 7. Ports and connectors specifications External: Two USB 3.1 Gen 1 ports Audio One Microphone/headphone/headset Combo port Video One HDMI-out 1.4 port Memory card reader One MicroSD-card slot Power adapter port One power-adapter port Security Noble lock Specifications of Inspiron 3181 2-in-1... -
Page 16: Communications
Bluetooth Bluetooth 4.2 Audio Table 10. Audio specifications Type High-Definition-Audio Controller Realtek ALC3256 Stereo conversion Supported Internal interface External interface Headset combo jack (stereo headphones/microphone-in) Speakers Supported Internal speaker amplifier Supported External volume controls Supported Specifications of Inspiron 3181 2-in-1... -
Page 17: Storage
Keyboard Dell Chromebook keyboards have a few extra features to help you browse the web effortlessly and efficiently. The keyboard contains a dedicated search key and a new row of web shortcut keys. A standard USB Windows keyboard can also be used with the Chromebook,... - Page 18 Go to the next page in browser history Reload current page Enter Immersive mode, which hides the tabs and launcher Enter Overview mode, which shows all windows Decrease screen brightness Increase screen brightness Mute Decrease the volume Increase the volume Specifications of Inspiron 3181 2-in-1...
-
Page 19: Camera
Camera Table 16. Camera specifications Number of cameras Type One HD fixed focus Location Front Sensor type CMOS sensor technology Resolution: Still image 1280 x 720 (HD) Video 1280 x 720 (HD) at 30 fps Specifications of Inspiron 3181 2-in-1... -
Page 20: Touchpad
100 mm (3.93 in) Vertical 55 mm (2.16 in) Touchpad This page contains information for Dell Chromebook touchpad gestures. The following table lists some gestures and actions supported by the Chromebook touchpad: Table 18. Touch pad gestures Touchpad gestures Gestures Explanation Simply move your finger across the touchpad. -
Page 21: Power Adapter
Temperature range: Operating 0°C to 40°C (32°F to 104°F) Storage –40°C to 70°C (–40°F to 158°F) Battery Table 20. Battery specifications Type 3-cell “smart” lithium-ion (42 WHr) Voltage 11.40 VDC Weight (maximum) 0.2 kg (0.44 lb) Specifications of Inspiron 3181 2-in-1... -
Page 22: Display
16~60°C : 3 hours • 46~60°C : 3 hours NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manger application. For more information on the Dell Power Me and My Dell on Manger see, https://www.dell.com/... -
Page 23: Video
3.0 W Anti-glare vs glossy finish Anti-finger Touch options Video Table 22. Integrated graphics specifications The following table provides the detailed integrated graphics specifications of Inspiron 3181 2-in-1. Controller External display support Memory size Memory type Intel HD Graphics One HDMI port... -
Page 24: Contacting Dell
Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Go to Dell.com/support.
