Summary of Contents for Aqualytic SensoDirect CD 19

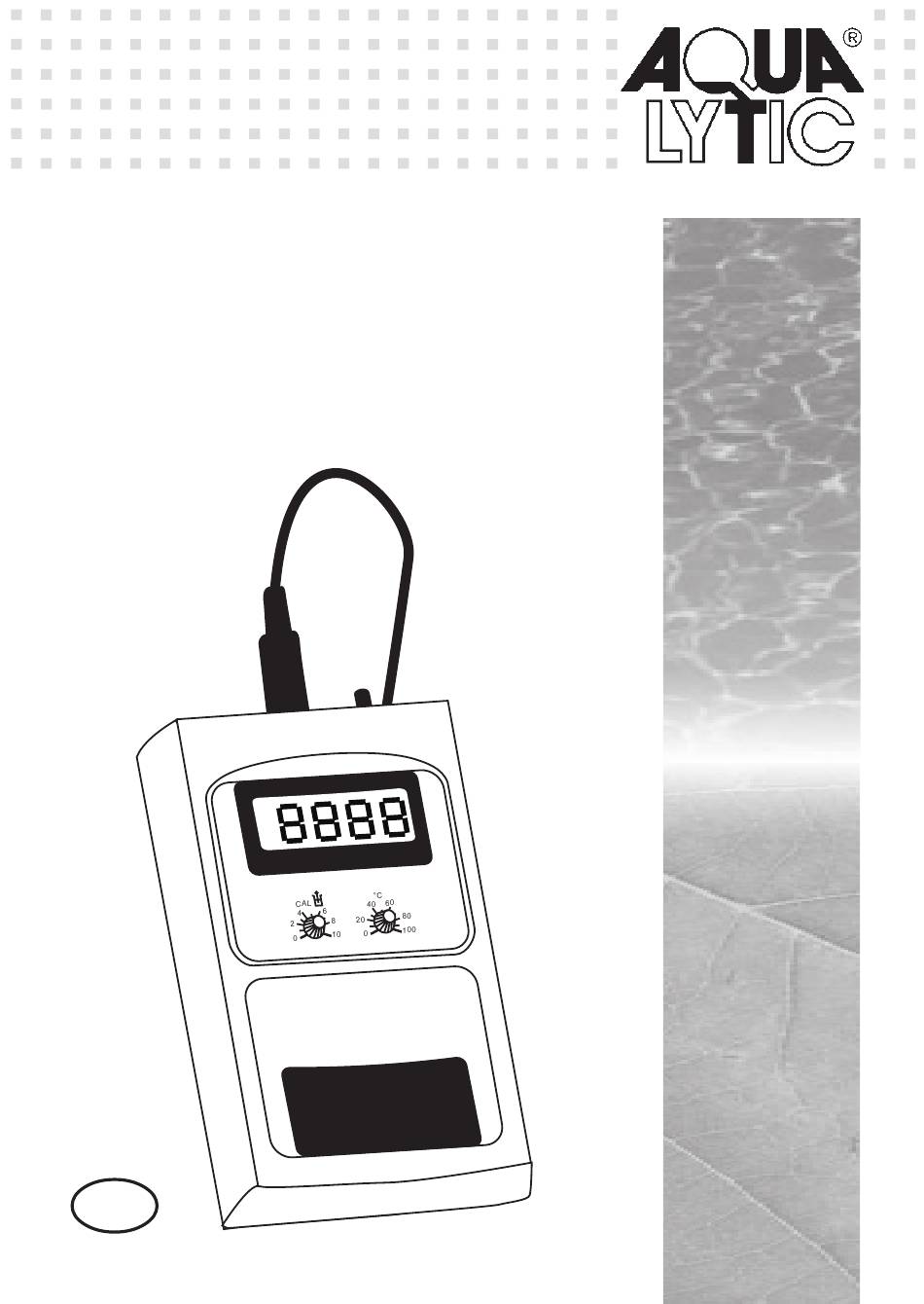

- Page 1 SensoDirect CD 19 Operating Instructions Conductivity Meter...
- Page 2 Schleefstraße 8 a 44287 Dortmund Deutschland declares that this product Product name: SensoDirect CD 19 with all optional items conforms to the following regulations: EN 61326 : 1997+A1: 1998+A2 : 2001 EN 55022 Class B : 1998 The product conforms to the regulations of the EMC Directive 89/336/EEC and 73/23/EEC.
-
Page 3: Table Of Contents
Contents Seite General description ............4 Products supplied ............4 Setting to work ..............4 Calibration ................ 4 Carrying out measurements ..........5 Overhaul and maintenance ..........6 Changing the battery ............6 Spare parts / accessories ..........6 Technical data ..............6 Short Instructions ............. -
Page 4: General Description
1. General Description The "SensoDirect" is a small, handy measurement device, which can be used anywhere where conduc- tivity has to be measured quickly and accurately. The unit is very easy to use and is fitted with a digital dis- play, reading to 2 decimal points. -
Page 5: Carrying Out Measurements
carefully and immerse it in the calibration solution, moving it gently to and fro so that any trapped air bubbles can escape through the side openings. Wait for some 15 to 20 seconds (until the display stabilizes) and then turn the left-hand knob (Adjust mS/cm) to set the appropriate figure. -
Page 6: Overhaul And Maintenance
6. Overhaul & Maintenance Conductivity electrodes do not generally deteriorate with age. However, their life and performance can be reduced by deposits, contamination or mechanical damage. It is therefore recommended that the electrode be cleaned from time to time in warm water, using a small brush with great care. -
Page 7: Technical Data
9. Technical Data Measurement range: 0 - 10,00 mS/cm Resolution: 0,01 mS Accuracy: +/- 2,5 % of range +/- 1 digit (Inst.) Electrode: PETP shaft; Electrode material: graphite Ambient conditions: 0 - 45 º C 0 - 80 % relative humidity (non-condensing) Power supply: 9 V pack;... -
Page 8: Short Instructions
9. Short Instructions General Instrument Range: 0.00 - 10.00 mS/cm Resolution: 0.01 mS/cm ON/OFF Accuaracy: ± 2.5 % F.S. ± 1 Digit (Instrument) Ambient 0 - 45°C Conditions: 0 - 80% rel. humidity (no condensing) °C Temperatur Sample Conditions: 0° - 80° C Battery: 9 V (IEC 6F22) CAL. - Page 9 Calibration Clean 25° 6.70 25° Adjust Adjust Display Temperature mS/cm °C 0.05 mol/l Clean Measurement Maintenance LOW BAT Don`t touch Remove Display Replace 6 screws 9 V Battery Typ IEC 6F22 Remove battery if instrument is unused for a long time.
- Page 10 9. Guarantee Information Warranty As the manufacturer of the unit and its accessories, the Tintometer Group extends a warranty of two years on new units to the end user from the date of pur- chase, on the condition that the unit is used and main- tained in the proper manner.
- Page 11 be repaired or remedied using spare parts of the ap- propriate quality, free of charge. Further claims, in particular for compensation for dam- age not affecting the unit itself, are excluded. The manufacturers warranty exists alongside the legal warranty rights of the end user and is not affected if his contract is with a third party.
- Page 12 ® AQUALYTIC QM-System Schleefstraße 12 Certificate No. 5394 D-44287 Dortmund DIN EN ISO 9001 Tel.: (+49) (0)2 31 / 9 45 10 - 755 Fax.: (+49) (0)2 31 / 9 45 10 - 750 Technical changes without notice Printed in Germany 08/04 sales@aqualytic.de...
